Main girders are fabricated,plate box in construction or standrad I-beam rolled steel sections bolted to end carriages
- Product Details
- {{item.text}}
Quick Details
-
Span:
-
7.5m-36m
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
JCYC
-
Weight (KG):
-
8000 kg
-
Product Name:
-
China supplier double girder bridge crane 25ton overhead crane
-
Lifting capacity:
-
Customized
-
Lifting height:
-
Customized
-
Lifting of load:
-
0-5m/min
-
Rail Distance:
-
1400-3100
-
Work Duty:
-
M4/M5
-
Control Method:
-
Wireless Remote Control
-
Power supply:
-
Under Customers Local Industry Voltage
-
OEM:
-
Accept
-
Keywords:
-
25ton overhead crane
Quick Details
-
Max. Lifting Height:
-
25M, 18m
-
Rated Lifting Moment:
-
25t
-
Max. Lifting Load:
-
25t
-
Span:
-
7.5m-36m
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
JCYC
-
Weight (KG):
-
8000 kg
-
Product Name:
-
China supplier double girder bridge crane 25ton overhead crane
-
Lifting capacity:
-
Customized
-
Lifting height:
-
Customized
-
Lifting of load:
-
0-5m/min
-
Rail Distance:
-
1400-3100
-
Work Duty:
-
M4/M5
-
Control Method:
-
Wireless Remote Control
-
Power supply:
-
Under Customers Local Industry Voltage
-
OEM:
-
Accept
-
Keywords:
-
25ton overhead crane
Product Description
Product Application
1.Component Unit: The crane is simply constructed by girder, end carriages, hoisting unit and elecrical control. The design is based on the principle of maximum functions with minimum component units and free maintenance.
2.The electric hoist trolley adopt CD/MD type steel wire rope electric hoist trolley, the standard traveling speed of crane is 0-20m/min, standard traveling speed of trolley is 0-20m/min. As for lifting speed, frequency control makes it has optional speed besides the standard speed to meet customers different requirement.

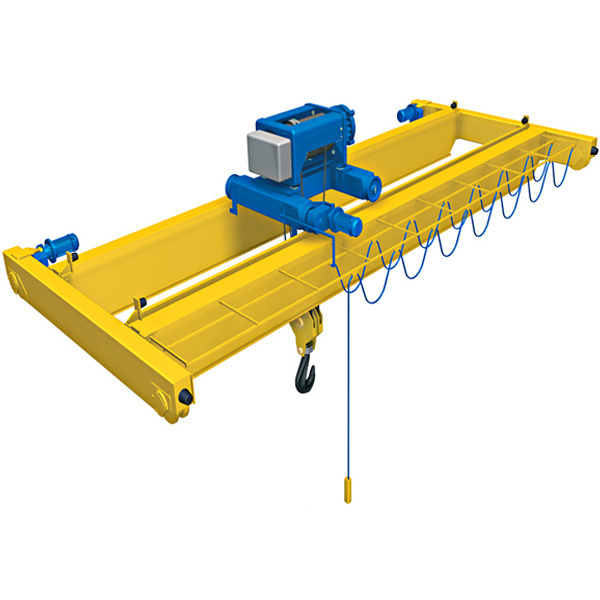

China supplier double girder bridge crane 25ton overhead crane
|
SPECIFICATIONS FOR ELECTRIC CRANE USING END CARRIAGE
|
|
|
|
|||
|
Capacity(t)
|
5
|
10
|
16/5
|
20/5
|
25/5
|
40/5
|
50/10
|
63/10
|
80/20
|
||||||||
|
Lifting speed(m/min)
|
0.8/5
|
1/6.3
|
.0.6
6/4
|
0.6
6/4 |
0.5
3/3.4 |
0
4.9 |
0
4.9 |
0
4
|
0
3.2
|
||||||||
|
Lifting height(mm)
|
6/9/12/15/18
|
|
|
|
|
|
|
|
|
||||||||
|
Span(m)
|
7.5--36
|
|
|
|
|
|
|
|
|
||||||||
|
Trolley rail distance
|
1400/1700/2000/2400/2700/3100
|
|
|
|
|
|
|
|
|
||||||||
|
Trolley wheel Dia(mm)
|
160
|
|
|
|
|
|
|
220
|
|
||||||||
|
End carriage wheel Dia(mm)
|
160
|
220
|
|
250
|
|
315
|
|
400
|
|
||||||||
1. Main girder
2. End carriage
END Carriage with two main beam webs, rigid connection with the main beam. When calibration crane, placed on the main beam webs, after adjustment good crane span, the main beam can be completed securely connecting plate welding. Main beam can be calibrated separately with end carriage transport, installation, just the main beam webs and end beams are bolted to complete the installation.
3. Electric wire rope hoist
Electric wire rope hoist has high lifting speed for faster handing; high efficiency due to 20% longer service life.
4. Electric box
Modular design, ease to install and maintain, reliable operation, fuse less circuitry, ducted wiring and compact terminals. Motor overload protection to prevent overloading.
Main Features
1. Effective and optimization design minimize the self-weight and ensures safety, stability and intensity.
2. European optimized design, low gravity, small wheel pressure, space saving and lifting weight upto 80t.
3. Flexible driving, extensive adaption, excellent frequency conversion control, stable operation, low maintenance and easy replacement.
4. Steel material standard is Fe37 or Fe52, web by the whole 40m CNC cutting to ensure curve smooth and precision molding.
5. Safety power conductor system and configuration phase protection function, with IP55 protection class.
6. First class lifting unites and free maintenance.
7. Convenient wireless remote control and easy ground control, additional driver is unnecessary. Pendant control: IP65, 500,000 times life.
8. High strength, good rigidity, light weight and excellent material ensure stability and convenient operation.
9. All parts are highly cost effective, highly standardized, with high accuracy, reliable quality and stable performance, also easy to install and freely combine.
10. Excellent performance, frequency control, easy and smooth operation meet various usages of all users.
Motor
Hook
Wheel
Wheel
C-Track
Double wire rope hoist
