Quick Details
-
Weight (KG):
-
660
-
Power (kW):
-
1.5
-
Force Range:
-
2KN-57KN
-
Riveting Capacity:
-
M10 nut M8 stud M6 standoff carbon steel
-
Throat Depth:
-
450mm
-
Throat Height:
-
400mm
-
Stroke Length:
-
200mm
-
Main Power:
-
1.5kW
-
Current:
-
4A
-
Power Supply:
-
380V 3 phase 5 core 50-60HZ
-
Size:
-
36"*43"*78"(930*1100*2000mm)
-
Weight:
-
660KG
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Marketing Type:
-
Hot Product
-
Brand Name:
-
ERSM
-
Weight (KG):
-
660
-
Power (kW):
-
1.5
-
Force Range:
-
2KN-57KN
-
Riveting Capacity:
-
M10 nut M8 stud M6 standoff carbon steel
-
Throat Depth:
-
450mm
-
Throat Height:
-
400mm
-
Stroke Length:
-
200mm
-
Main Power:
-
1.5kW
-
Current:
-
4A
-
Power Supply:
-
380V 3 phase 5 core 50-60HZ
-
Size:
-
36"*43"*78"(930*1100*2000mm)
-
Weight:
-
660KG

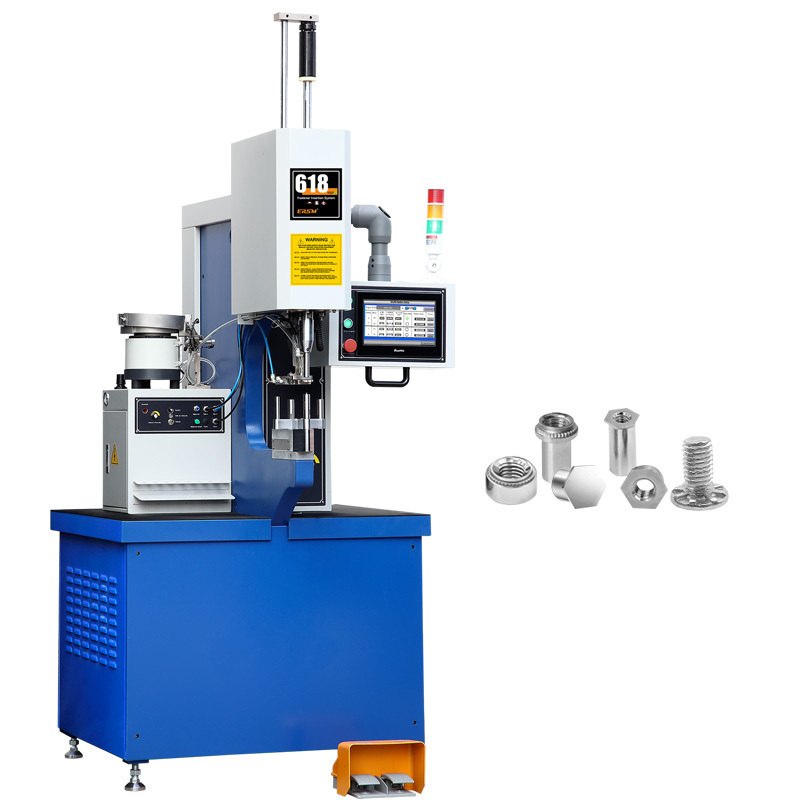

Product Features
-
6 ton (57KN)
ram force ,
18 inch(450mm)
throat depth.
- Auto force setting with
proportional valve
instead of manual pressure valve setting.
- Reliability/energy efficiency of a fully hydraulic machine.
- The ram force residence time is adjustable for processing high hardness materials.
- The ram return stroke is adjustable, and working pressure can be applied at any stroke point.
- Positive stop system.
- Automatic set pressure and fast programming.
- Laser locating (optional).
- Multi langeage operating system.
- J-Frame (optional).
-
ATIS
-Auto Turret Insertion System.
- MSTP-31 pcs/33 pcs/49pcs (optional).
- Modular autofeed system (optional).
Product Parameter
|
Model
|
618MSPe
|
|
Force
|
2KN - 57KN
|
|
Throat Depth
|
450mm
|
|
Throat Height
|
400mm
|
|
Stroke
|
200mm
|
|
Riveting Capacity
|
M10 nut M8 stud M6 standoff carbon steel
|
|
Main Power
|
1.5KW
|
|
Current
|
4A
|
|
Hydraulic Oil
|
46#/32#
|
|
Oil Tank Reawevoir
|
60L
|
|
Air Pressure
|
0.4-0.6Mpa
|
|
Power Supply
|
380V 3 phase 5 core 50-60HZ
|
|
Package Size
|
36"*43"*78"(930*1100*2000KG)
|
|
Weight
|
660kg
|
FAQ
1. Who are we?
A: We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%), WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Africa(3.00%),MidEast(2.00%). There are total about 21-50 people in our office.
2. Why should you buy from us not from other suppliers?
A: RSM MACHINERY CO.LTD is an enterprise specializing in Resource Sheet Metal Joint solution.Specializing in Inserting, Clinching, Punching, Riveting, Spot welding, tapping , assembling and all kinds of rivet & welding fasteners.
3. Is there CE certification?
A: Yes,we have
4.Which payment terms you can accept?
A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation.
5.Which shipping way can you provide?
A: We can provide shipping by sea, by air, by express and etc according to customer requirements.
6.How to place order?
A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.
7.Do you have an inspection procedure for the product?
A: Yes, We have a strict inspection of product quality and packing.
8.Can we be your agent?
A: Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.
