Quick Details
-
Dimension (L*W*H):
-
645*470*225mm
-
Weight:
-
42KG
-
Protection Class:
-
IP20
-
Product name:
-

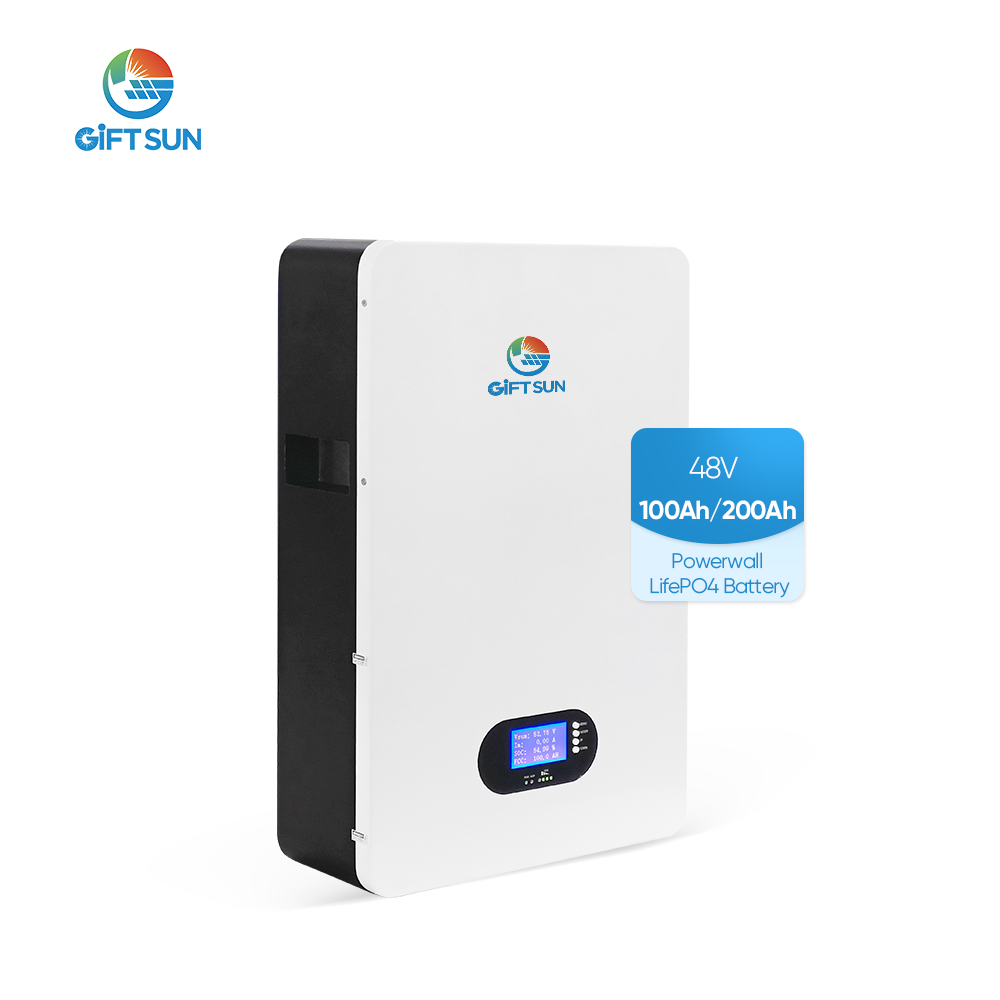

Wall-Mount LifePo4 Battery
-
Voltage:
-
48
-
Communication:
-
CAN/RS485
-
Type:
-
LiFePO4
-
Capacity:
-
100Ah, 200ah
-
Warranty:
-
5 Years
-
Cycles:
-
6000 times
-
Protection Level:
-
IP20
-
Certification:
-
CE/TUV/CEC/UN38.3/IEC62040
Quick Details
-
Model Number:
-
GS-AY48V-100Ah/200Ah
-
Brand Name:
-
Gift sun
-
Place of Origin:
-
Anhui, China
-
Dimension (L*W*H):
-
645*470*225mm
-
Weight:
-
42KG
-
Protection Class:
-
IP20
-
Product name:
-
Wall-Mount LifePo4 Battery
-
Voltage:
-
48
-
Communication:
-
CAN/RS485
-
Type:
-
LiFePO4
-
Capacity:
-
100Ah, 200ah
-
Warranty:
-
5 Years
-
Cycles:
-
6000 times
-
Protection Level:
-
IP20
-
Certification:
-
CE/TUV/CEC/UN38.3/IEC62040
Products Description
Specifications
|
Wall-Mount LifePo4 Battery
|
|
|
||
|
Battery Style
|
48/100Ah
|
48/200Ah
|
||
|
Energy
|
5.12kwh
|
10.24kwh
|
||
|
Nominal Voltage
|
48V
|
48V
|
||
|
Rated Capacity
|
100Ah
|
200Ah
|
||
|
End of Charge Voltage
|
54V
|
54V
|
||
|
End of discharge Voltage
|
39V
|
39V
|
||
|
Standard Charge Current
|
50A
|
50A
|
||
|
Max.Charge Current
|
100A
|
100A
|
||
|
Standard Disharge Current
|
100A
|
100A
|
||
|
Max. Disharge Current
|
100A
|
100A
|
||
|
Max.Peak Current
|
200A
|
200A
|
||
|
Communication
|
Quick plug terminal
|
|
||
|
Communication Interface
|
RS485/CAN
|
|
||
|
Size
|
770*520*90mm
|
850*466*145mm
|
||
|
Weight
|
42kg
|
90kg
|
||
|
Work Temperature Range
|
Charge: 0℃-50℃
Discharge:-15℃-60℃
|
|
||
