Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sinotech
-
Dimension(L*W*H):
-
25000x1700x2300mm
-
Power (kW):
-
75
-
Weight:
-
15000 KG
-
(mm) Max. Product with:
-
600
-
Max. Product height(mm):
-
150
-
Extruder model:
-
SNJZ80/156
-
Vacuum pump:
-
7.5kw*2+5.5kw*2
-
Water pump:
-
4kw*1+2.2kw*1
-
Hual-off motor:
-
5.5kw*2
-
Cutter motor:
-
3kw
-
Marketing Type:
-
New Product 2022
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
36:1
-
Screw Speed (rpm):
-
70 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sinotech
-
Dimension(L*W*H):
-
25000x1700x2300mm
-
Power (kW):
-
75
-
Weight:
-
15000 KG
-
(mm) Max. Product with:
-
600
-
Max. Product height(mm):
-
150
-
Extruder model:
-
SNJZ80/156
-
Vacuum pump:
-
7.5kw*2+5.5kw*2
-
Water pump:
-
4kw*1+2.2kw*1
-
Hual-off motor:
-
5.5kw*2
-
Cutter motor:
-
3kw
-
Marketing Type:
-
New Product 2022
Main Features

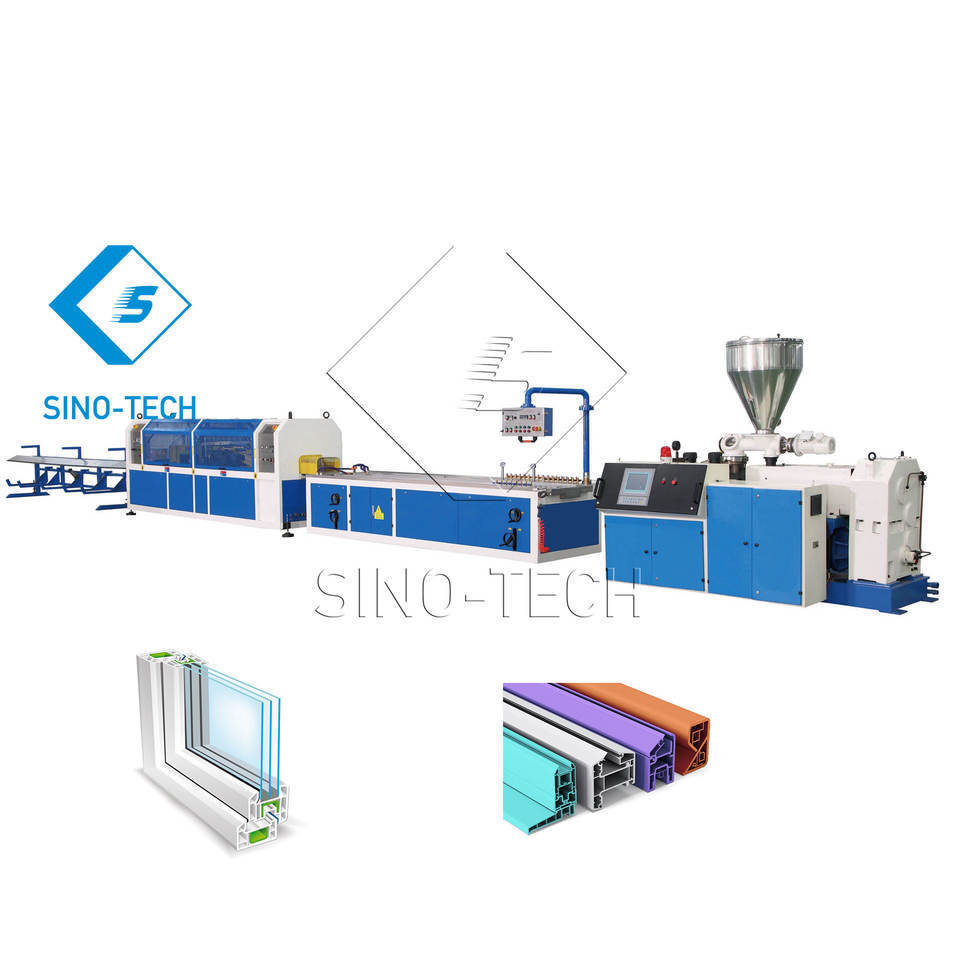

Pvc door window profile production line upvc profile making machine
PVC window and door profile extrusion line Application:
Window profile, door profile, ceiling wall panel, cable trunking fencem pvc skirting,PVC construction material profile...
Materials: PVC+ calcium powder+wood powder+other additives.
Production Flow:
Material →Heating Cooling Mixer →Material Feeding →Conical Twin Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration
Table →Printer → Haul-off Unit →cutter →stacker
PVC window and door profile extrusion line Application:
Window profile, door profile, ceiling wall panel, cable trunking fencem pvc skirting,PVC construction material profile...
Materials: PVC+ calcium powder+wood powder+other additives.
Production Flow:
Material →Heating Cooling Mixer →Material Feeding →Conical Twin Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration
Table →Printer → Haul-off Unit →cutter →stacker
|
Main Technical Parameter
|
|
|
|
|
|
|
||||||
|
model
|
YF180
|
YF240
|
YF300
|
YF400
|
YF500
|
YF600
|
||||||
|
(mm)
Max. Product with |
180
|
240
|
300
|
400
|
500
|
600
|
||||||
|
Max. Product height(mm)
|
100
|
100
|
150
|
150
|
150
|
150
|
||||||
|
Extruder model
|
SNJZ51/105
|
SNJZ65/132
|
SNJZ65/132
|
SNJZ80/156
|
SNJZ80/156
|
SNJZ80/156
|
||||||
|
Vacuum pump
|
5.5kw*2
|
5.5kw*3
|
5.5kw*4
|
5.5kw*4
|
5.5kw*4
|
7.5kw*2+5.5kw*2
|
||||||
|
Water pump
|
4kw*1
|
4kw*1
|
4kw*1+2.2kw*1
|
4kw*1+2.2kw*1
|
4kw*1+2.2kw*1
|
4kw*1+2.2kw*1
|
||||||
|
Hual-off motor
|
1.1kw*2
|
3kw
|
3kw
|
2.2kw*2
|
2.2kw*2
|
5.5kw*2
|
||||||
|
Cutter motor
|
1.5kw
|
2.2kw
|
2.2kw
|
2.2kw
|
2.2kw
|
3kw
|
||||||
Details
Floor Plan
Final Products
