Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
guangyue
-
Voltage:
-
220v/380v/440v/460v as per customer's request
-
Dimension(L*W*H):
-
3300*1650*1660mm
-
Power (kW):
-
40
-
Weight (KG):
-
8000 KG
-
Rolls bearing:
-
dry grease lubricate/thin oil lubrication
-
Pedestal:
-
cast or weld
-
Three kind bush:
-
nylon bush copper bush ball bearing
-
Rolls:
-
chilled cast iron roll
-
max distance regulation (mm):
-
10mm
-
Compound Feeding Capacity:
-
50-60 Kg
-
Function:
-
Compound Mixing
-
Friction ratio of rollers:
-
1:1.4 Rubber Sheet Making
-
Feature:
-
High Production Efficiency
-
End product:
-
Rubber Sheet
Quick Details
-
Diameter of Roll(mm):
-
400 mm
-
Length of Roll(mm):
-
1000 mm
-
Cooling Mode:
-
WATER
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
guangyue
-
Voltage:
-
220v/380v/440v/460v as per customer's request
-
Dimension(L*W*H):
-
3300*1650*1660mm
-
Power (kW):
-
40
-
Weight (KG):
-
8000 KG
-
Rolls bearing:
-
dry grease lubricate/thin oil lubrication
-
Pedestal:
-
cast or weld
-
Three kind bush:
-
nylon bush copper bush ball bearing
-
Rolls:
-
chilled cast iron roll
-
max distance regulation (mm):
-
10mm
-
Compound Feeding Capacity:
-
50-60 Kg
-
Function:
-
Compound Mixing
-
Friction ratio of rollers:
-
1:1.4 Rubber Sheet Making
-
Feature:
-
High Production Efficiency
-
End product:
-
Rubber Sheet

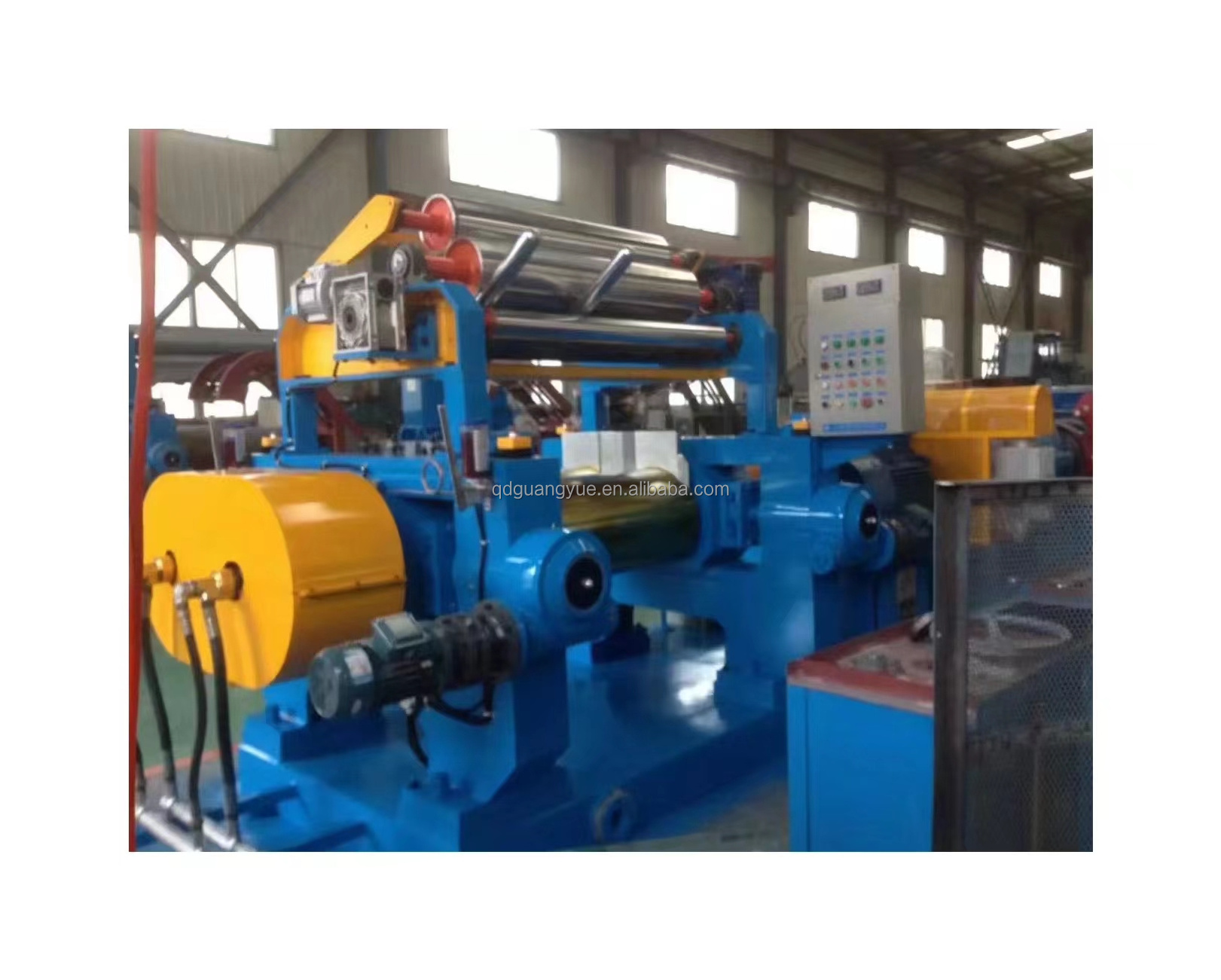

Two roll open rubber mixing mill machine
parameters of Two roll open rubber mixing mill machine
|
Model |
XK-160 |
XK-250 |
XK-300 |
XK-360 |
XK-400 |
XK-450 |
XK-560 |
|
|
Diameter of rolls(mm) |
160 |
250 |
300 |
360 |
400 |
450 |
560 |
|
|
Working length of rolls(mm) |
320 |
620 |
750 |
900 |
1000 |
1200 |
1530 |
|
|
Linear speed of front roll(m/min) |
11.24 |
14.4 |
15.1 |
16.25 |
18.65 |
24.5 |
29.09 |
|
|
Speed ratio of front & rear roll |
1:1.35 |
1:1.17 |
1:1.27 |
1:1.25 |
1:1.27 |
1:1.27 |
1:1.2 |
|
|
Max. roll gap(mm) |
4.5 |
8 |
8 |
10 |
10 |
15 |
20 |
|
|
Feeding capacity per batch(kg) |
1-2 |
10-15 |
15-20 |
20-25 |
18-35 |
25-50 |
50-65 |
|
|
Driving motor power(kw) |
7.5 |
18.5 |
22 |
30 |
37 |
55 |
75 |
|
|
Bearing body structure |
Rolling bearing/nylon bushing/copper bushing |
|||||||
|
Lubrication mode |
Grease/thin oil pump |
|||||||
|
Gap adjusting mode |
Manual/electric |
|||||||
|
Overall dimension(mm) |
L |
1140 |
2900 |
3580 |
3780 |
4250 |
5000 |
5900 |
|
W |
900 |
1500 |
1550 |
1850 |
1850 |
2280 |
2180 |
|
|
H |
1370 |
1550 |
1695 |
1740 |
1760 |
1850 |
2000 |
|
|
Weight(ton) |
1 |
3.2 |
5.2 |
6.5 |
7.3 |
12.5 |
22 |
|
100% Real Manufacturer, Welcome to visit us sincerely.
If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.
1.XK-160 lab rubber mixing mill . Mainly used for lab use
2. xk-400 rubber mixing mill.production is about 350 kg/h . From this model , we
begin distiguish configuration . NYLON , COPPER , ROLLER BALL BEARING.
3.XK-450 rubber mixing mill . two configuration , stock blender is choosed . 500 kg/h
4.XK-560 . two configuration , stock blender . production is 500 KG/H
PARTS DISPLAY
1. Reducer (three configuration can choose)
2.Rollers
3. Water cooling system
4.nylon bush and bearing bush
5.Rolles gap adjust system
About the parts ,Just choose which type you want
Customers
CERTIFICATE
Version : xk-160 xk-230 xk-250 xk-300 xk-360 xk-400 xk-450 xk-560
Certificate and identification : ISO 9001 , CE , SGS
Application
:
The mill is used for rubber plasticating, mixing, warming and sheeting.
General design
:
1. The mill consists mainly for rolls, frame, bearing, roll nip adjusting, screw, heating and cooling device, emergency stop, lubrication system and such sections as electrical controls and, etc.
2. The main electric motor arrives the front and rear rolls to rotate oppositely through reduar, driving geras and friction gears.
Features
:
1. The rolls are made of chilled alloyed castiron. Their working surfaces are of high hardness and wear-resistant. The working temperature of the bored roll is controllable by steam, cooling water or oil that pass through them thus, to meet the requirements of milling process.
2. Roll nip adjustment is realized by hand or electricity which can obtain high accuracy and sensitivity
Others
Roller bearing can be divided into 3 kinds, nylon bush , bearing bush and copper bush .
Nip adjustment can be divided into manual and electric .
Stock blender can be added in light of your needs
We can produce different size according to your parameter requirement. and we allow proper discount according to the quantity you order
