Quick Details
-
Size:
-
12500*2500*1550 mm
-
Place of Origin:
-
Shandong, China
-
Keywords:
-
Semi Trailer
-
Suspension:
-
Mechanical Suspension Air Suspension
-
Tire:
-
12R22.5
-
Landing Gear:
-
Standard 28Ton
-
Color:
-
Custom's Requirement
-
King pin:
-
2" (50mm) or 3.5" (90mm) JOST
-
Loading capacity:
-
30T~ 60T
-
Twist Locks:
-
12uints
-
Application:
-
Transport Construction Machinery
-
Leaf Spring:
-
90(W)mm*13(Thickness)mm*10(Layer)
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
>30000 kg
-
Brand Name:
-
GJ
-
Size:
-
12500*2500*1550 mm
-
Place of Origin:
-
Shandong, China
-
Keywords:
-
Semi Trailer
-
Suspension:
-
Mechanical Suspension Air Suspension
-
Tire:
-
12R22.5
-
Landing Gear:
-
Standard 28Ton
-
Color:
-
Custom's Requirement
-
King pin:
-
2" (50mm) or 3.5" (90mm) JOST
-
Loading capacity:
-
30T~ 60T
-
Twist Locks:
-
12uints
-
Application:
-
Transport Construction Machinery
-
Leaf Spring:
-
90(W)mm*13(Thickness)mm*10(Layer)
|

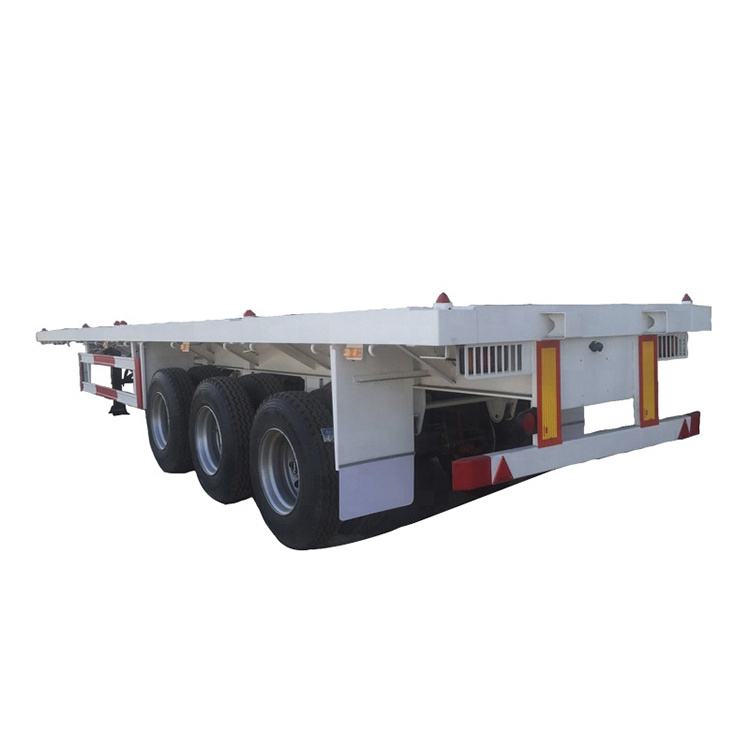

Trailer Model
|
Flatbed semi trailer
|
|
|
Dimension
|
12500*2500*1550(L*W*H)(mm)
|
|
|
Curb Weight
|
7500kg
|
|
|
Capacity
|
60000 kg
|
|
|
Axle
|
3 axles,13T,BPW /FUWA/ China other brand(optional)
|
|
|
Suspension
|
Mechanical suspension/Air suspension
|
|
|
Tire Type
|
12R22.5/12.00R20/315-85R22.5/Other specification(optional)
|
|
|
Traction Pin
|
50# / 90# JOST
|
|
|
Brakes
|
Dual line braking system
|
|
|
Landing Gear
|
28T JOST
|
|
|
Thickness of Floor Plate
|
3mm
|
|
|
Main Beam
|
The height of the beam is 500 mm, upper plate is 14 mm,lower plate is 16 mm, middle plate is 8 mm.
|
|
|
Material of Main Beam
|
Steel Q345
|
|
|
KEY ACCESSORIES
|
|
|
|
Twist Lock Quantity
|
12 pcs
|
|
|
ELECTRICAL&PAINT
|
|
|
|
Electrical System
|
Voltage: 24v
|
|
|
|
Receptacle: 7 ways (7 wire harness)
|
|
|
Packing
|
Nude, Polish with wax before shipping
|
|
|
Colour
|
As customer’s requirement
|
|
We are based in China and have a global perspective.
We always adhere to the business principle of
honesty and trustworthiness
,
providing customers with
the best trailer matching solutions and high-quality products
.
With excellent products and good customer reputation, our products have been exported to
more than 70 countries and regions
.
At present, our company is
in a stage of rapid development
, and we are willing to make friends from all over the world and seek common development. At the same time, we sincerely welcome friends and partners from all over the world to
visit our group and discuss business
.
Our semi-trailer design team is composed of
10 professional engineers with over 20 years of relevant work experience
,
who have been deeply involved in the trailer industry for
over 20 years
.
The company's
main products
include: powder material semi-trailer, oil tank semi-trailer, dump semi-trailer, flatbed semi-trailer, lowbed semi-trailer, fence semi-trailer, sidewall semi-trailer, box semi-trailer, car carrier semi- trailer, and semi-trailer accessories.
Our group's two trailer factories has an annual production capacity of over 8000 trailers
.
We can accept
OEM and ODM orders
of various trailers and semitrailers.
Q1. Dose your company has your own factory?
A:Yes,we have a factory ourself which is in this business for 15 years in China.Our factory is in the trailer base Liangshan, Shandong,China.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from
