The perfect combination of C-type pin and D-type pin is more compact and firmer than other bars.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Dingchang
-
Model Number:
-
DCG-FIP01
-
Surface Treatment:
-
sand blast/Smooth/Mat/Paint or Customer request
-
Product name:
-

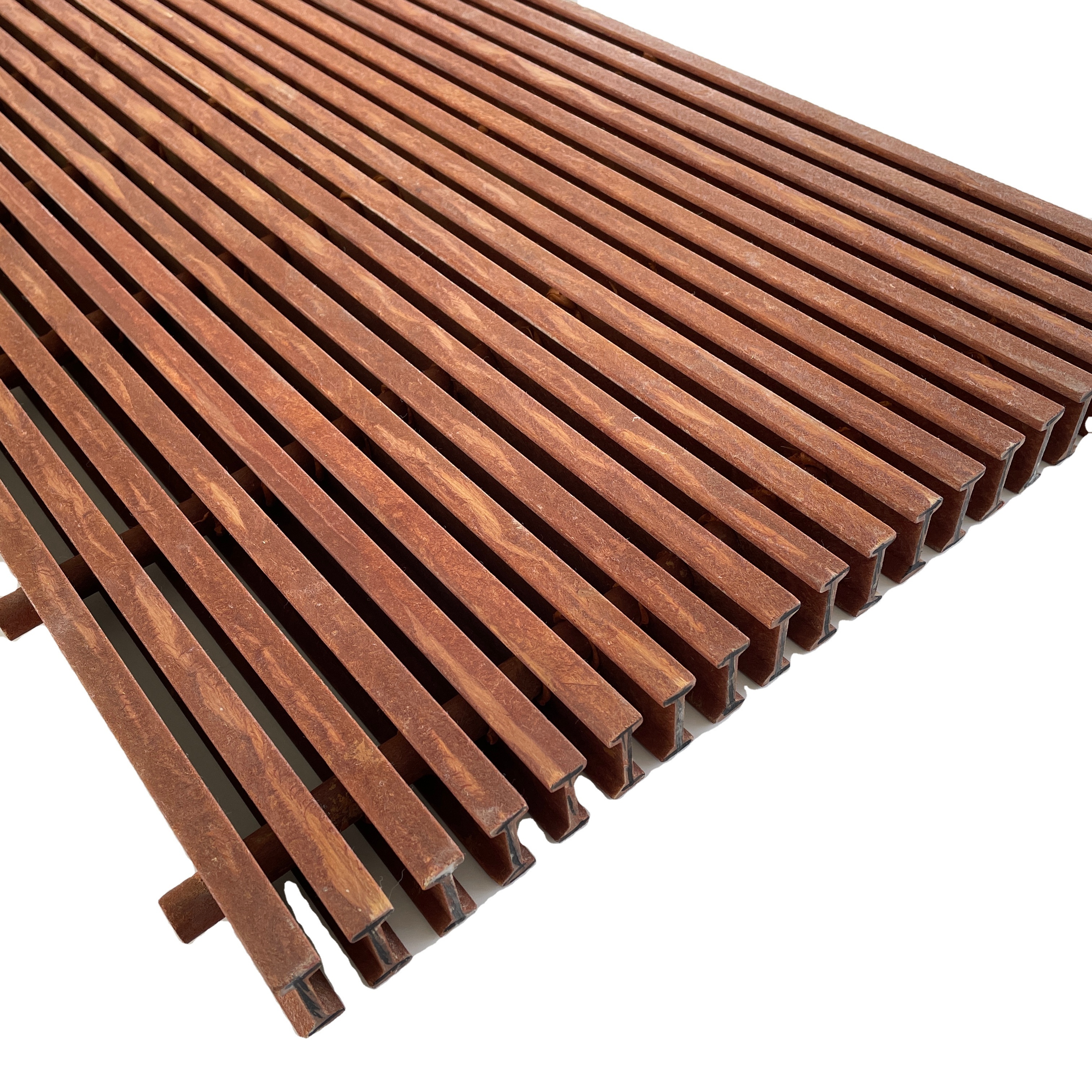

Fibre Phenolic Pultruded Grating
-
Material:
-
fiber reinforced polymer
-
Color:
-
Customization
-
Keywords:
-
Fibre Phenolic Pultruded Grating
-
Feature:
-
High Strength
-
Type:
-
FRP Composite Sheet
-
Thickness:
-
25,38,50
-
Usage:
-
Platform
-
Packing:
-
Wooden pallet ,Steel pallet or custom-made
-
Advantage:
-
Higher Strength,Fire prevention
Quick Details
-
Application:
-
Personnel walkways, catwalks ladders, platforms
-
Technique:
-
Pultrusion
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Dingchang
-
Model Number:
-
DCG-FIP01
-
Surface Treatment:
-
sand blast/Smooth/Mat/Paint or Customer request
-
Product name:
-
Fibre Phenolic Pultruded Grating
-
Material:
-
fiber reinforced polymer
-
Color:
-
Customization
-
Keywords:
-
Fibre Phenolic Pultruded Grating
-
Feature:
-
High Strength
-
Type:
-
FRP Composite Sheet
-
Thickness:
-
25,38,50
-
Usage:
-
Platform
-
Packing:
-
Wooden pallet ,Steel pallet or custom-made
-
Advantage:
-
Higher Strength,Fire prevention
Phenolic Grating is a dramatic innovation for markets where fire safety is a major concern; offering superior corrosion resistance, resistance to high temperatures, low smoke and low toxic fume emissions1.
The nonflammable nature of phenolics enable this grating to withstand higher temperatures
than traditional FRP products for extended periods of time without major structural damage.
than traditional FRP products for extended periods of time without major structural damage.
C-type pin and D-type pin
|
Series
|
%Open
|
Approx. Weight
kg/㎡ (lbs/sq ft) |
Uniform Load
kN/㎡*
(lbs/sq ft)
|
Concentrated Load
kN/m** (lbs/ft) |
|
Ⅰ-6000 38mm
（1-1/2"）
|
60%
|
16.8
(3.4)
|
15.6
(326)
|
10.9
(749)
|
|
Ⅰ-5500 38mm
（1-1/2"）
|
55%
|
18.9
(3.9)
|
17.6
(367)
|
12.3
(842)
|
|
Ⅰ-4800 38mm
（1-1/2"）
|
48%
|
21.5
(4.4)
|
20.2
(422)
|
14.1
(967)
|
|
Ⅰ-4000 38mm
（1-1/2"）
|
40%
|
25.4
(5.2)
|
23.5
(490)
|
16.4
(1123)
|
|
Ⅰ-6000 45mm
（1-3/4"）
|
60%
|
19.0
(3.9)
|
25.5
(532)
|
17.8
(1221)
|
|
Ⅰ-5500 45mm
（1-3/4"）
|
55%
|
21.4
(4.4)
|
28.7
(599)
|
20.1
(1374)
|
|
Ⅰ-4800 45mm
（1-3/4"）
|
48%
|
24.4
(5.0)
|
32.9
(688)
|
23.0
(1578)
|
|
Ⅰ-4000 45mm
（1-3/4"）
|
40%
|
28.8
(5.9)
|
38.3
(799)
|
26.7
(1832)
|
* Uniform load to produce a deflection of 6.4mm
(0.25")
at midspan. *
* Concentrated load to produce a deflection of 6.4mm
(0.25")
at midspan.
Load Deflection Tables [Based on a clear span of 1120mm (44")]
Personnel access in tunnels and weather decks
Offshore oil Production Platforms
Catwalks ladders
