Quick Details
-
Place of Origin:
-
China
-
Marketing Type:
-
Hot Products 2024
-
Weight (KG):
-
10 kg
-

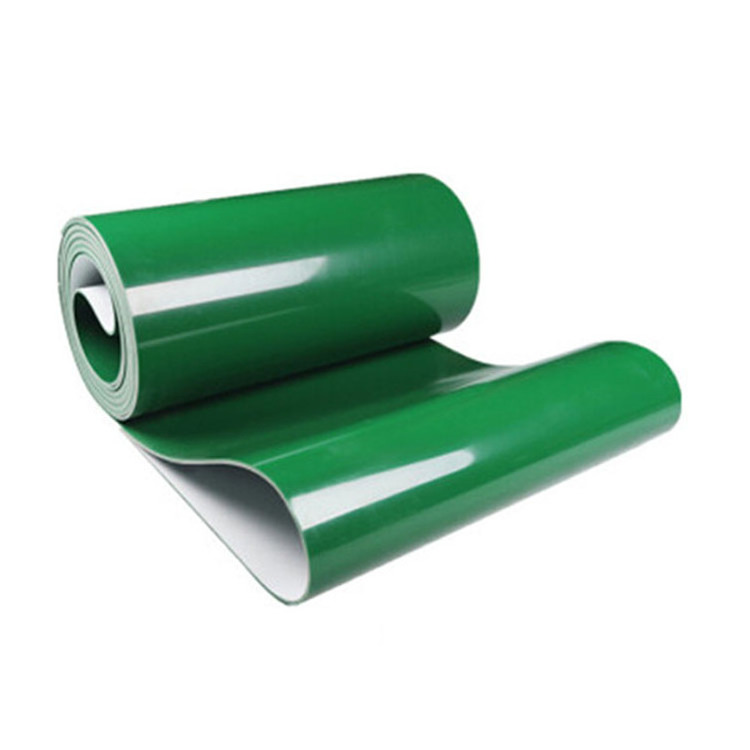

Product Name:
-
PVC Rubber Conveyer Belt
-
Application:
-
Chemical
-
Feature:
-
Tear-Resistant
-
Standards:
-
ISO CE
-
Advantage:
-
High-quality
-
Fabric type:
-
PVC
-
OEM/ODM:
-
Accept
-
Surface:
-
Glossy
-
Certification:
-
ISO CE
Quick Details
-
Power:
-
Other
-
Warranty:
-
1 Year
-
Width or Diameter:
-
Other
-
Place of Origin:
-
China
-
Marketing Type:
-
Hot Products 2024
-
Weight (KG):
-
10 kg
-
Product Name:
-
PVC Rubber Conveyer Belt
-
Application:
-
Chemical
-
Feature:
-
Tear-Resistant
-
Standards:
-
ISO CE
-
Advantage:
-
High-quality
-
Fabric type:
-
PVC
-
OEM/ODM:
-
Accept
-
Surface:
-
Glossy
-
Certification:
-
ISO CE
Products Description
It can make various kinds of bulk materials to be conveyed continuously at any inclination angle from 0 to 90 degrees, with large conveying inclination, wide range of use and small footprint. It has the features of reducing civil construction investment, low maintenance cost and large conveying capacity, and solves the conveying angle that cannot be reached by common conveyor belt or pattern conveyor belt. Corrugated edge conveyor belt can be designed as a complete conveying system according to requirements, avoiding intermittent conveying and complex conveying lifting system.
Corrugated edge baffle conveyor belt can convey various bulk materials from chemical, grain, etc. along horizontal, inclined, vertical and variable angle directions. The material size is not limited.
Conveyor Belt With
Sidewall
1、Imported A+ raw materials, reasonable formula, no calcium carbonate, etc., the quality is excellent
2、Patented seamless skirt, seamless skirt as a whole, solving the problem of hiding material leakage
3、Imported vulcanization equipment, skirt solid and durable, no delamination
Conveyor belt with
baffles
Anti-slip and oil resistant, special surface treatment to improve anti-slip performance oil resistant, suitable for a variety of working environments, with good oil and water resistance.
High abrasion resistance, using high quality raw materials, resistant to wear and tear, life increased by 45%.
Conveyor belt with
guide strip
The baffle skirt guide is the most common processing, the role of the baffle is for large slope conveying, the skirt is to prevent side leakage and the guide is to prevent product runaway accurate conveying, this type of processing is chosen by many customers.
Perforation
of conveyor belts
Conveyor belt with
sponge
Recommend Products
guide strip
Conveyor belt
S
idewall
Conveyor
belts
Chevrom V-belts
Diamond pattern conveyor belt
Baffles
Conveyor belt
Spray Plastic Fence
Product Paramenters
|
Thickness(mm)
|
Product Structure
|
Working temperature
(℃)
|
Weight
(Kg/m
2
)
|
Tensile strength
|
Tensile strength
|
|
1.0
|
one cloth and one glue
|
-20/+80
|
1.1
|
≥80
|
≥8
|
|
2.0
|
Two cloths and two glues
|
|
2.5
|
≥100
|
≥8
|
|
3.0
|
Two cloths and two glues
|
|
3.7
|
≥100
|
≥8
|
|
4.0
|
Three cloths and three glues
|
|
4.82
|
≥150
|
≥12
|
|
5.0
|
Three cloths and three glues
|
|
6
|
≥150
|
≥12
|
|
6.0
|
Four cloth four rubber
|
|
6.1
|
≥350
|
≥20
|
|
7.0
|
Four cloth four rubber
|
|
7.6
|
≥450
|
≥20
|
|
8.0
|
Four cloth five rubber
|
|
8.6
|
≥680
|
≥35
|
|
Sidewall
|
|
|
|
|
|
baffle
|
|
|
|
||||||||
|
Height (mm)
|
Waveform peak (mm)
|
Color
|
Material
|
Hardness
|
Minimum roller diameter (mm)
|
Height (mm)
|
Court width*height
|
Material
|
Hardness
|
||||||||
|
30
|
40
|
White/green/black (customized)
|
PVC
|
60
|
120
|
20
|
20+20
|
PVC
|
60
|
||||||||
|
40
|
|
|
|
|
120
|
30
|
25+30
|
|
|
||||||||
|
50
|
|
|
|
|
120
|
40
|
25+40
|
|
|
||||||||
|
60
|
|
|
|
|
150
|
50
|
25+50
|
|
|
||||||||
|
70
|
|
|
|
|
160
|
60
|
25+60
|
|
|
||||||||
|
80
|
|
|
|
|
180
|
70
|
25+70
|
|
|
||||||||
|
90
|
|
|
|
|
200
|
80
|
25+80
|
|
|
||||||||
|
100
|
|
|
|
|
200
|
90
|
25+90
|
|
|
||||||||
|
|
|
|
|
|
|
100
|
25+100
|
|
|
||||||||
