Quick Details
-
Size:
-
2'x2',4'x4'
-
Thickness:
-
6.5mm-16mm
-
Color:
-
Black,white
-
Material:
-
Wet formed mineral fiber with latex paint finish
-
Fire:
-
Class A
-
RH:
-
90%RH per ASTM C637
-
Mold resistance:
-
Tested with additive per ASTM D3273
-
Recycled content:
-
63%(51%pre-consumer,12% post-consumer)
-
Indovor air quality:
-
Low VOC and no added formaldehyde
-
Density:
-
240-280 KGS/M3
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
CHINATOP
-
Model Number:
-
MFC
-
Size:
-
2'x2',4'x4'
-
Thickness:
-
6.5mm-16mm
-
Color:
-
Black,white
-
Material:
-
Wet formed mineral fiber with latex paint finish
-
Fire:
-
Class A
-
RH:
-
90%RH per ASTM C637
-
Mold resistance:
-
Tested with additive per ASTM D3273
-
Recycled content:
-
63%(51%pre-consumer,12% post-consumer)
-
Indovor air quality:
-
Low VOC and no added formaldehyde
-
Density:
-
240-280 KGS/M3

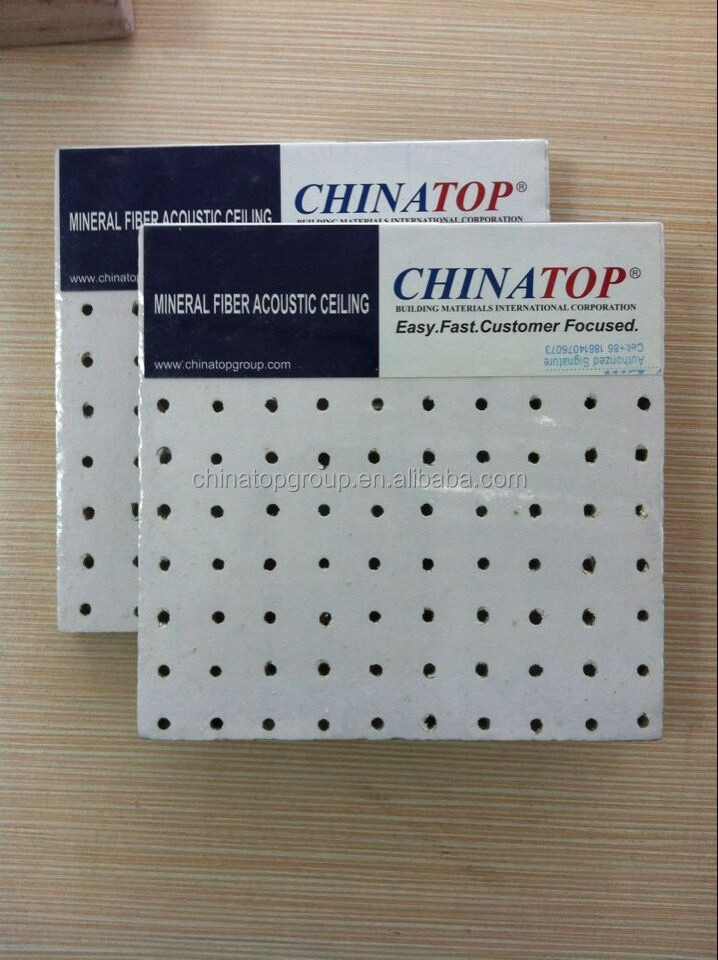

China Top Mineral Fiber Ceiling Tiles
Typical Application Areas:
- Hotel Lobbies and Corridors
- Offices and conference rooms
- Auditoriums
- Hospitals and other Public Site
- Department stores
- Super Malls and schools
Technical Data:
- Density (kgs/m3): 240-280kgs/m3
- NRC: ≥0.55
- Fire resistance: class A qualification (GB8625-88 STIPULATION)
- Moisture rate (%): ≤3
- Light reflect: 0.60-0.80
- Bending strength(N): ≥60
- Sagging resistant properties:≤0.35mm
- HR: ≥90%
Textures for Mineral Fiber Ceilings:
- Astral Series: MA01, MA02, MA03,MA04,
- Perforated Series: MP01, MP02,MP03
- Fissured Series: MF01, MF02
- Sand Series: MS01, MS02
- Ffiberglass tissue cover surface
- Customized textures are also welcome
Edge Detail and Type:
- Square edge for 15mm & 24mm T-Grid
- Tegular edge for 15mm & 24mm T-Grid
- Revealed edgar for 24mm T-Grid
- Micro-lock tegular edge for 15mm T-Grid
- Concealed A & B
-
Loading Capacity for Low-density Mineral Fiber Ceiling:
|
STANDARD SIZE |
THICKNESS / (mm ) |
PACKAGING |
QUANTITY / M2 / 1X40HQ |
|
2’ X2’ ; 595mm*595mm; |
12 mm |
12 PCS / CTN |
5520 M2 / 1278 CTNS |
|
2’ X2’ ; 595mm*595mm; |
13 mm |
10 PCS / CTN |
5011 M2 / 1392 CTNS |
|
2’ X2’ ; 595mm*595mm; |
14 mm |
10 PCS / CTN |
4600.8 M2 / 1278 CTNS |
|
2’ X2’ ; 595mm*595mm; |
15 mm |
10 PCS / CTN |
4392 M2 / 1220 CTNS |
|
2’ X2’ ; 595mm*595mm; |
18 mm |
10 PCS / CTN |
3506.4 M2 / 974 CTNS |
