Quick Details
-
Brand Name:
-
Deguang
-
Weight:
-
3800 KG, 4500kg
-
Dimension(L*W*H):
-
4200*2200*1800 mm
-
Product name:
-

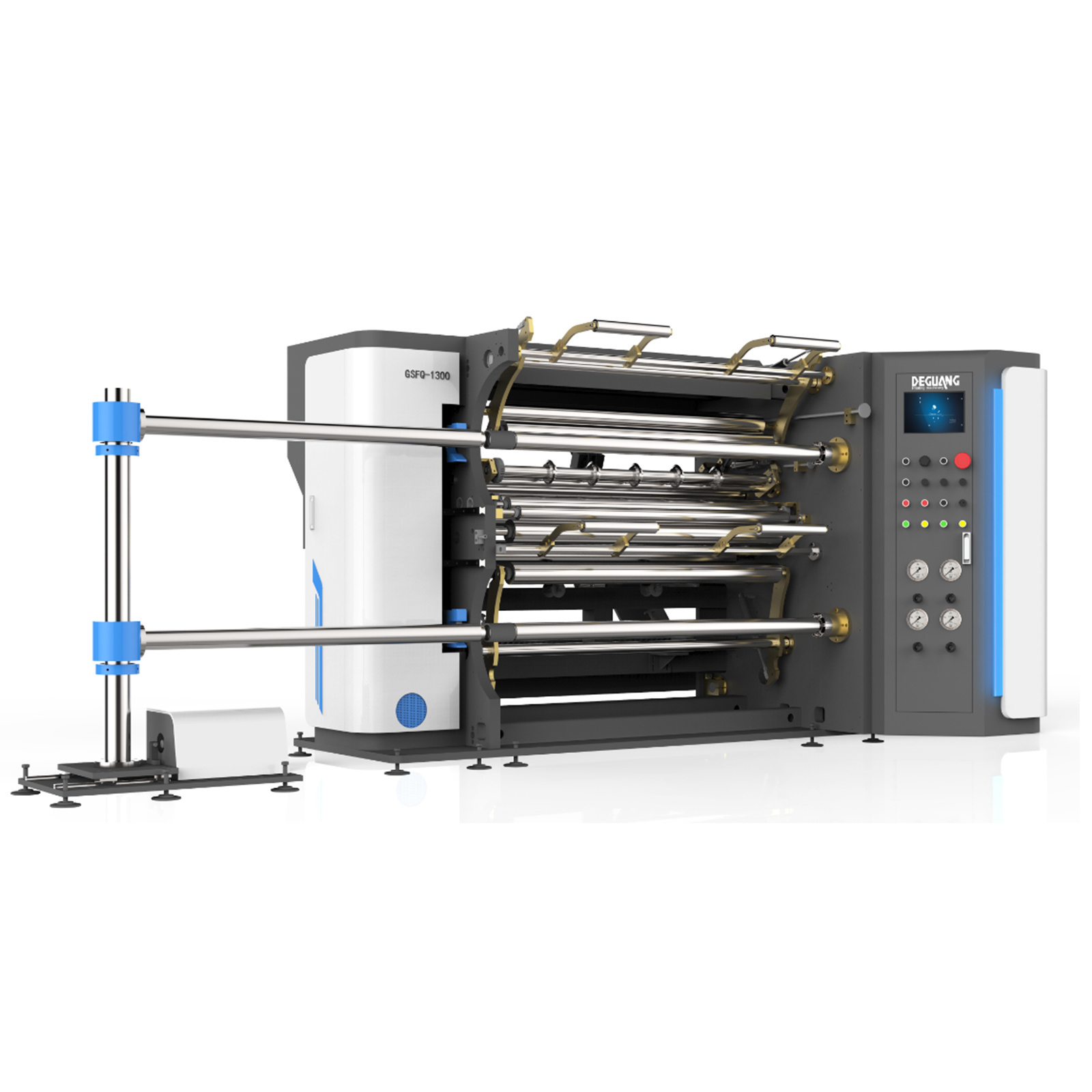

Automatic high speed slitting rewinding machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts
-
Dimension:
-
3170*2820*1800
-
Unwinding dia:
-
800mm
-
Rewinding dia:
-
600mm
-
Max matetial width:
-
1350mm
-
Min slitting width:
-
30mm
-
Certification:
-
CE, ISO
Quick Details
-
Voltage:
-
3P 380±5%, 50Hz
-
Power:
-
11kw, 11kw
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Deguang
-
Weight:
-
3800 KG, 4500kg
-
Dimension(L*W*H):
-
4200*2200*1800 mm
-
Product name:
-
Automatic high speed slitting rewinding machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts
-
Dimension:
-
3170*2820*1800
-
Unwinding dia:
-
800mm
-
Rewinding dia:
-
600mm
-
Max matetial width:
-
1350mm
-
Min slitting width:
-
30mm
-
Certification:
-
CE, ISO
This machine Video in Youtube:
http://v.youku.com/v_show/id_XNzE2NDE5MTY0.html?qq-pf-to=pcqq.c2c
| Model | GSFQ1300B | GSFQ1600B |
| Max mechanical speed | 450m/min | 450m/min |
| Max slitting speed | 400m/min | 400m/min |
| Max roll width | 1350mm | 1350mm |
| Min slitting width | 25mm | 25mm |
| Max unwind diameter | φ 800mm | φ 800mm |
| Max rewind diameter | φ 600mm | φ 600mm |
| suitable material | 10~200um plastic film and paper | 10~200um plastic film and paper |
| Power | 11kw | 15kw |
| Dimension | 4200*2300*1800mm | 4200*2600*1800mm |
| Weight | 4500kg | 5200kg |
1.Unwind
Pneumatic loading system.
Shaftless unwinding, 3 and 6 inch paper core.
Edge adjustment roller.
LPC(BST/Germany) to control the edge or line, position of the LPC sensor can be small adjusted in handle side.
Unwinding tension is controlled by servo motor(4.4kw).
Operate the machine in unwinding side with rear operation panel.
Automatic stop when the diameter of unwind reel reach to your setting.
Cutting table: Fixed splicing table.
2.Driving system
Nip drive
Driving motor: servo moto(3kw)
3.Cutting system
8 pcs cutter,you can operate the cutter by button in control panel.
You can adjust the cutout depth by handwheel.
Two slitting model:Flat blade or rotary blade.
4.Rewinding system
Rewinding model:Center surface.
3 inch differential inflated shafts, making the tension constant..
Main pressing roller 4 pcs with width 350mm.
One servo motor(5.5kw) control the two rewinding shaft.
Automatic stop when the length of rewinding reach your setting.
Laser positioning.
The whole machine PLC control, you could do all the operation by touch screen which is convenient.
5.Unloading system
Unloading holder which is convenient.
6.Trim system
Trim blower 1 set 1.1kw
7.Control system
Inovance, China
8.Touch screen
Tongtai, China
Mr. Joe
Mobile/Whatsapp/Wechat: +86 15325032345
Our company founded in 1987, start to manufacturing Slitting Rewinding machine in 1991.
