Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZK
-
Model Number:
-
BNC-J3
-
Matched cable:
-
RG316
-
Good VSWR:
-
less than 1.15(0-3)GHz
-
Material:
-
Brass
-
Body plating:
-
Ni
-
Pin Plating:
-
Gold
-
Durability:
-
500times
-
Impedance:
-
50ohm
-
Certificate:
-
Full RoHS compliance
Quick Details
-
Type:
-
BNC
-
Application:
-
RF
-
Gender:
-
Male
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZK
-
Model Number:
-
BNC-J3
-
Matched cable:
-
RG316
-
Good VSWR:
-
less than 1.15(0-3)GHz
-
Material:
-
Brass
-
Body plating:
-
Ni
-
Pin Plating:
-
Gold
-
Durability:
-
500times
-
Impedance:
-
50ohm
-
Certificate:
-
Full RoHS compliance
BNC coaxial connectors,with a two stud bayonet coupling mechanism for easy,fast and reliable connections,are mainly applied in data systems and telecom applications. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques.

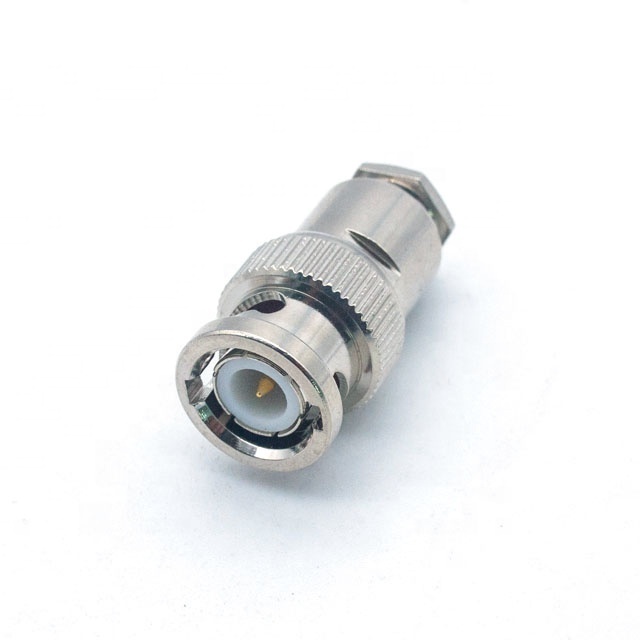

RF Coaxial BNC male crimp connector for RG174/RG316 cable high quality
Pictures:
|
Interface |
|||
|
According to |
BS9210 F0022 |
||
|
Electrical |
|||
|
1 |
Characteristic Impedance |
50ohm |
|
|
2 |
Frequency Range |
DC-3GHz |
|
|
3 |
VSWR |
1.1 5 |
|
|
4 |
Dielectric withstanding voltage |
≥ 1 500RMS,50Hz,at sea level |
|
|
5 |
Dielectric Resistance |
≥ 5 000MΩ |
|
|
Mechanical |
|||
|
1 |
Durability |
Mating cycles ≥500 |
|
|
Material and plating |
|||
|
1 |
Description |
Material |
Plating |
|
2 |
Body |
Brass |
Tri-Alloy/Ni |
|
3 |
Insulator |
PTFE |
– |
|
4 |
Center conductor |
Tin-Phosphor Bronze |
Au |
|
Environmental |
|||
|
1 |
Temperature Range |
-40℃~+85℃ |
|
