Quick Details
-
Span:
-
5.6 Meters
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
RUIYATE
-
Weight (KG):
-
1396 kg
Quick Details
-
Rated Loading Capacity:
-
4 TON
-
Max. Lifting Height:
-
11.5 meters
-
Engine Brand:
-
ISUZU
-
Span:
-
5.6 Meters
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
RUIYATE
-
Weight (KG):
-
1396 kg
Products Description
Details show
Product Paramenters
|

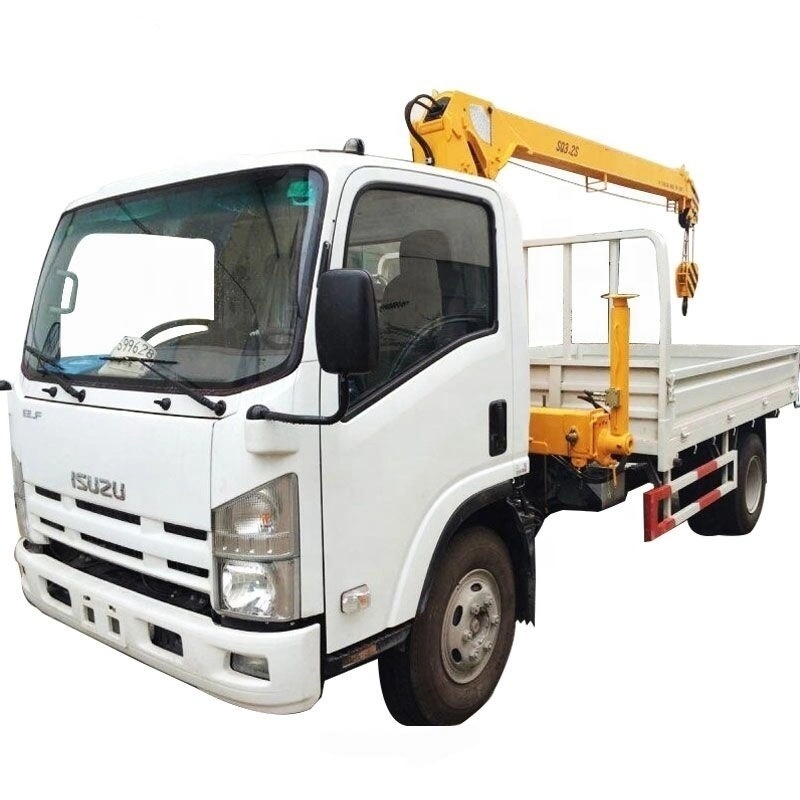

Truck with crane technicial parameters
|
|
|
|
|||
|
Overall dimension(L*W*H)
|
6710×2498×3500(mm)
|
The size of the Cargo box(L*W*H)
|
3300x2000x450(mm)
|
|||
|
Total Mass(kg)
|
10,000
|
Rated Loading capacity(kg)
|
5,305
|
|||
|
Technical parameter of chassis
|
|
|
|
|||
|
Chassis Brand
|
700P
|
Color
|
White or optional
|
|||
|
Engine
|
Fuel Type
|
Diesel
|
|
|||
|
|
Horse power
|
139kw/190HP
|
|
|||
|
|
Displacement
|
5193ml
|
|
|||
|
|
Engine Type
|
4 cylinders in line,high pressure common rail,multi - stage jet
|
|
|||
|
|
Emission Standard
|
Euro IV
|
|
|||
|
Wheel Base(mm)
|
3815
|
Driving type
|
4x2
|
|||
|
Type & Size of Tyre
|
8.25-16 Nylon tire(6+1pcs)
|
Air Conditional
|
Suitable for tropical climate
|
|||
|
Cab
|
Single-row tilted cab
|
Gear Box
|
ISUZU MLD 6 speed forward with 1 reverse, manual
|
|||
|
Brake
|
Oil brake
|
Steering Wheel
|
Left Hand Drive with power-assisted
|
|||
|
Technical parameter of crane(4T straight arm)
|
|
|
|
|||
|
Crane model
|
SQ4SK3Q
|
Crane weight (KG)
|
1,396
|
|||
|
Max. lifting weight(KG)
|
4,000
|
Max. working height (m)
|
11.5
|
|||
|
Max oil plow of hydroulic systm(L/MIN)
|
25
|
Rated pressure of hydraulic system(mpa)
|
20
|
|||
|
Oil tank capacity (L)
|
60
|
Installation space(mm)
|
850
|
|||
|
Max. working radius (m)
|
9.4
|
Max lifting Moment(T.M)
|
10
|
|||
|
Lifting capacity/working radius
|
Lifting capacity(kg)
|
|
working radius(m)
|
|||
|
|
4000
|
|
2.5
|
|||
|
|
2600
|
|
3.42
|
|||
|
|
1600
|
|
5.42
|
|||
|
|
900
|
|
7.42
|
|||
|
|
400
|
|
9.42
|
|||
|
Rotation angle
|
360°, all rotation
|
Boom No
|
4 section
|
|||
If you don't need a chassis, just need an aerial working platform, contact us as soon as possible
