Quick Details
-
Brand Name:
-
ONV
-
Model Number:
-
ONV0110-SCX-O
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-

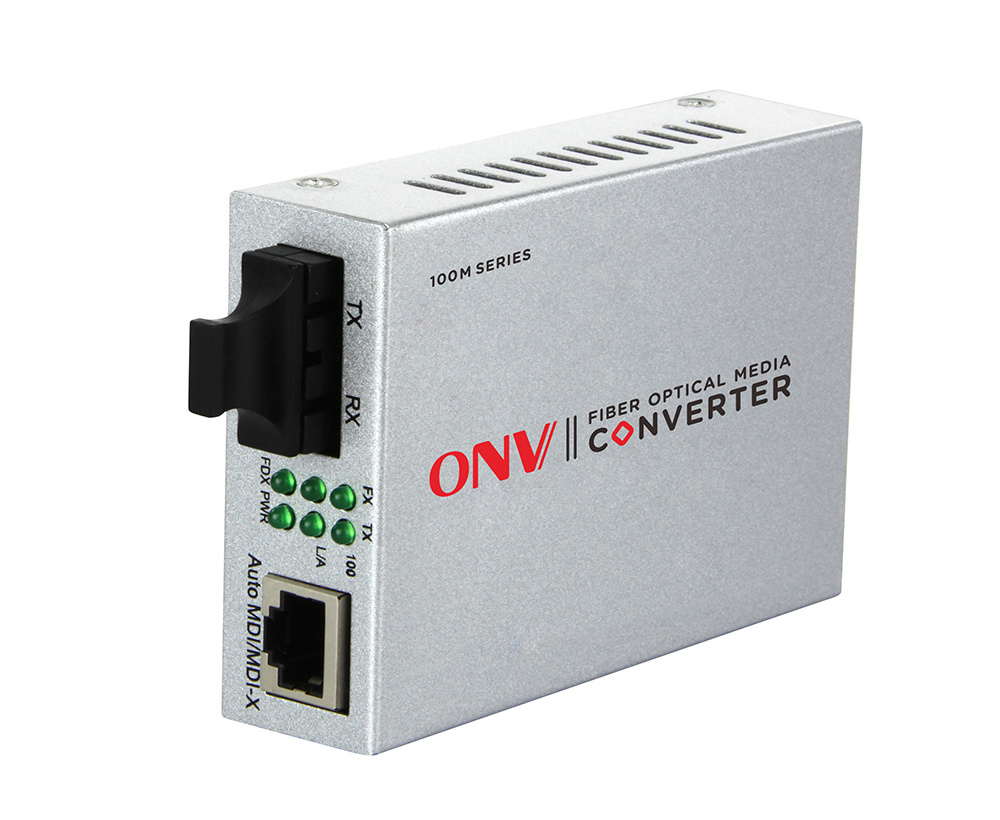

2-port 10/100M Single-mode Dual Fiber Media Converter
-
Applications:
-
CCTV Security System
-
Manufacturer:
-
Shenzhen
-
Dimensions (W x D x H):
-
94*71*26mm
-
Condition:
-
100% Original brand
-
OEM/ODM:
-
accept
-
Forwarding Rate@64byte:
-
0.3Mpps
-
Total PWR / Input Voltage:
-
3W/ (5VDC)
-
Net /Gross Weight:
-
<0.2kg / <0.4kg
-
Warranty:
-
3 years, lifelong maintenance
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1.0Gbps
-
Brand Name:
-
ONV
-
Model Number:
-
ONV0110-SCX-O
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
2-port 10/100M Single-mode Dual Fiber Media Converter
-
Applications:
-
CCTV Security System
-
Manufacturer:
-
Shenzhen
-
Dimensions (W x D x H):
-
94*71*26mm
-
Condition:
-
100% Original brand
-
OEM/ODM:
-
accept
-
Forwarding Rate@64byte:
-
0.3Mpps
-
Total PWR / Input Voltage:
-
3W/ (5VDC)
-
Net /Gross Weight:
-
<0.2kg / <0.4kg
-
Warranty:
-
3 years, lifelong maintenance
uplink SC fiber port, User can select different optical modules, such as multimode dual fiber, single-mode dual fiber, and single-mode single fiber. The media converter adopts the enterprise-class Taiwan Realtek company's carrier-grade chip solution, which has stable performance, good quality and high cost performance.
10/100M photoelectric Ethernet conversion transmission
—
All series supports 100M RJ45 port and 155M fiber port combination, which enables users to
flexibly build networking to meet the needs of various scenarios
— Support non-blocking wire-speed forwarding .
— Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Easy to use and simple to maintain
—
Compatible with IEEE802.3u 100Base-TX/FX network protocol,10/100M R45 port rate
auto-negotiation
— Support full-duplex/half-duplex working mode with auto-negotiation function
— Automatic identification of twisted pair MDI/MDI-X cross lines and parallel lines
—
Plug and play, no configuration required, centralized power supply and centralized connection management throug
—
LED working status indication for network diagnosis and fault checking, reducing maintenance
workload
Stable and reliable
— Low power consumption, No fan , galvanized steel casing.
— Comply with telecommunication network access requirements, and have the telecommunications equipment network access license of the MIIT.
— CCC,CE, FCC, RoHS.
|
Model
|
0110-SCX-O
|
ONV-POE31024PL
|
||
|
Interface Characteristics
|
|
|
||
|
Interface
|
1* 10/100Base-TX RJ45 port (Data)
1*155M uplink SC fiber port (Data) |
24*10/100Base-TX PoE ports
(Data/Power)
2*10/100/1000Base-T Uplink RJ45
ports (Data)
|
||
|
Ethernet Port
|
10/100Base-TX,auto-sensing,Full/half duplex MDI/MDI-X self-adaption
|
|
||
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter) |
|
||
|
Optical Fiber Port
|
155Mbps,single-mode dual fiber SC interface
|
After opening, port 17-24 support
10M/250 meters long distance
transmission.
|
||
|
Optical Cable/
Distance |
multimode: 850nm / 0 ~ 500m, 1310nm / 0 ~ 2km;
single mode: 1310nm / 0 ~ 40km, 1550nm 0 ~ 120km. |
|
||
|
Chip Parameter
|
|
|
||
|
Network Protocol
|
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X, IEEE802.3x |
|
||
|
Forwarding Mode
|
Store and Forward(Full Wire Speed)
|
|
||
|
Switching Capacity
|
1Gbps
|
|
||
|
Forwarding
Rate@64byte |
0.3Mpps
|
6.55Mpps
|
||
|
Mac
|
1K
|
|
||
|
Buffer Memory
|
768K
|
|
||
|
LED Indicator
|
Power: PWR (green), Data: L/A (green), Single / duplex: FDX (green) ,
Fiber :FX(green), rate: 10/100 (green) |
|
||
|
PoE & Power
|
|
|
||
|
Total PWR / Input
Voltage |
3W/ (5VDC)
|
|
||
|
Power
Consumption |
Standby<1W,Full Load<3W
|
600W (AC100-240V)
|
||
|
Physical Parameter
|
|
|
||
|
Operation TEMP / Humidity
|
-20~+55°C;5%~90% RH Non condensing
|
|
||
|
Storage TEMP / Humidity
|
-40~+75°C;5%~95% RH Non condensing
|
|
||
|
Dimension (L*W*H)
|
94*71*26mm
|
330*204*44mm
|
||
|
Net /Gross Weight
|
<0.2kg / <0.4kg
|
<2.3kg / <3kg
|
||
|
Installation
|
Desktop, 2U-14 slot rack
|
|
||
|
Certification & Warranty
|
|
|
||
|
Lightning protection
|
Lightning protection: 4KV 8/20us; Protection level: IP30
|
|
||
|
Certification
|
CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS;
|
|
||
|
Warranty
|
3 years , lifelong maintenance.
|
|
||
|
Model
|
Description
|
|
|
|
|||
|
0110-SCX-O
|
10/100M single-mode dual fiber media converter with 1*10/100M RJ45
port and 1*155M SC fiber port. Total power is 3W, 1310nm, default transmission distance 0-20km. External power supply. |
|
|
|
|||
|
PACKING LIST
|
CONTENT
|
QTY
|
UNIT
|
|
|
2-port 10/100M single-mode dual fiber media converter
|
1
|
SET
|
|
|
User Guide
|
1
|
PC
|
|
|
Warranty Card
|
1
|
PC
|
