Quick Details
-
Product Name:
-

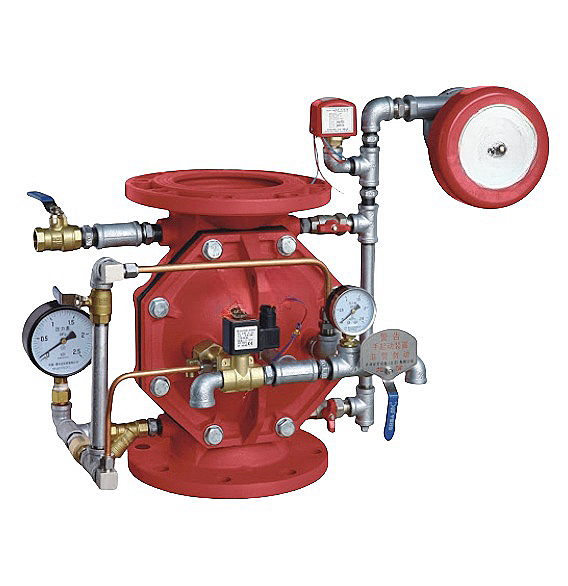

Diaphragm Deluge Valve
-
Material:
-
Ductile Iron
-
Specification:
-
2"-10"
-
Working Pressure:
-
1.6 Mpa/232psi
-
Installation:
-
Vertical&Horizontal
-
Wet Alarm Valve Structure:
-
Seat
-
Package:
-
Wooden Case
-
Medium:
-
for Most Water, Seawater & Brackish Water Supplies
-
Connection:
-
Flange/Groove
-
Finished:
-
Standard Red Painting
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
SHOUSHENG
-
Model Number:
-
2"-10"
-
Product Name:
-
Diaphragm Deluge Valve
-
Material:
-
Ductile Iron
-
Specification:
-
2"-10"
-
Working Pressure:
-
1.6 Mpa/232psi
-
Installation:
-
Vertical&Horizontal
-
Wet Alarm Valve Structure:
-
Seat
-
Package:
-
Wooden Case
-
Medium:
-
for Most Water, Seawater & Brackish Water Supplies
-
Connection:
-
Flange/Groove
-
Finished:
-
Standard Red Painting
Specification
Model
|
Rated W.P(Mpa)
|
Sealing Test Pressure(Mpa)
|
Strength Test Pressure(Mpa)
|
Screw Hole No. and Dia ΦA(mm)
|
ZSFM50
|
1.2
|
2.4
|
4.8
|
4xΦ18
|
ZSFM65
|
|
|
|
4xΦ18
|
ZSFM80
|
|
|
|
8xΦ18
|
ZSFM100
|
|
|
|
8xΦ18
|
ZSFM125
|
|
|
|
8xΦ18
|
ZSFM150
|
|
|
|
8xΦ22
|
ZSFM200
|
|
|
|
12xΦ22
|
ZSFM250
|
|
|
|
12xΦ26
|
