Quick Details
-
Voltage:
-
220V/380V
-
Power:
-
2.2KW
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
700*500*1200mm
-
Name:
-
Good Performance Coconut Grating Machine
-
Application:
-
Coconut
-
Feature:
-
High Efficiency
-
Material:
-
304 Stainless Steel
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Viet Nam
-
After-sales Service Provided:
-
Field installation, commissioning and training
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GELGOOG
-
Type:
-
Good Performance Coconut Grating Machine
-
Voltage:
-
220V/380V
-
Power:
-
2.2KW
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
700*500*1200mm
-
Name:
-
Good Performance Coconut Grating Machine
-
Application:
-
Coconut
-
Feature:
-
High Efficiency
-
Material:
-
304 Stainless Steel
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Viet Nam
-
After-sales Service Provided:
-
Field installation, commissioning and training

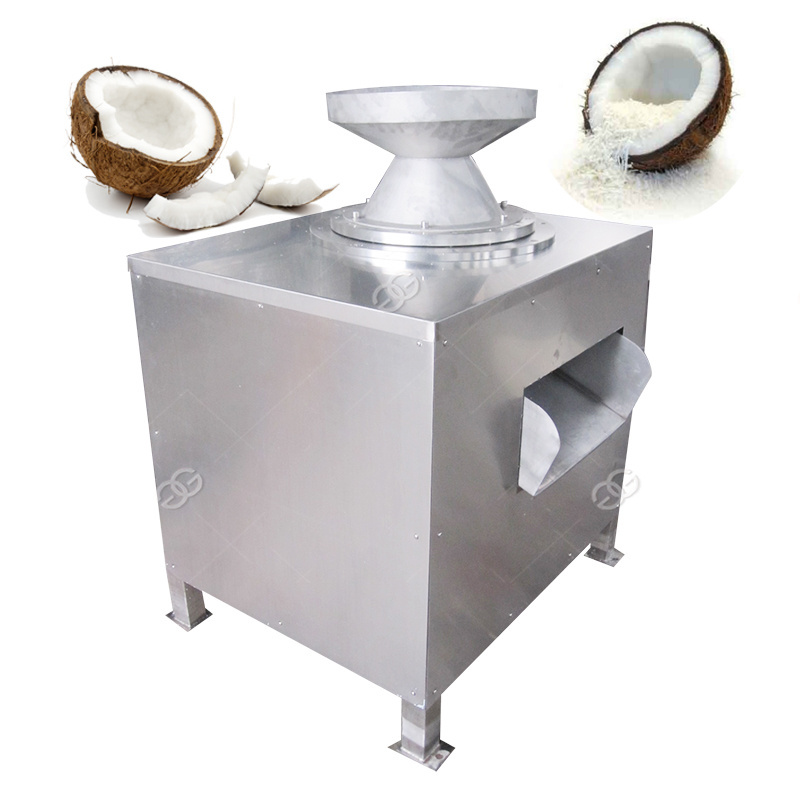

Good Performance Coconut Grating Machine
Works Principle:
After cleaning materials or peeled (shelled) by man or hoist feed material into hopper. The material in the high-speed rotation of the disc cutter feed platen, the material into the hopper along a fixed spiral downward extrusion at the same time get the tooth thickness cut, grind, and finally small particles from the fixed flange and disc cutter gap falling out. You can adjust the gap flange and disc cutter obtained optimum crushing fineness of grind and production capacity.
Main Technical Parameter:
|
Model Parameters |
GG-200 |
GG-400 |
GG-600 |
|
Capacity |
400-600kg/h |
500-1500 kg/h |
1000-3000 kg/h |
|
Power |
2.2-3KW |
5.5-7.5KW |
11-15KW |
|
Speed |
1450r/min |
1450r/min |
1450r/min |
|
Grinding disc diameter |
200mm |
400mm |
700mm |
|
Cutter number |
12pcs |
24pcs |
48pcs |
|
Flange with Cutter gap |
0.5mm-5mm (adjustable) |
||
|
Dimension |
700*500*1200mm |
950*720*1500mm |
1350*1050*1800mm |
