Quick Details
-
Brand Name:
-
ZINGEAR
-
Model Number:
-
G303-130R05A3-78
-
Max. Current:
-
0.1/3(A)
-
Operating Temperature:
-
-40℃+ 85℃
-
Protection Level:
-
IP67
-
Rating:
-
0. 1A, 125/250VAC; 3A/12VDC;0. 1A/48VDC
-
Mechanical Life:
-
120 Cycles/minute
-
Electrical life:
-
0. 1A-120 cycles/minute; 3A-10~30 cycles/minute
-
Insulation Resistance:
-
100m - Min
-
Contact Resistance:
-
100m - Max
-
Electrical:
-
Min. 100, 000 cycles
-
Mechanical:
-
Min. 500, 000 cycles
-
Application:
-
Automotive Electronics,Appliance and Industrial Control Designs
-
Product Name:
-
switch waterproof microswitch 12v
-
Color:
-
Black
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
125/250(V)
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZINGEAR
-
Model Number:
-
G303-130R05A3-78
-
Max. Current:
-
0.1/3(A)
-
Operating Temperature:
-
-40℃+ 85℃
-
Protection Level:
-
IP67
-
Rating:
-
0. 1A, 125/250VAC; 3A/12VDC;0. 1A/48VDC
-
Mechanical Life:
-
120 Cycles/minute
-
Electrical life:
-
0. 1A-120 cycles/minute; 3A-10~30 cycles/minute
-
Insulation Resistance:
-
100m - Min
-
Contact Resistance:
-
100m - Max
-
Electrical:
-
Min. 100, 000 cycles
-
Mechanical:
-
Min. 500, 000 cycles
-
Application:
-
Automotive Electronics,Appliance and Industrial Control Designs
-
Product Name:
-
switch waterproof microswitch 12v
-
Color:
-
Black
Our Advantages
1.Zing Ear factory with high standard in product quality control;
2.We are certificated by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.
3.Our customers from all over the world, like US, UK, Japan, Germany, Argentina, Mexico, Singapore
4.One-stop Service for Customers

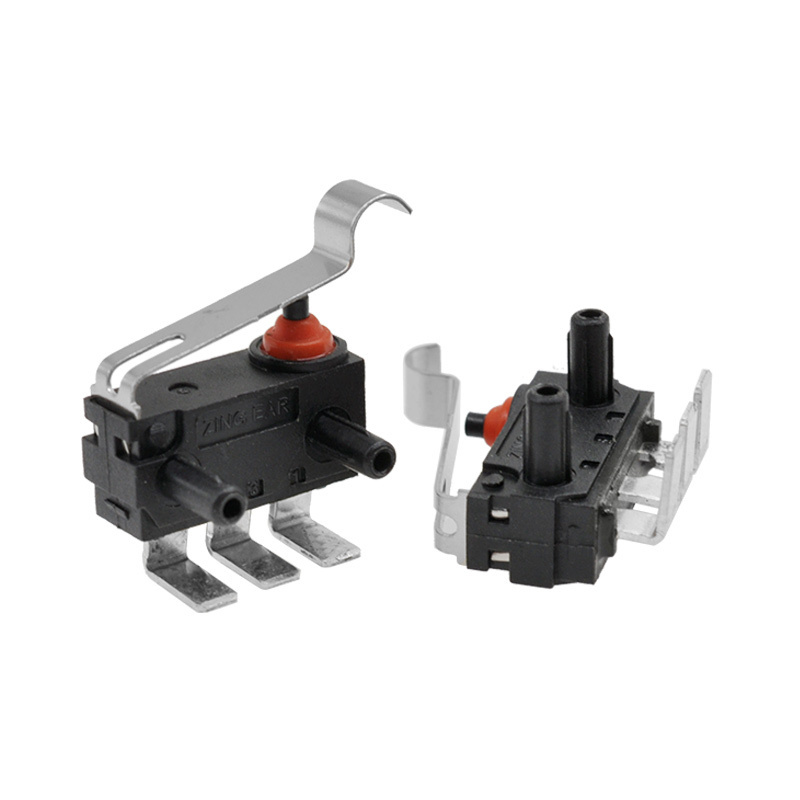

Subminiature 3A 12V DC Bent Lever Terminal Micro Switch Waterproof
G303 Subminiature Sealed Micro Switch Parameters
|
Rating
|
0. 1A, 125/250VAC; 3A/12VDC;
0. 1A/48VDC ;U1E5
|
|
Operating Frequency
|
Electrical: 0. 1A-120 cycles/minute; 3A-10~30 cycles/minute
|
|
Operating Frequency
|
Mechanical: 120 Cycles/minute
|
|
Service Life
|
Electrical: Min. 100, 000 cycles(Depend on part NO.)
|
|
Service Life
|
Mechanical: Min. 500, 000 cycles
|
|
Contact Resistance(Initiative)
|
100m Ω Max (without wire type)
|
|
Insulation Resistance (at500VDC)
|
100m Ω Min
|
|
Vibration Durability
|
10~55Hz,move 0. 75mm (p-p)
|
|
Dielectric Strength
|
500VAC (50~60Hz)
|
|
Temperature
|
-40°C ~ + 85°C
|
|
Storage Humidity
|
85% RHMax
|
