Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZOMAGTC
-
Voltage:
-
220V/380V, 380V/50HZ/3PH
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
500 kg
-
Warranty:
-
1 Year, 1 Year
-
Afte-sales Service Provided:
-
Free Spare Parts, Technical support
-
Product name:
-
Hardcover Book Maker Machine Hard Cover Book Making Machine Line
-
After Warranty Service:
-
Video Technical Support Online Support
-
Local Service Location:
-
None
-
Packing:
-
Wooden Case
-
Machine type:
-
Automatic Production
-
Function:
-
Hardcover Book Making
-
Delivery Time:
-
2-20 working days
Quick Details
-
Type:
-
Binding Machine
-
Production Capacity:
-
Other
-
Max. workable width:
-
840mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZOMAGTC
-
Voltage:
-
220V/380V, 380V/50HZ/3PH
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
500 kg
-
Warranty:
-
1 Year, 1 Year
-
Afte-sales Service Provided:
-
Free Spare Parts, Technical support
-
Product name:
-
Hardcover Book Maker Machine Hard Cover Book Making Machine Line
-
After Warranty Service:
-
Video Technical Support Online Support
-
Local Service Location:
-
None
-
Packing:
-
Wooden Case
-
Machine type:
-
Automatic Production
-
Function:
-
Hardcover Book Making
-
Delivery Time:
-
2-20 working days

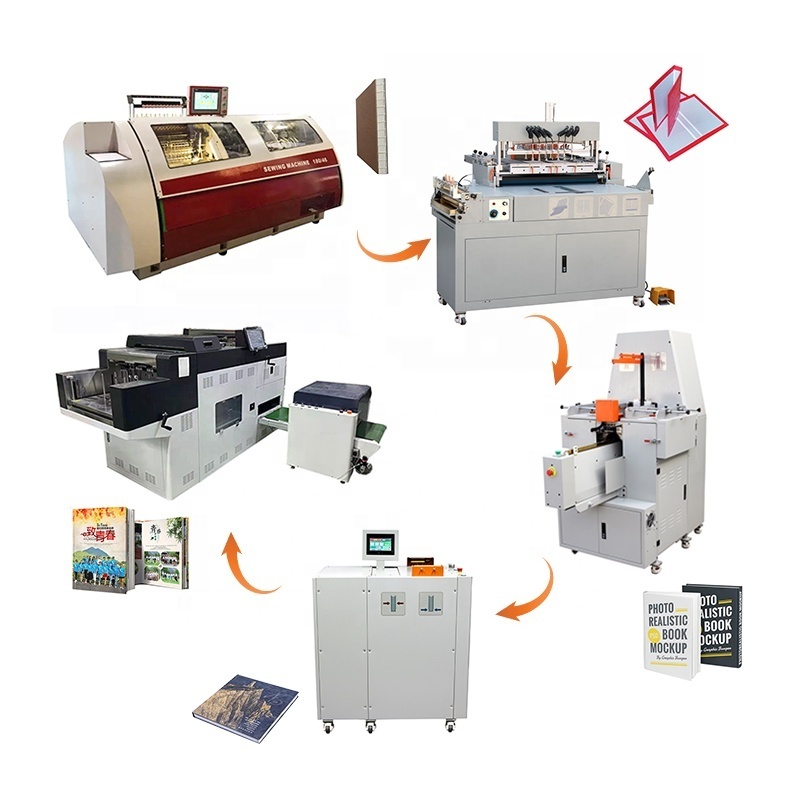

Automatic Hardcover Book Shell Binding Machine Case Pressing Gluing Casing in Maker Photo Album Hard Cover Making Machine
Recommend Products
Hard Cover Book Case in Machine
lay flat photo album making machine
Products Description
1. Semi automatic Pneumatic Book Shell Cover Making Machine Hardcover Book Binding Machine Book Case Making Machine
|
Max. size
|
840×480mm
|
|
|
Operation Desk Size
|
980×466mm
|
|
|
Gluing width
|
500mm
|
|
|
Hardcover edge width
|
840mm
|
|
|
Thickness of the cardboard
|
1.5~4mm
|
|
|
Thickness of the cover paper
|
80~400g/m2
|
|
|
Power Supply
|
220V
|
|
|
Machine gas
|
0.6MPa
|
|
|
Machine Weight
|
730kg
|
|
|
Machine dimensions
|
1640×1550×1680mm
|
|
|
Standard accessory
|
10mm paper guide - Long
|
|
|
Machine air source for selecting, equipment reserved Φ8mm trachea interface.
|
|
|
Multifunction ZM-QSK840 includes Hot gluing, suction and position, corner cutter, automatic edge folder, quantitative water replenishment etc. It's a flexible, high-efficiency and affordable case maker to make different kinds of hard covers for book, album, loose-leaf book, diary, and desk calendar. Suitable for multispecies, short to medium run and wide range of materials to make hard covers. ZM-QSK840 can be operated by one person, protein glue (Hot) and white latex (cold) are both available, fold two edges automatically at one time. It also has the functions like corner cutter, quantitative water filling, fast to adjust the thickness of the cardboards, soft light reflection, center position and cover suction assistance.
2. Automatic Feeding Hardcover Folded Paper Thread Book Sewing Machine Connect With Offset Printing Machine
|
Model
|
ZM-180/46 Thread Book Sewing Machine
|
|
Max sewing size
|
460*320mm
|
|
Min sewing size
|
120*75mm
|
|
Max sewing speed
|
180 cycles/min
|
|
Quantity of needles
|
11
|
|
Distance of needle
|
19mm
|
|
Power
|
5.5KW,380V
|
|
Air Compressor
|
40Nm3 /6ber
|
|
Dimension
|
2850*1680*1750mm
|
|
Weight
|
3500kg
|
Paper Thread Book Sewing Machine Feature
1.It can process up to 10,000 signatures per hour, and achieve high efficiency and low cost.
2.The PLC program and color screen touch control panel design make it have the functions of non-stop, simple and fast program setting, storing different thread sewing programs, and displaying production data.
3.Frictionless design, all types can be processed.
4.The computer control of the whole machine is absolutely controlled from the feeding machine to the thread sewing table to ensure high-speed thread sewing.
5.Closed cam box design. Its drive shaft runs in a sealed oil sump. This advanced drive system ensures long cam life and maximum noise and vibration free operation of the equipment without any routine inspection and maintenance. The sewing saddle itself is also extremely strong, and it attaches directly to the cam box without the need for additional intermediate gearing.
3.
Semi Automatic Case Binding Machine High Quality HardCover Book Cover Binding Machine Hard Cover Book Case in Machine
|
Max. book size
|
360x360mm
|
Min. book size
|
90x60mm
|
|||
|
Book thickness
|
5 – 65mm
|
Roller width
|
360mm
|
|||
|
Power Supply
|
220V
|
Mechanical speed
|
About 720 books/hour
|
|||
|
Machine weight
|
570kg
|
Machine dimensions
|
1620x1050x1850mm
|
|||
|
※
Machine air source for selecting, equipment reserved Φ8mm trachea interface.
※ Reserve the right to change the parameters without prior notice. |
|
|
|
|||
Hard Cover Book Case in Machine
Feature
1.Input the length and thickness of the book blocks, and the casing- in will be processed automatically.
2. Input the length and thickness of the book blocks by touch screen, and change different size of books in seconds.
3.PLC control system, more convenient than manual adjustment and setup.
4.High speed option al fiber detect the position of the book blocks, autonomous control and running.
1.Input the length and thickness of the book blocks, and the casing- in will be processed automatically.
2. Input the length and thickness of the book blocks by touch screen, and change different size of books in seconds.
3.PLC control system, more convenient than manual adjustment and setup.
4.High speed option al fiber detect the position of the book blocks, autonomous control and running.
5. Provide Auto mode, manual mode and inching mode.
6. Double guide rails to convey the book blocks accurately and steadily.
7. Multi-point linkage design, easy to operate and ensure safety.
8. Equipped with high load casters, convenient to level adjusting, fixing and moving the machine.
6. Double guide rails to convey the book blocks accurately and steadily.
7. Multi-point linkage design, easy to operate and ensure safety.
8. Equipped with high load casters, convenient to level adjusting, fixing and moving the machine.
4. Semi Automatic Hardcover Book Case Pressure Press Rounding Machine For Sales
|
Work table size
|
690×500mm
|
Temperature Range
|
0~100℃
|
|
Power Supply
|
220V 300W
|
Machine gas
|
0.6MPa
|
|
Machine weight
|
130kg
|
Machine dimensions
|
7200×650×1300mm
|
Press out the middle back plate of the hardcover case into an arc shape matching the thickness of the book block, which is used to fit the book block after rounding the book block.
It is suitable for the production of hardcover books with different sizes, small and medium batches and personalized round backs.
1.Four different arc-shaped round back molds are equipped as standard for heating and shaping, which is suitable for the production of round back hardcover books with different thickness.
2.The heating temperature of round back mold is adjustable.
3.The setting time of book case pressing can be adjusted and set according to the demand.
4.The foot valve controls pneumatic pressure, and the pressure is adjustable.
5.Replace different arc shaping molds and match round back hardcover books with different thickness.
6.The arc die is replaced and pulled, which is loosened and fixed by pneumatic control.
2.The heating temperature of round back mold is adjustable.
3.The setting time of book case pressing can be adjusted and set according to the demand.
4.The foot valve controls pneumatic pressure, and the pressure is adjustable.
5.Replace different arc shaping molds and match round back hardcover books with different thickness.
6.The arc die is replaced and pulled, which is loosened and fixed by pneumatic control.
Replace the heating pressing plate with different arc degrees according to the thickness of the book.
Replace the circular arc setting plate whose circular arc size matches the circular back heating upper pressing plate. Pneumatic control clamping arc positioning plate.
The heating temperature and pressure time can be adjusted.
5. Digital photobook making machine lay flat photo book maker 14 in one layflat photo album making machine
|
Product Name
|
Digital photobook making machine photo album making machine 14 in one layflat photo album making machine
|
|
Photo album specification
|
6X6——18X18inch
|
|
Inner Material thickness
|
0.3-1.0 mm
|
|
Speed
|
40books/h (keep upgrading)
|
|
Power Consumption
|
1800--3500w
|
|
Air Consumption
|
up 0.55Pa
|
|
Control System
|
PC Seperate Module Control
|
|
Material Loading
|
25cm (keep upgrading)
|
|
Dimention
|
2200x1000x1350mm
|
|
Net Weight
|
650 KG
|
