Quick Details
-
Brand Name:
-
Firstrate
-
Model Number:
-
FST200-205
-
Product name:
-
Wind Speed and Direction Sensor
-
Supply voltage:
-
12-30VDC/12-30VDC/12-30VDC/15-30VDC
-
Output signal:
-
4-20mA/0-5VDC/Rs485/0-10VDC
-
Certification:
-
CE RoHS
-
Precision 1:
-
Wind speed: ±3% (≥5m/s)
-
Precision 2:
-
wind direction: ±3 degrees
-
Operating temperature:
-
-40-85℃
-
IP grade:
-
IP65
-
Working humidity:
-
0%~95%(non-condensing)
Quick Details
-
Warranty:
-
1year, 12 Months
-
Type:
-
Wind Speed And Direction Sensor
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Firstrate
-
Model Number:
-
FST200-205
-
Product name:
-
Wind Speed and Direction Sensor
-
Supply voltage:
-
12-30VDC/12-30VDC/12-30VDC/15-30VDC
-
Output signal:
-
4-20mA/0-5VDC/Rs485/0-10VDC
-
Certification:
-
CE RoHS
-
Precision 1:
-
Wind speed: ±3% (≥5m/s)
-
Precision 2:
-
wind direction: ±3 degrees
-
Operating temperature:
-
-40-85℃
-
IP grade:
-
IP65
-
Working humidity:
-
0%~95%(non-condensing)

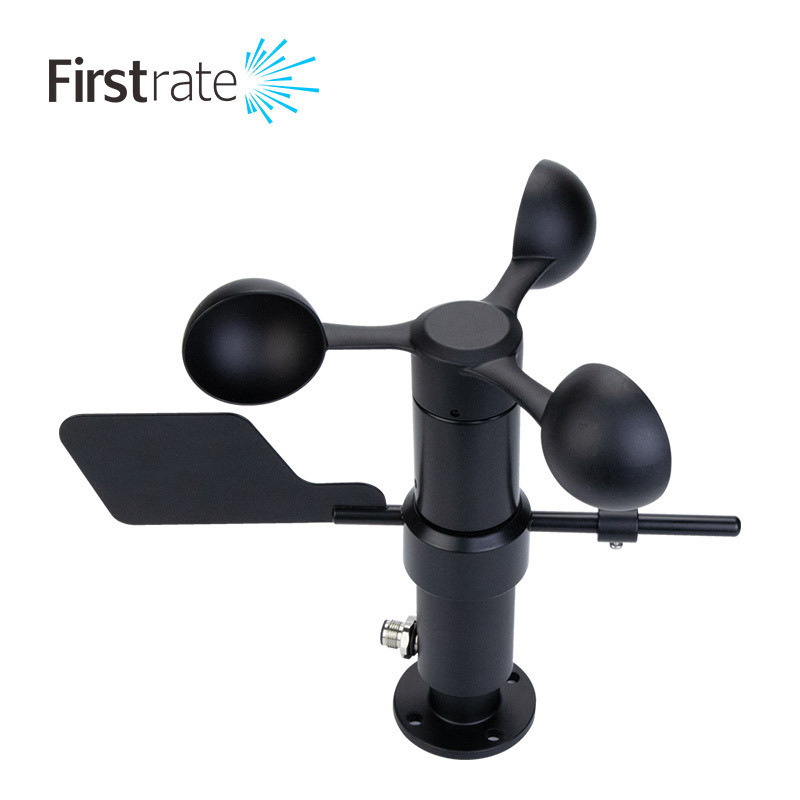

Firstrate FST200-205 Wind Speed Sensor Anemometer Measuring Wind Speed And Direction Sensordirection Sensor Instruments
Product Description
Product parameters
| Operating Voltage | 12-30VDC/12-30VDC |
| Output signal | 4-20mA/Rs485 |
| Range | Wind speed: 0-30m/s, 0-50m/s; wind direction: 16 directions (0-360 degrees) |
| Precision | Wind speed: ±3% (≥5m/s); wind direction: ±3 degrees |
| Maximum power consumption | Current type MAX≤500mW; RS485 type MAX≤300mW |
| Start wind speed | ≤0.5m/S |
| Surge protection | EMC Class III |
| Static protection | 15KV |
| Operating temperature | -40-85℃ |
| Working humidity | 0%~95%(non-condensing) |
| Protection level | IP65 |
♦ Small size, easy to carry, simple installation, beautiful appearance;
♦ Has strong corrosion resistance and weather resistance;
♦ High measurement accuracy, wide range and good stability;
♦ Low power consumption, strong anti-interference ability, can work stably for a long time;
♦ The power supply has a wide adaptation range, good linearity of data information,and a long signal transmission distance.
