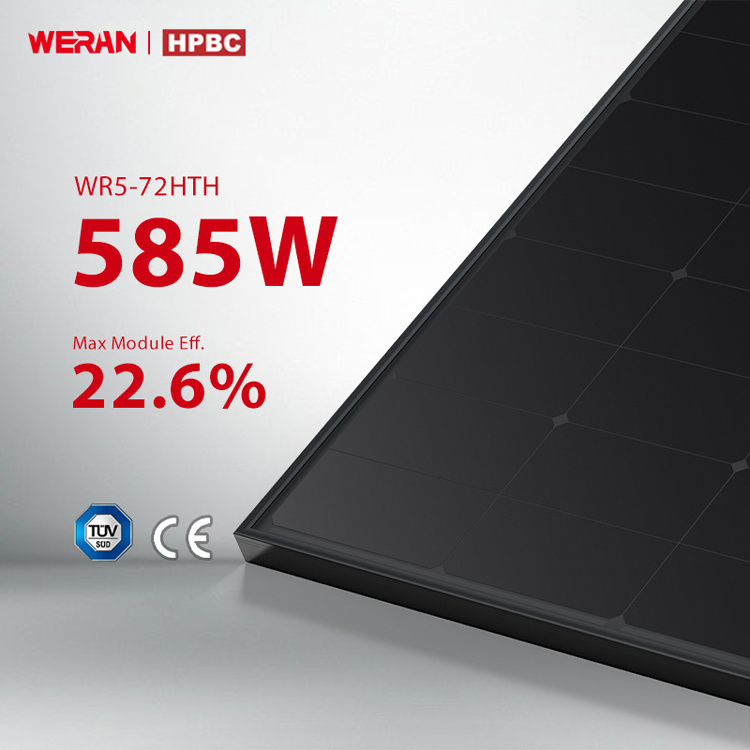

WERAN Jinko Solar Panel N Type 300 Watt N-Type Solar Panels 580W Pump and Panel
WERAN Jinko Solar Panel N Type 300 Watt N-Type Solar Panels 580W Pump and Panel
WERAN Jinko Solar Panel N Type 300 Watt N-Type Solar Panels 580W Pump and Panel
WERAN Jinko Solar Panel N Type 300 Watt N-Type Solar Panels 580W Pump and Panel
WERAN Jinko Solar Panel N Type 300 Watt N-Type Solar Panels 580W Pump and Panel
WERAN Jinko Solar Panel N Type 300 Watt N-Type Solar Panels 580W Pump and Panel
WERAN Jinko Solar Panel N Type 300 Watt N-Type Solar Panels 580W Pump and Panel
WERAN Jinko Solar Panel N Type 300 Watt N-Type Solar Panels 580W Pump and Panel

WERAN Jinko Solar Panel N Type 300 Watt N-Type Solar Panels 580W Pump and Panel

FOB Reference Price: Get Latest Price
≥20000 Pieces
US $0.14
≥200000 Pieces
US $0.13
≥400000 Pieces
US $0.12
≥2000000 Pieces
US $0.11
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty:
15 Years
Brand Name:
WERAN
Model Number:
WR5-72HTH 565-585M
Place of Origin:
China
Panel Dimensions:
2278*1134*30mm

Quick Details

Cell size:
182mmx182mm
Type:
Half Cell, All Black, hbc, HPBC
Panel Efficiency:
22.6%
Warranty:
15 Years
Brand Name:
WERAN
Model Number:
WR5-72HTH 565-585M
Place of Origin:
China
Panel Dimensions:
2278*1134*30mm
Electrical Characteristics
STC : AM1.5 1000W/m2 25℃ Test uncertainty for Pmax:±3%
Module Type
LR5-72HTH-565M
LR5-72HTH-570M
LR5-72HTH-575M
LR5-72HTH-580M
LR5-72HTH-585M
Testing Condition
STC
STC
STC
STC
STC
Maximum Power (Pmax/W)
565
570
575
580
585
Open Circuit Voltage (Voc/V)
51.76
51.91
52.06
52.21
52.36
Short Circuit Current (Isc/A)
14.01
14.07
14.14
14.2
14.27
Voltage at Maximum Power (Vmp/V)
43.61
43.76
43.91
44.06
44.21
Current at Maximum Power (Imp/A)
12.96
13.03
13.1
13.17
13.24
Module Efficiency(%)
21.9
22.1
22.3
22.5
22.6
Mechanical Parameters
Cell Orientation
144 (6×24)
Junction Box
IP68
Output Cable
4mm 2 , +400, -200mm/±1400mm length can be customized
Glass
Single glass, 3.2mm coated tempered glass
Frame
Anodized aluminum alloy frame
Weight
27.2kg
Dimension
2278×1134×30mm
Packaging
36pcs per pallet / 180pcs per 20’GP / 720pcs per 40’HC
Operating Parameters
Operational Temperature
-40℃ ~ +85℃
Power Output Tolerance
0 ~ 3%
Voc and Isc Tolerance
±3%
Maximum System Voltage
DC1500V (IEC/UL)
Maximum Series Fuse Rating
25A
Nominal Operating Cell Temperature
45±2℃
Protection Class
Class II
Fire Rating
UL type 1 or 2
IEC Class C
Mechanical Loading
Front Side Maximum Static Loading
5400Pa
Rear Side Maximum Static Loading
2400Pa
Hailstone Test
25mm Hailstone at the speed of 23m/s
Temperature Ratings(STC)
Temperature Coefficient of Isc
+0.050%/℃
Temperature Coefficient of Voc
-0.230%/℃
Temperature Coefficient of Pmax
-0.290%/℃
