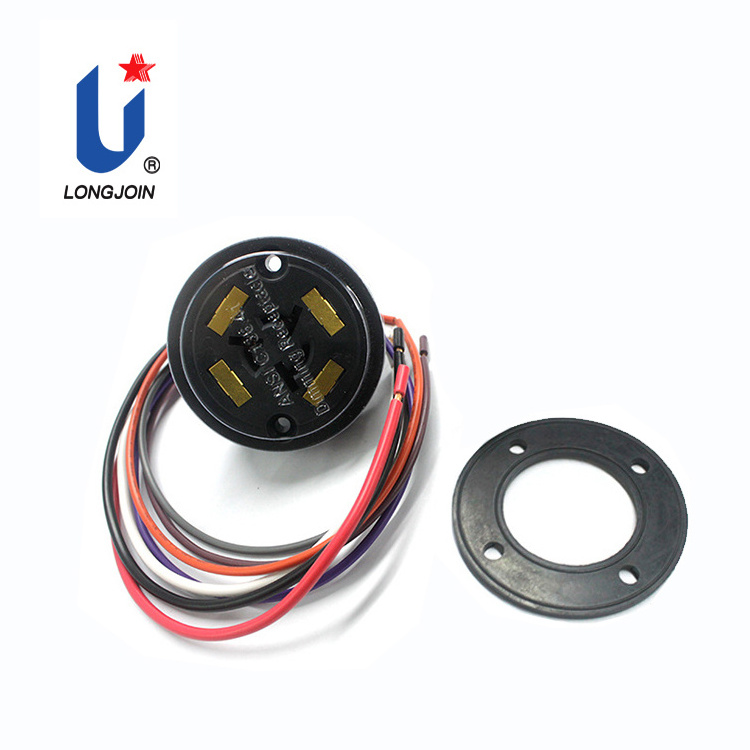

All the JL-240 series photocontrol receptacles were designed for the lanterns those intended to have an ANSI C136.10 receptacle to fit a twist-lock photocontrol. This series conform newly published ANSI C136.41 to allow a LED lamp multi-controlled through the receptacle.
This series offers 2 or 4 gold-plated low voltage pads on the top surface to fit photocontrol has ANSI C136.41 conforming spring contacts, and offers 2 or 4 wiring leads at rear side for signal connection.
This series also offers 360° rotation limiting feature to conform ANSI C136.10 requirements, in case rotatable.
- Product Details
- {{item.text}}
Quick Details
-
WIFI:
-
NO
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Longjoin
-
Model Number:
-
JL-240XA
-
IP level:
-
IP66
-
Cable length:
-
0.3m
-
Contact meta:
-
Phosphor copper
-
Product Nam:
-
twist locking socket
-
Certification certificate:
-
U L CUL CB
-
Signal Control:
-
0-30 VDC, 250 mA Max
-
Ambient Temp:
-
-40℃ ~ +70℃
-
Logo:
-
Available customized, >1000
-
Wire type:
-
0-10V dimming/ Dali dimming
-
Line length specifications:
-
16AWG/14AWG 6" min
Quick Details
-
Rated Voltage:
-
0-480v
-
Rated Current:
-
0-15AMP
-
Application:
-
Residential / General-Purpose
-
WIFI:
-
NO
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Longjoin
-
Model Number:
-
JL-240XA
-
IP level:
-
IP66
-
Cable length:
-
0.3m
-
Contact meta:
-
Phosphor copper
-
Product Nam:
-
twist locking socket
-
Certification certificate:
-
U L CUL CB
-
Signal Control:
-
0-30 VDC, 250 mA Max
-
Ambient Temp:
-
-40℃ ~ +70℃
-
Logo:
-
Available customized, >1000
-
Wire type:
-
0-10V dimming/ Dali dimming
-
Line length specifications:
-
16AWG/14AWG 6" min
Products Description
Product summary
Product Paramenters
Features
Body made from polybutylene terephthalate
Contacts made from phosphor bronze
Gold pad made from Nickel plated phosphor bronze with gold plating per ASTM B 522
Silicone gasket offered (JL-240X)
Thermoplastic Elastomer gasket integrated (JL-240TX)
Specifications
|
Model No
|
JL-240XA
|
|
Nominal Voltage
|
0-480Vac
|
|
Frequency
|
50/60 HZ
|
|
Power loading
|
Load Rating:15A/Signal Control:0-30 VDC, 250 mA Max
|
|
Wire specifications
|
16AWG/14AWG 6" min
|
|
Ambient temperature
|
-40°C ~ +70°C
|
|
High protection
|
IP65/IP66
|
|
Safety certification
|
UL/CUL/CE/CB/ROSH
|
Installation Instructions
1.Disconnect power,
a.during installing JL-240X/TX, please refer to the product structure drawing to determine the
pre-opening ofthe lamp body.
2.Connect the leading wire as shown below
a.The black wire is connected to the L wire of power
b.The red wire is connected to the L wire of lamp
c.The white wire is connected to the N wire of power and the N wire of lamp; big pin against
big holes, Install the light controller socket and turn it clockwise about 30 degrees to lock.
d.The purple wire is connected to the positive pole of the power supply, and the gray line is
connected to the negative pole of the power supply. Install the light controller/short circuit
cap or light controller
connected to the negative pole of the power supply. Install the light controller/short circuit
cap or light controller
3.Matters need attention
a.Depending on the type of washer and
mounting screws used, and in order to meet
the
waterproof performance, it is recommended that the installer use the appropriate torsion to
install screws to ensure a tight fit between the socket, seal ring and the lamp housing.
b.The controller with special functions has special requirements for the location and direction
of the socket installation. Please position the socket direction so that the N indicator points
north.
of the socket installation. Please position the socket direction so that the N indicator points
north.
For example: If the light controller is located in a place that receives direct sunlight, it is
recommended to adjust the direction by referring to the north arrow on the top surface of
the socket or the light controller
recommended to adjust the direction by referring to the north arrow on the top surface of
the socket or the light controller
Ordering Information
JL-240X A 14 12 R -7P N1 S C
|
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
|
JL-240
|
X
|
A
|
14
|
12
|
R
|
7P
|
N1
|
S
|
C
|
1: Model Number
X = gasket separated version
TX = gasket integrated version
2: A= 4 Dimming pads
B=2 Dimming pads
3: Power Lead Rating
14=14 AWG, 105ºC rated
14G=14 AWG 150 ºC rated
16=16 AWG, 105ºC rated
16G=16 AWG 150 ºC rated
16S=16 AWG Double isolated wire (Class II)
4: 12= 12" (Customizable, 06 Min.)
5: R=rear holder
6: 7P=7 wires
5P=5 wires
7: N1=gasket (for JL-240X only)
8: S= wire outlets glued
9: C= Outdoor wiring cable
null= Appliance wiring wire
