Quick Details
-
Power:
-
7.6KW/3000 rpm
-
Place of Origin:
-
China
-
Brand Name:
-
Runtx
-
Maximum Digging Height:
-
2450MM
-
Maximum Digging Depth:
-
1760MM
-
Machine Weight:
-
9000 kg
-
Max Digging Radius:
-
1490MM
-
Rated Speed:
-
1.2 km/h
-
Marketing Type:
-
New Product 2024
Quick Details
-
Operating Weight:
-
1ton, 0.8 TON
-
Bucket capacity:
-
Other
-
Engine Brand:
-
YANMAR
-
Power:
-
7.6KW/3000 rpm
-
Place of Origin:
-
China
-
Brand Name:
-
Runtx
-
Maximum Digging Height:
-
2450MM
-
Maximum Digging Depth:
-
1760MM
-
Machine Weight:
-
9000 kg
-
Max Digging Radius:
-
1490MM
-
Rated Speed:
-
1.2 km/h
-
Marketing Type:
-
New Product 2024
|
Model
|
|
RTX08
|
RTX10
|
RTX15
|
|
Bucket Capacity
|
m³
|
0.023
|
0.023
|
0.025
|
|
Swing Spead
|
rnp
|
0-13
|
0-13
|
11-13
|
|
Gradeablity
|
|
30
|
30
|
30
|
|
Max.Bucket DiggingForce
|
KN
|
7.5
|
7.2
|
9
|
|
Mex.Arm DiggingForce
|
|
4.6
|
4.6
|
5.5
|
|
Selfweight
|
KG
|
804
|
1200
|
1500
|
|
Engine Model
|
|
KD192F-1
|
KD192F-1
|
D722
|
|
Power/revolutionspeed
|
kw/rmp
|
7/3000
|
7/3000
|
10.2/2500
|
|
System Pressure
|
MPa
|
18
|
16
|
20
|
|
Length*Width*Heigh
|
MM
|
10.2/2500
|
2840x880x2220
|
3329x990(1300)x2290
|
|
Cabin Height
|
|
2030
|
2220
|
2267
|
|
Axle Base
|
|
855
|
900
|
1190
|
|
Wheel Distance
|
|
580
|
660
|
790
|
|
Minimum groundclearance
|
|
80
|
132
|
153
|
|
Tail Swing Radius
|
|
880
|
800
|
655
|
|
Max.Digging Height
|
|
2560
|
2600
|
2955
|
|
Max.DumpingHeight
|
|
1780
|
1830
|
2077
|
|
Max.Digging Depth
|
|
1000
|
1715
|
2017
|
|
Max.Vertical Digging Depth
|
|
1083
|
1590
|
1610
|
|
Max.Digging Radius
|
|
2649
|
3065
|
3529
|

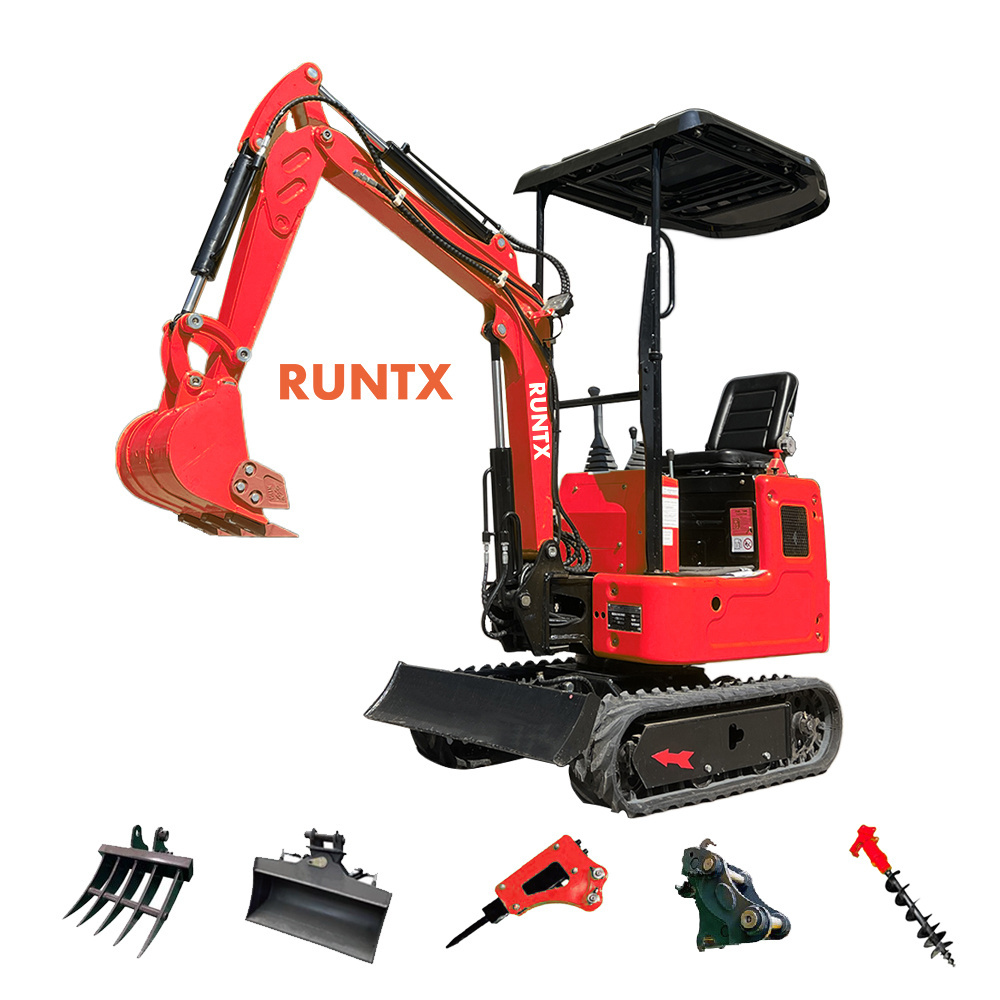

RUNTX Brand Excavator
1.Using Kubota engine. low noisevlow vibration of environmental protection design
2.Operation table a new upgrade operation button,work more efficient
3.Engineering specific, sealing ring for American Pike, with buffer device
4.Using a casting process to connect the central support, strong and durable
5.The whole series can be customized according to customer requirements color, logo.
6.The whole series can be equipped with different attachments and engines
2.Operation table a new upgrade operation button,work more efficient
3.Engineering specific, sealing ring for American Pike, with buffer device
4.Using a casting process to connect the central support, strong and durable
5.The whole series can be customized according to customer requirements color, logo.
6.The whole series can be equipped with different attachments and engines
