Quick Details
-
Place of Origin:
-
Shandong, China, Shandong province of China
-
Brand Name:
-
Chiese Zeyi brand
-
Working width:
-
250mm
-
Working depth:
-
180mm-200mm
-
Diameter of disc:
-
660 mm * 5 mm
-
Ground clearance:
-
>160 mm
-
Dimension of disc:
-
20/24/28/32/36/48 pcs
-
Maximum working angle:
-
23
-
Drive type:
-
Trailed
-
MOQ:
-
1set
Quick Details
-
Weight (KG):
-
1350
-
Type:
-
heavy disc harrow
-
Use:
-
farm tillage
-
Place of Origin:
-
Shandong, China, Shandong province of China
-
Brand Name:
-
Chiese Zeyi brand
-
Working width:
-
250mm
-
Working depth:
-
180mm-200mm
-
Diameter of disc:
-
660 mm * 5 mm
-
Ground clearance:
-
>160 mm
-
Dimension of disc:
-
20/24/28/32/36/48 pcs
-
Maximum working angle:
-
23
-
Drive type:
-
Trailed
-
MOQ:
-
1set

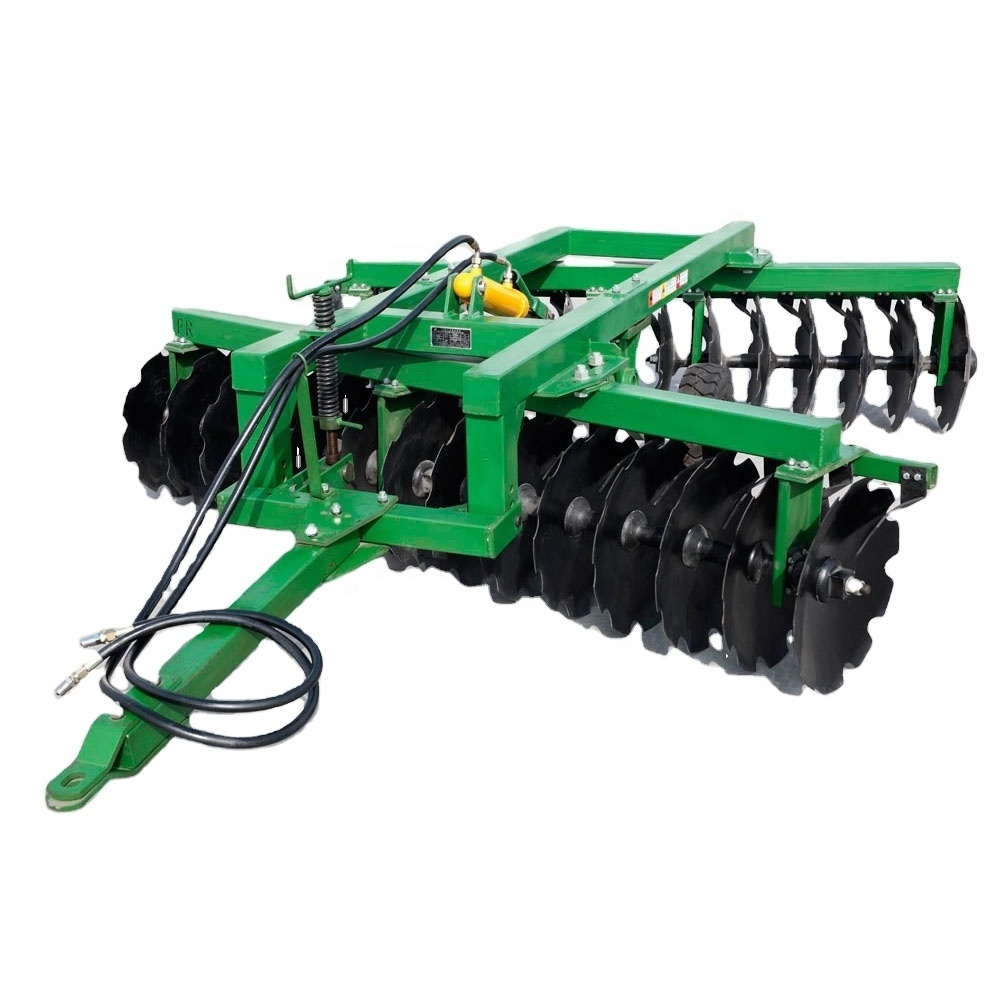

1BZ series hydraulic pressure offset heavy disc harrow/plough: there are high working efficiency, strong capability into the soil, after plough loosen soil.
And can highly adapt to the sticky heavy soil, uncultivated field and those plots of many weeds.
Those harrow/plough are made by square tubes welded together which ensures simple structure and good rigidity.
The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of the harrow is dramatically improved.
| 1BZ- disc plough | |||||||
| Model | ZY-1BZ-2.2 | ZY-1BZ-2.5 | ZY-1BZ-3.0 | ||||
| Diameter of disc | 660 mm *5 mm | ||||||
| Weight (kg) | 1250 | 1350 | 1430 | ||||
| Working width (m) | 2.2 | 2.5 | 3 | ||||
| Working depth (mm) | 180-200 | 180-200 | 180-200 | ||||
| Ground clearance (mm) | >160 | >160 | >160 | ||||
| Maximum working angle | 23 | 23 | 23 | ||||
| Nos of disc blade | 20 | 24 | 28 | ||||
| Matched power (hp) | 80 | 80 | 100 | ||||
| Linkage | Trailed | ||||||
| 1BZ- disc plough | |||||||
| Model | ZY-1BZ-3.4 | ZY-1BZ-4.0 | ZY-1BZ-5.3 | ||||
| Diameter of disc | 660 mm * 5 mm | ||||||
| Weight (kg) | 1550 | 1650 | 1780 | ||||
| Working width (m) | 3.4 | 4 | 5.3 | ||||
| Working depth (mm) | 180-200 | 180-200 | 180-200 | ||||
| Ground clearance (mm) | >160 | >160 | >160 | ||||
| Maximum working angle | 23 | 23 | 23 | ||||
| Numbers of disc blade | 32 | 36 | 48 | ||||
| Matched power (hp) | 120 | 120 | 140 | ||||
| Linkage | Trailed | ||||||
| FEATURES OF ZEYI 1BZ HEAVY DISC HARROW | |||||||
|
Feature 1: Reinforced Heavy Harrow.1.2-1.3 times heavier than Normal other factory heavy harrow,with compact structure, 120×120mm rectangle square tube steel,connection part of harrow frame is stranthened.Most powerful ability of breaking up soil.
|
|||||||
|
Feature 2: Sealed Bearing Combination.8 sealed bearing combinations,effectively prevent soil and dirty damage to the bearing.
|
|||||||
|
Feature 3: More big hydraulic pressure transport rubber tire and rim,type:400-16.
|
|||||||
|
Feature 4: Surface treatment-Baking finish or power coating,well resist ability in collision of coating surface.
|
