Quick Details
-
Brand Name:
-
OEM
-
Weight (KG):
-
0.01 KG
-
Product name:
-
Mini laser module
-
Wavelength:
-
450nm
-
Output power:
-
≤5mW
-
CDRH Class:
-
I, II, IIIa
-
Material:
-
Brass or aluminium
-
Aperture:
-
D1.0mm, D1.5mm, D2.0mm, D2.4mm, D3.0mm
-
Input Voltage:
-
3.0V, 5.0V, 9.0V, 12V, 24V
-
Operating Temperature:
-
0.6mrad, 0.8mrad, 1.0mrad, 1.5mrad, 2.0mrad, 2.5mrad, 3.0mrad
-
Lens:
-
Optical Glass Lens
-
Laser Drive Modes:
-
CW, Analog Modulation, Digital Modulation
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Spare Parts Type:
-
Laser Component
-
Marketing Type:
-
Hot Product 2020
-
Brand Name:
-
OEM
-
Weight (KG):
-
0.01 KG
-
Product name:
-
Mini laser module
-
Wavelength:
-
450nm
-
Output power:
-
≤5mW
-
CDRH Class:
-
I, II, IIIa
-
Material:
-
Brass or aluminium
-
Aperture:
-
D1.0mm, D1.5mm, D2.0mm, D2.4mm, D3.0mm
-
Input Voltage:
-
3.0V, 5.0V, 9.0V, 12V, 24V
-
Operating Temperature:
-
0.6mrad, 0.8mrad, 1.0mrad, 1.5mrad, 2.0mrad, 2.5mrad, 3.0mrad
-
Lens:
-
Optical Glass Lens
-
Laser Drive Modes:
-
CW, Analog Modulation, Digital Modulation
Product Description

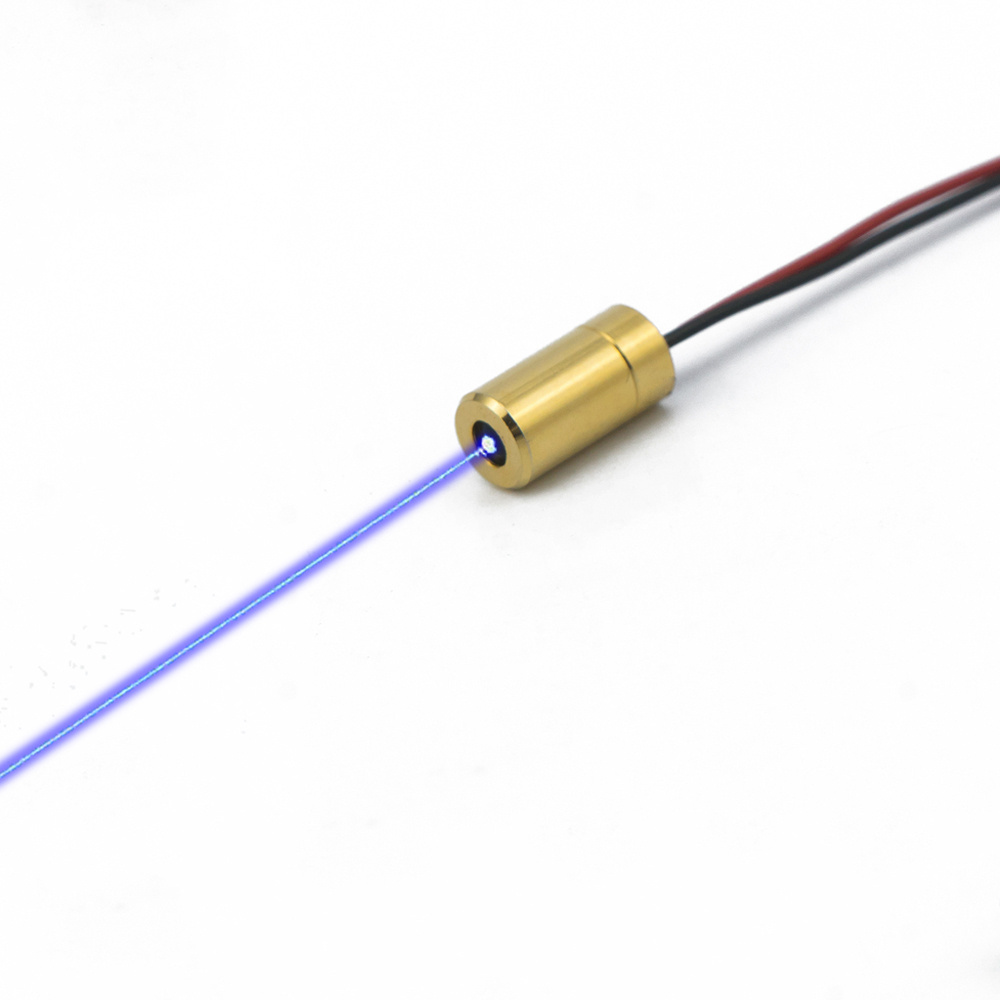

ELITE Mini size Laser Diode Module
Elite offers highly customized mini size laser diode module, available waveleght 450nm, 520nm, 635nm, 650nm, 780nm, 850nm with output power less than 5mW. The smallest dimension is Ø3.3x8.0mm. Over 20 years experienced in laser industry, Elite provides top vender level OEM and ODM serives.
Please contact us with your application (or usage scenario) and laser specifications, such as wavelength, output power, the working distance (or range), beam size or line thickness and housing dimension, etc. We will recommend the best product according to your requirements.
Product Features
Compact Size Design
High Performance
High Reliability
High Product Quality
High Quality Elliptical and Circular Beams
Product Applications
Medical equipments laser beauty equipment
Industry Solutions for CNC laser
Industrial Alignment and Medical Alignment
Security and Transport
IPL Laser hair removal
Product Specification
|
Wavelength
|
450nm
|
|
Output Power
|
≤5mW
|
|
CDRH Class
|
IIIa
|
|
Material
|
Brass or aluminium
|
|
Aperture
|
Ø1.0mm, Ø1.5mm, Ø2.0mm, Ø2.4mm, Ø3.0mm
|
|
Divergence
|
0.6mrad, 0.8mrad, 1.0mrad, 2.0mrad, 3.0mrad
|
|
Laser Drive Modes
|
CW, Analog Modulation, Digital Modulation
|
|
Lens
|
Optical Glass Lens
|
|
Operating Temperature
|
-10°C ~ 50°C
|
|
Storage Temperature
|
-40°C ~ 85°C
|
|
MTBF
|
>8,000 Hours
|
|
MOQ
|
1 Piece
|
