Quick Details
-
Model Number:
-
Customized
-
Thickness:
-
10-38mm
-
Size:
-
Customized
-
Cleat Height:
-
5-7mm
-
Texture type on surface:
-
Can be customized
-
Loading Capacity:
-
50-150 tons
-
Payment Terms:
-
L/C, T/T
-
Packing:
-
Stell frame, wooden box, wooden plate
-
MOQ:
-
1 piece
-
Logo:
-
Can be customized
-
Trading terms:
-
eXW, FOB, FCA, CIF CFR, DAP, DDP
Quick Details
-
Processing Service:
-
Compression Molding or Extrusion molding
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QINGCHENG
-
Model Number:
-
Customized
-
Thickness:
-
10-38mm
-
Size:
-
Customized
-
Cleat Height:
-
5-7mm
-
Texture type on surface:
-
Can be customized
-
Loading Capacity:
-
50-150 tons
-
Payment Terms:
-
L/C, T/T
-
Packing:
-
Stell frame, wooden box, wooden plate
-
MOQ:
-
1 piece
-
Logo:
-
Can be customized
-
Trading terms:
-
eXW, FOB, FCA, CIF CFR, DAP, DDP
-The unique surface is regarded as the most effective in the market and is ideal when weather or ground conditions rapidly deteriorate
-Strong, easy and fast to install.
-Grooves help push out mud and grit.
-Connectors, flexible bending is particularly for uneven ground.
-TEMPERATURE: the mats can be easily removed at extremely low temperature, for mats combine with ice and snow.
-Resistance to rust and corrosion, so can be reused.
Material Mechanical propert ies: HDPE or UHMWPE
|
Item |
Units |
ASTM test |
HDPE |
UHMW-PE |
|
Tensile strength |
PSI |
D-638 |
4000 |
3100 |
|
Flexural modulus |
PSI |
D-790 |
200000 |
110000 |
|
Notched impact |
Ft-lbs/in of notch |
D-256 |
1.3 |
18 |
|
Heat deflection temperature at 66 p si |
℉ |
D-648 |
172 |
- |
|
Maximum continuous service temperature in air |
℉ |
|
- |
180 |
|
Water absorotion |
% |
D-570 |
0.10 |
slight |
|
Coeff i c i ent of liner thermal expansion |
In/in℉10-5 |
D-696 |
7 |
11.1 |
Properties of Virgin Grade Material
|
Property |
Test method |
Virgin material |
Unit |
|
Molecular we i ght |
|
3-9 million |
g/mol |
|
Density |
I SO1183- 1: 2012 / D I N53479 |
0.92-0.98 |
g/cm³ |
|
Compression strength |
ISO 604:2002 |
≥ 32 |
Mpa |
|
Tensile strength |
ISO 527-2:2012 |
≥ 22 |
Mpa |
|
Elongation at break |
ISO 527-2:2012 |
≥ 280 |
% |
|
Dynamic friction coefficient |
ASTM D 1894/GB10006-88 |
≤ 0.18 |
|
|
Notched impact strength(charpy) |
ISO 179-1:2010/GB/T 1043.1-2008 |
≥ 100 |
KJ/m³ |
|
Vicat softing point |
ISO 306:2004 |
≥ 80 |
℃ |
|
Hardness shore-D |
ISO 868:2003 |
61-66 |
D |
Two different processing way : Compression Molding or Extrusion molding according to different thickness and load capacity

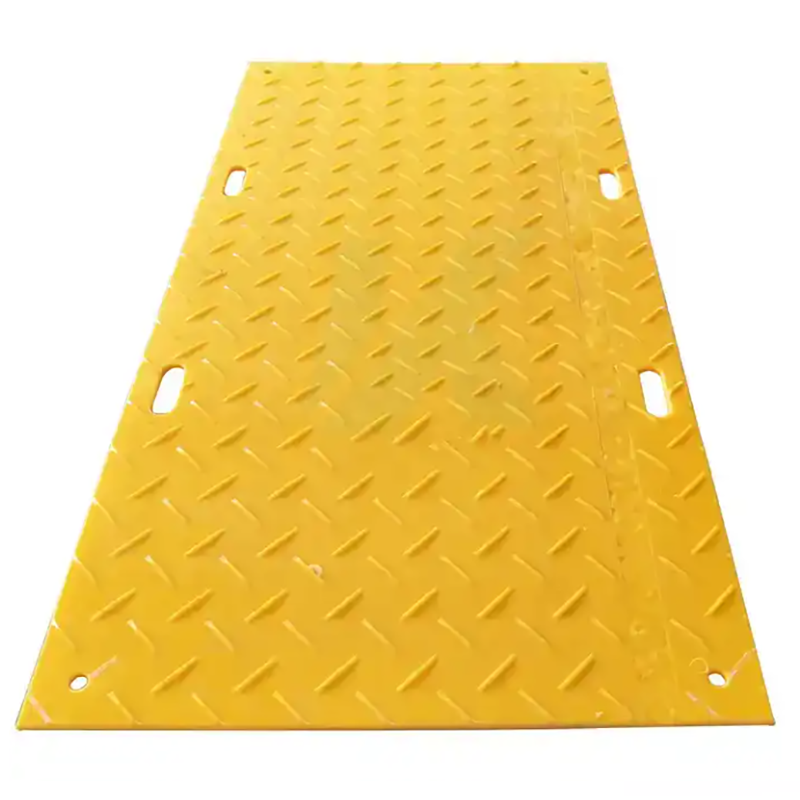

Standard size of the road mats
2440x1220mm 8'x4'
2440x900mm 8'x3'
1820x600mm 6'x2'
1220x600mm 4'x2'
2440x1100mm 8'x3'8"
Thickness : 10mm, 12.7mm, 15mm, 18mm, 20mm, 27mm ,30mm,35mm,38mm
Cleat Height : 5-7mm
Texture type on surface: can be customized as your demand
Loading Capacity : 50-150 tons according to different thickness and materials.
