Professional Full HD Satellite DVB-S2 Receiver with ASI output

FOB Reference Price: Get Latest Price

≥1 Sets

US $500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Sichuan, China

Brand Name:: shineco

Model Number:: SNK-6363

Input:: DVB-C/S2/T2 tuner option

Application:: Digital IPTV Headend

Local interface:: LCD + control buttons

Output:: IP UDP/RTP protocol, unicast and Multicast

output channel:: support 48 SPTS out

Warrantly:: 5 years

Model:: Satellite DVB-S2 Receiver

Transmission Bit-rate:: Maximum total bit-rate is 800Mbps

IP out protocol:: UDP

Output interface:: 4 ASI and 4 IP

Quick Details

FTA(Free To Air):: Yes

Type:: Digital

High Definition:: NO

Place of Origin:: Sichuan, China

Brand Name:: shineco

Model Number:: SNK-6363

Input:: DVB-C/S2/T2 tuner option

Application:: Digital IPTV Headend

Local interface:: LCD + control buttons

Output:: IP UDP/RTP protocol, unicast and Multicast

output channel:: support 48 SPTS out

Warrantly:: 5 years

Model:: Satellite DVB-S2 Receiver

Transmission Bit-rate:: Maximum total bit-rate is 800Mbps

IP out protocol:: UDP

Output interface:: 4 ASI and 4 IP

Professional Full HD Satellite DVB-S2 Receiver with ASI output

--- Latest Price please add skype: nancydvb

Product Description

Outline

Multi-Channel CI Receiver is a SHINECO ’s new design which integrates demodulation and de-scrambler in one case to convert RF signals into TS output after re-mux.It is a 1-U case which supports Max 2 demodulation modules. The 2 CAMs/CIs accompanied in each demodulation module can decrypt programs inputting from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device.BISS function is also embedded to descramble programs from any input.To meet customers’ various requirements, Each demodulation module of SNK6363 is also equipped with 1 ASI in and 16 IP inputs for re-mux, and output 1 MPTS and 16 SPTS with 1 ASI out port and 1 data port.

Key features

* 2 or 4 Tuner (DVB-C/T/ISDB-T switchable or DVB-S/S2/S2X or ATSC optional) inputs for each demodulation module

* 1 ASI & 16 IP (UDP/RTP) inputs for re-mux

* One CAM can decrypt multiple programs from Tuners/ASI/IP

* Support BISS descrambling

* IP (1 MPTS & 16 SPTS) over UDP and RTP output; ASI out for MPTS

* Support maximum 256 PID mapping

* Remote control and Firmware, web NMS management

* Updates via web

* Best quality and breakthrough price

Specification

Input(per demodulation module)	2 or 4* tuner inputs (DVB-C/T/ISDB-T switchable or DVB-S/S2/S2X or ATSC optional), F type 1ASI input for re-mux, BNC interface 16IP input for re-mux (UDP/RTP)
Tuner Section	Multi-mode tuners switchable (New)	DVB-C	Input Frequency			60 ~890 MHz
			Standard			J.83A, J.83C	J.83B
			Constellation			16/32/64/128/256 QAM	64/256 QAM
		DVB-T	Input Frequency			60 ~890 MHz
			Bandwidth			6/7/8 M
		ISDB-T	Input Frequency			60 ~890 MHz
	Satellite	DVB-S	Input Frequency			950~2150MHz
			Symbol rate			0.5~45Msps
			Signal Strength			- 65- -25dBm
			FEC			1/2, 2/3, 3/4, 5/6, 7/8
			Constellation			QPSK
			Max input bitrate			≤170 Mbps
		DVB-S2	Input Frequency			950~2150MHz
			Symbol rate			QPSK/8PSK /16APSK :0.5~45 Msps 32APSK: 0.5~40Msps;
			FEC			QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
			Constellation			QPSK, 8PSK, 16APSK, 32APSK
			Max input bitrate			≤170 Mbps
		DVB-S2X	Input Frequency			950~2150MHz
			Symbol rate			QPSK/8PSK /16APSK :0.5~45 Msps 8APSK: 0.5~40Msps 32APSK: 0.5~40Msps
			FEC			QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9
			Constellation			QPSK, 8PSK, 8APSK, 16APSK, 32APSK
			Max input bitrate			≤170 Mbps
	ATSC	ATSC	Input Frequency			54-858MHz
			Bandwidth			6 M
			Constellation			8 VSB
Descrambling		CAM/CI Quantity			2 (per demodulation module)
		BISS Mode			Mode 1, Mode E
Output (per demodulation module)		1MPTS & 16SPTS over UDP, RTP. 1000 Base-T Ethernet interface (unicast / multicast)
		1×ASI mirrored out of MPTS, BNC interface
System		Remote management		Web-server Management
		Language		English
		Upgrade		web management
Miscellaneous		Dimension		48230044mm (W×L×H)
		Environment		0~45℃(work);-20~80℃(Storage)
		Power requirements		100~240VAC, 50/60Hz
		Power consumption		15W

Order Guide

Please specify both Demodulation module and Tuner Input options when you place order:

Demodulation Module	Option 1	1*Demodulation module, 2 CAM/CI Slots
Demodulation Module	Option 2	2*Demodulation modules, 4 CAM/CI Slots

Tuner Input (per demodulation module)	Option 1	2*DVB-S/S2/S2X tuner
	Option 2	2*DVB-C/T/ISDB-T tuner
	Option 3	2*ATSC tuner
	Option 4	4*DVB-S/S2/S2X tuner
	Option 5	4*DVB-C/T/ISDB-T tuner
	Option 6	4*ATSC tuner
	Option 7	2DVB-S/S2/S2X tuner + 2DVB-C/T/ISDB-T tuner
	Option 8	2DVB-S/S2/S2X tuner + 2 ATSC tuner
	Option 9	2DVB-C/T/ISDB-T tuner + 2ATSC tuner

Principle chart

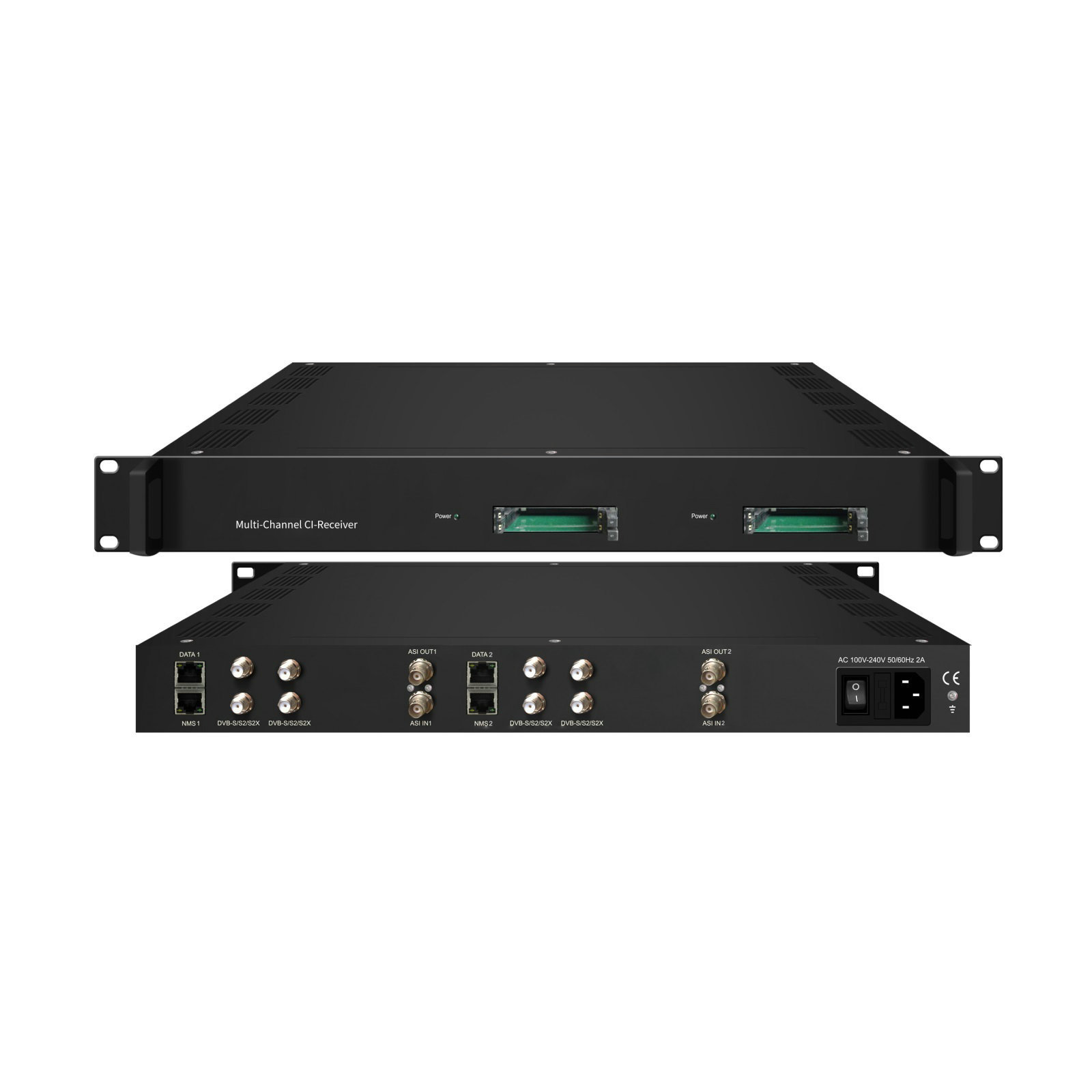

Front and Rear Panel of satellite IRD

Besides this model,we also have 4 in 1 DVB-S2/T2/C IRD with mux function, 4 in 1 DVB-S2/T2/C IRD with 48 SPTS out, 2 in 1 DVB-S2 HD IRD, HD IRD with BISS function model for you choose, if you need the details,welcome to add skype:nancydvb.
