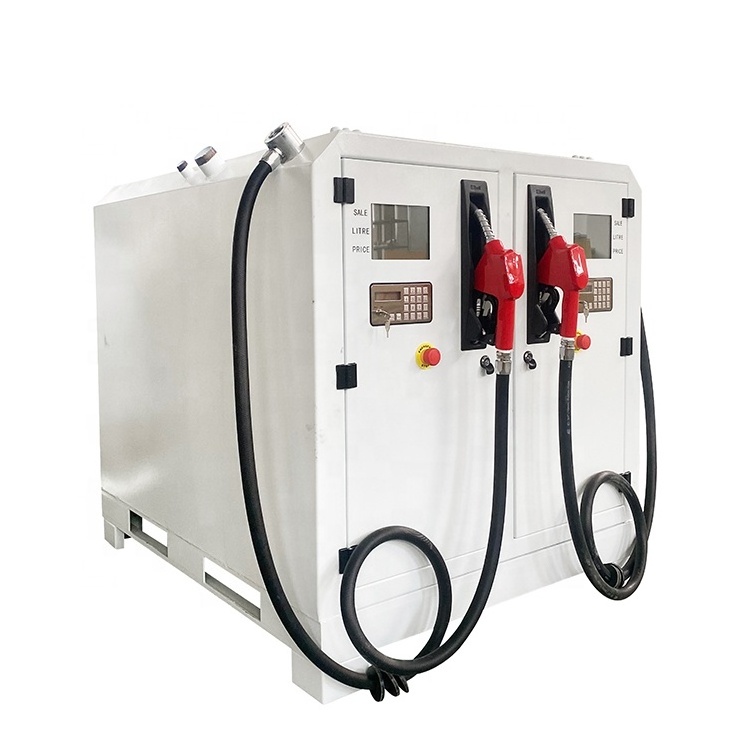

Diesel Dispenser Gas Fuel Pump Mini Portable Fuel Station with 3000L Fuel Tank

Diesel Dispenser Gas Fuel Pump Mini Portable Fuel Station with 3000L Fuel Tank

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1900

≥5 Pieces

US $1820

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Medium:: Petrol, Gasoline, Diesel, Kerosene

Voltage:: DC 12V/24V, AC110V/220V

Volume:: 1000L, 2000L, 3000L

Pump:: Ex-proof or non ex-proof model

Flow meter:: Benett,Tokheim, Tatauno, Gilbarco, Wayne

Nozzle:: OPW,TATSUNO,HUSKY,HEALY,Automatic shut-off

Accuracy:: ±0.30%

Flow rate:: 35-40L/min

Pos/protocol:: ZCHENG,Tatsuno,Gaskit,IFSF,PTS,ITL integrated

Certificate:: OIML,CE,ATEX,SIRA,COC,SONCAP,SASO,NRCS,CMC

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: ZCHENG

Model Number:: Skid series

Medium:: Petrol, Gasoline, Diesel, Kerosene

Voltage:: DC 12V/24V, AC110V/220V

Volume:: 1000L, 2000L, 3000L

Pump:: Ex-proof or non ex-proof model

Flow meter:: Benett,Tokheim, Tatauno, Gilbarco, Wayne

Nozzle:: OPW,TATSUNO,HUSKY,HEALY,Automatic shut-off

Accuracy:: ±0.30%

Flow rate:: 35-40L/min

Pos/protocol:: ZCHENG,Tatsuno,Gaskit,IFSF,PTS,ITL integrated

Certificate:: OIML,CE,ATEX,SIRA,COC,SONCAP,SASO,NRCS,CMC

Product Description

Product Name	Tatsuno fuel dispenser
Ambient temperature	-25℃~+55℃
Humidity	≤90%
Flow rate	5~40L/min to 5~220L/min
Nozzle	Auto. shut-off
Suction distance	6m(vertical),50m(horizontal)
Accuracy	±0.30%
Repeating tolerance	≤0.15%
Hose	3m(low hang),4.5m(high hang),as customized
Inlet pressure	≥54KPa
Outlet pressure	≤0.3MPa
Voltage	220V/380V(50/60Hz)
Power	1HP(0.75Kw)
Noise	≤80dB(A class)
Unit price range	0.01~999.99
Single volume range	0.01~999999.99
Accumulative volume range	0.01~9999999999.99
Explosion-proof signal	ExdmbIIAT3

ZCHENG skid fuel station with tank

ZCQ-1000 (diesel or gasoline)	Single wall Fuel storage tank 1xtank 1000L,1xpump,1xflow meter,1xnozzle ,1x Controller ,1x Fliter, 1x Vent valve ,1x Electric Liquid level meter, 1x Manhole, 1x Extinguisher
ZCQ-1000-2(diesel or gasoline）	Single wall Fuel storage tank 2xtank 500L,2xpump,2xflow meter,2xnozzle ,2x Controller ,2x Fliter ,2x Vent valve ,2x Electric Liquid level meter , 2x Manhole, 2x Extinguisher
ZCQ-2000 (diesel or gasoline）	Single wall Fuel storage tank 1xtank 2000L,1xpump,1xflow meter,1xnozzle ,1x Controller ,1x Fliter, 1x Vent valve ,1x Electric Liquid level meter, 1x Manhole, 1x Extinguisher
ZCQ-2000-2(for diesel or gasoline)	Single wall Fuel storage tank 2xtank 1000L,2xpump,2xflow meter,2xnozzle ,2x Controller ,2x Fliter ,2x Vent valve ,2x Electric Liquid level meter , 2x Manhole, 2x Extinguisher

Tatsuno type

* Gear pump

* flow meter 4 pistons

* material:Aluminum

* flow rate:5~45L/min 3/4"

5~70L/min 1"

* high accuracy,long lifetime,

perfect performance

Tokheim type

* Gear pump

* material:Cast Iron

* flow rate:5~40L/min 3/4"

5~65L/min 1"

* high accuracy,long lifetime,strong and durable

Bennett type

* Vane pump

* flow meter:4 pistons

* material:Aluminum

* flow rate:5~50L/min 3/4"

5~75L/min 1"

* high accuracy, perfect performance

Detailed Images

Packing&Shipping

Hard carton and Wooden case for your option

After Sales Service

An experienced and reliable after sales service team

* Technical inquiry or consulting support

* Technical training are available

* Overseas service available if necessary

* After-sales technical consulting support

* 1 year warranty for the quality

Company Introduction

Advantages

Zheijang Genuine Machine Co.,Ltd is one of the leading fuel dispenser ,LPG dispenser manufacturing in China covering more than 6000 square meters,with a modern high-tech auto production line.We have an experienced technique sales and after-sales service team to produce high quality ,advanced technical machine and offer best service to customers all over the world.if you choose our machine,you will get fuel dispenser with:

1.High quality with OIML,CE,CNEX,ISO9001 latest standard

2.Competitive price

3.Multiple functions 4.Easy to operate and maintain

5.Popular design with customized 6.Environmental.water-proof and tamper-proof

FAQ

Q1: Are you factory or trading company?

A:We are professional manufacturer for over 20 years. Q2:What kind of products do you make?

A:We produce professional fuel dispenser,LPGdispenser,CNGdispenser,

mobile fuel dispenser,pump,flowmeter,nozzle..etc... Q3:Can you supply Customized service? A:Yes. Q4:Is that your fuel dispenser easy to operate?

A:Yes,each fuel dispenser packed together with one guide book to help

you get more information of our fuel dispenser,guide you operate

in the correct way, and future maintain.

Q5:What can we do if we meet problem and need technical consulting?

A:please give us details of the problem you have,any picture or video

will be more better to help us find a solution for you.
