Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BUMBLEBEE
-
Car Model:
-
Universal
-
Model Number:
-
BFIT-08
-
Product Description:
-
8 Cylinders Fuel Injector Cleaning Testing Machine
-
Surface Finish:
-
Brand NEW
-
Customizable:
-
yes
-
Package:
-
Individual pacakge
-
Power:
-
AC220V±15%;50HZ;400W
-
Working Temperature:
-
-10℃-+40℃
-
Adjustable Voltage:
-
0-24V
-
Net Weight:
-
54KGS
-
Cylinder:
-
8
-
Color:
-
Red
Quick Details
-
OE NO.:
-
BFIT-08
-
Size:
-
63*61*74CM
-
Warranty:
-
12 Months
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BUMBLEBEE
-
Car Model:
-
Universal
-
Model Number:
-
BFIT-08
-
Product Description:
-
8 Cylinders Fuel Injector Cleaning Testing Machine
-
Surface Finish:
-
Brand NEW
-
Customizable:
-
yes
-
Package:
-
Individual pacakge
-
Power:
-
AC220V±15%;50HZ;400W
-
Working Temperature:
-
-10℃-+40℃
-
Adjustable Voltage:
-
0-24V
-
Net Weight:
-
54KGS
-
Cylinder:
-
8
-
Color:
-
Red
Products Description

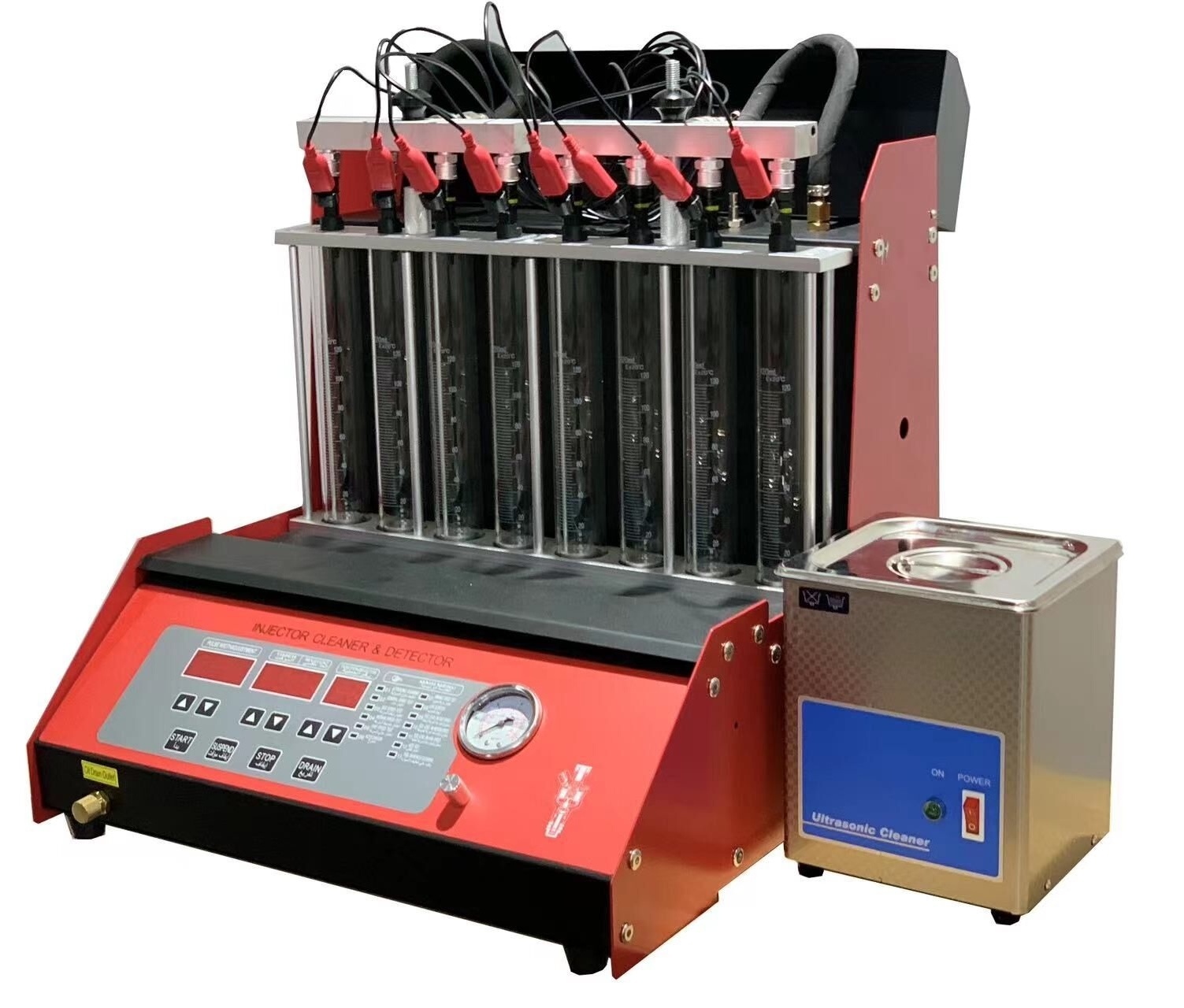

Brand NEW 8 Cylinders Fuel Injector Cleaning Testing Machine BFIT-08
|
Product Description
|
Fuel Injector Cleaning Tesing Machine
|
|
Reference No.
|
BFIT-08
|
|
Application
|
Gasoline Fuel Injectors
|
|
Cylinder
|
8
|
|
Item Condition
|
Brand NEW
|
|
Warranty
|
1 Year
|
|
Lead time
|
within 10-15 Days
|
|
Customization
|
Yes
|
|
Weight
|
54KGS/PC
|
|
Package
|
63*61*74CM
|
8-cylinder fully automatic test, automatic oil return, external ultrasonic (100W), observe the atomization condition of the fuel injector through the backlight, fully automatically simulate the full range of normal spray, idle, medium speed, high speed, and variable speed operation of the fuel injector process. Identify whether each injector has the same switching cycle, digital display, imported parts configuration, pressure gauge pressure display, unique oil pump protection and environmentally friendly ultra-quiet operation mode.
The fuel system can be cleaned without disassembly. Optional connectors are required. Luxurious oil regulators and sleeves are optional for cleaning the side fuel nozzles.
Technical Data:
Voltage: AC220V/110V±10%, 50/60Hz
Operation Temperature:-10C°～40ºｃ
Tank Capacity: 6L
Test Tube Capacity: 125CC
Ultrasonic Frequency: 28KHZ±0.5 KHZ
Rotation Speed: 0～15000r/min
Step: 100r/min
Time Counting Range: 0～9900 sec
Step: 50 sec (adjustable)
Oil Pump Pressure: 1.8kg/cm²----10kg/cm²
Fuel Flow: 4.5 L/min
Pulse width:
0-20ms; step 0.1 ms
Main Functions:
1. Engine injector cleaning and detecting;
2. Test 8 injectors in one time
3. Injector fuel distribution and delivery checking;
4. Engine on-car cleaning;
5. Leakage hunting;
6. Injector cleaning;
7. Optional language applicable including English,Spanish, Arabic,Russian.
8. LED display with clear menu and easy operation;
9. Wide models can be tested with stable performance and reliable data;
10. Liquid in tube drain back to tank automatically;
11. Separated ultrasonic bath(Installed in cabinet);
12. Optional:Special adapter for MONO & Side-feed injector;
Packed inside dolly when shipped,CBM save.
1. Engine injector cleaning and detecting;
2. Test 8 injectors in one time
3. Injector fuel distribution and delivery checking;
4. Engine on-car cleaning;
5. Leakage hunting;
6. Injector cleaning;
7. Optional language applicable including English,Spanish, Arabic,Russian.
8. LED display with clear menu and easy operation;
9. Wide models can be tested with stable performance and reliable data;
10. Liquid in tube drain back to tank automatically;
11. Separated ultrasonic bath(Installed in cabinet);
12. Optional:Special adapter for MONO & Side-feed injector;
Packed inside dolly when shipped,CBM save.
Features:
1. Optimal cleaning effect by powerful ultrasonic technique
2. Adopt unique infinitely variable pressure adjustment
3. Feature with protective device for pump overtime running
4. Imitated nine running state of engine for choice
5. Clearly observe the injecting state with fluorescence
6. Suit to test the high/low resistance .voltage/current injectors.
7. Time or count test mode for choice
8. Returning the test fuel by solenoid valve .
9. Buile in protective device for over heat
10. Build in two stage filter system for test fuel.
11. Automatically simulate the nine running state to make test nine memory program
12. Ultrasonic device in the drawer
13. Sharp design for anti-dirt cover
1. Optimal cleaning effect by powerful ultrasonic technique
2. Adopt unique infinitely variable pressure adjustment
3. Feature with protective device for pump overtime running
4. Imitated nine running state of engine for choice
5. Clearly observe the injecting state with fluorescence
6. Suit to test the high/low resistance .voltage/current injectors.
7. Time or count test mode for choice
8. Returning the test fuel by solenoid valve .
9. Buile in protective device for over heat
10. Build in two stage filter system for test fuel.
11. Automatically simulate the nine running state to make test nine memory program
12. Ultrasonic device in the drawer
13. Sharp design for anti-dirt cover
