Modern Climate Controlled Used Cold Frame Green House Polycarbonate Garden Plastic Film Winter Greenhouse For Sale

Modern Climate Controlled Used Cold Frame Green House Polycarbonate Garden Plastic Film Winter Greenhouse For Sale

FOB Reference Price: Get Latest Price

≥100 Square meters

US $3

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: Agricultural Multi-Span Greenhouses

Place of Origin:: Henan, China

Brand Name:: Lucky

Production name:: Green House Polycarbonate Garden Plastic Film Winter Greenhouse

Structure:: hot galvanized steel with 275g/m2 zinc coat

Length:: customize from 16-200m

Width:: 8m-112m,customized

Basic component:: Structure, covering film, air ventilation,doors and insect net

Advantage:: easy installed,economic

Application:: vegetable,tomato,fruit,flower

Ventilation:: Side and top ventilation

Optional system:: cooling/ light/heating /shading net

Quick Details

Size:: Large

Type:: Multi-Span Agricultural Greenhouses

Manufacturer:: Lucky

Model Number:: Agricultural Multi-Span Greenhouses

Place of Origin:: Henan, China

Brand Name:: Lucky

Production name:: Green House Polycarbonate Garden Plastic Film Winter Greenhouse

Structure:: hot galvanized steel with 275g/m2 zinc coat

Length:: customize from 16-200m

Width:: 8m-112m,customized

Basic component:: Structure, covering film, air ventilation,doors and insect net

Advantage:: easy installed,economic

Application:: vegetable,tomato,fruit,flower

Ventilation:: Side and top ventilation

Optional system:: cooling/ light/heating /shading net

Product Description

Characteristic of multi span greenhouse

1) Strong structure in all types of greenhouses ,for morden and high value-added agricutlure farming.
2) Excellent hot galvanized steel structures and accessories , anti-corrosion . 20 year using life.
3) Proprietary technology in PE film , Famouse brand .Guaranteed 4-6 years using life.
4) Ventilation and insect nets can give your planting under comfortable situation. Increasing yield.
5) Cucumbers, tomatos, yield per 1000square meters normally more than 15000kg.

Specification

Specification of multi-span greenhouse
Length	20-100m,customized
Width	8m,16m,24m,32m,.......108m,customized
Roof height	4.5m,5.5m,customized
Wall height( gutter heigth)	2m,3m,4m,customized
Covering Material	150micron or 200micron Plastic film/PO film/PC sheet/Glass
Greenhouse farme	275g/m2 zinc coat Hot galvanized steel pip
Option	Cooling fan,cooling pad,lights,heater,ground cover,shade net,irrigation system
Wind Load	130km/h (If necessary, a stronger skeleton will be designed)
Snow Load	0.5KN/m² (If necessary, a stronger skeleton will be designed)
Rain load	140mm/h (If necessary, a stronger skeleton will be designed)

Details Images

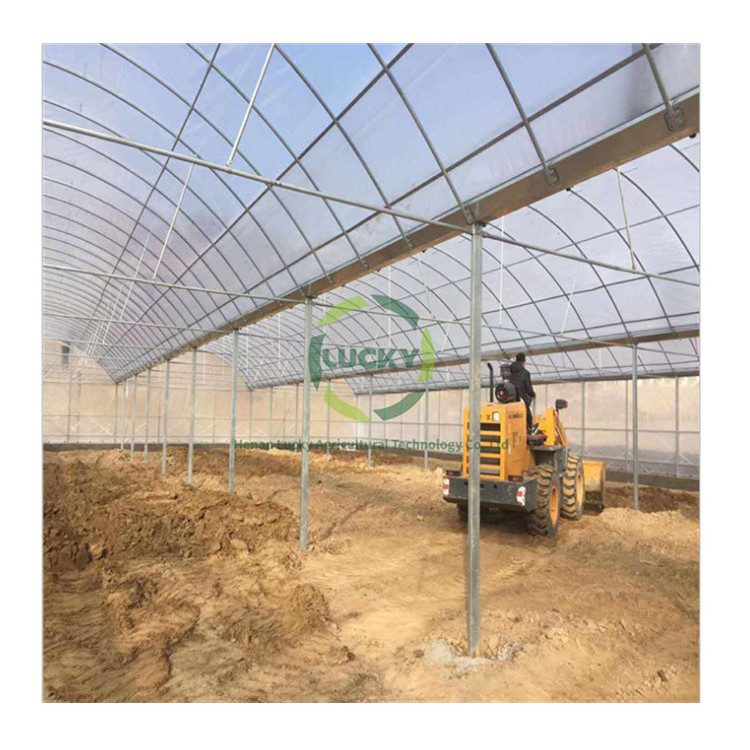

Greenhouse Steel structure

1.275g/sqm zinc coated hot galvanized steel framework,anti-rust,life time over 15 years

2.Arch pipe: Diameter of arch pipe have 25mm,32mm,40mm,48mm,50mm,60mm
3. There is no bare welding points and connected by galvanized bolts, screws, and self-screws

Greenhouse cover material

1.Plstic film/PO film/Wove film ( thickness is 120micron,150micron,200micron,customized)

2.Anti-drip,anti-fog,Anti-UV,High transparency

3.Life time:3-5years(150micron),6-8years(200micron)

Ventilation system

1.Manual roller or Electric roller machine for both sides ventilation and top ventilation

2.40mesh insect net will be offered for vents

Outside/inside shade net

1.The outside shate rate have 65%,75%,85%,95% and so on
2.The inside shade net is silvery,s hading rate: 75%
3.The function is blocking the strong light into the greenhouse, reduction of temperature.

4.The curtain wire is reliable, beautiful in appearance, high carrying capacity and long service life.
