Quick Details
-
Item Number:
-
Key Lock
-
Function:
-
(ON) ON (ON)
-
Mounting Hole Size:
-
19MM
-
Rating Load:
-
2A 250VAC; 4A 28VDC
-
Mechanical Life:
-
10000 cycles
-
Contact Resistance:
-
≤20mΩ
-
Insulating Resistance:
-
≥100mΩ 500V DC
-
Dielectric Strength:
-
1000VAC
-
Operating Temperature:
-
-25°C ~+85°C
-
Air Pressure:
-
86Kpa-106Kpa
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Daier
-
Model Number:
-
K19-05-123
-
Item Number:
-
Key Lock
-
Function:
-
(ON) ON (ON)
-
Mounting Hole Size:
-
19MM
-
Rating Load:
-
2A 250VAC; 4A 28VDC
-
Mechanical Life:
-
10000 cycles
-
Contact Resistance:
-
≤20mΩ
-
Insulating Resistance:
-
≥100mΩ 500V DC
-
Dielectric Strength:
-
1000VAC
-
Operating Temperature:
-
-25°C ~+85°C
-
Air Pressure:
-
86Kpa-106Kpa
Product Description
|
Product Name
|

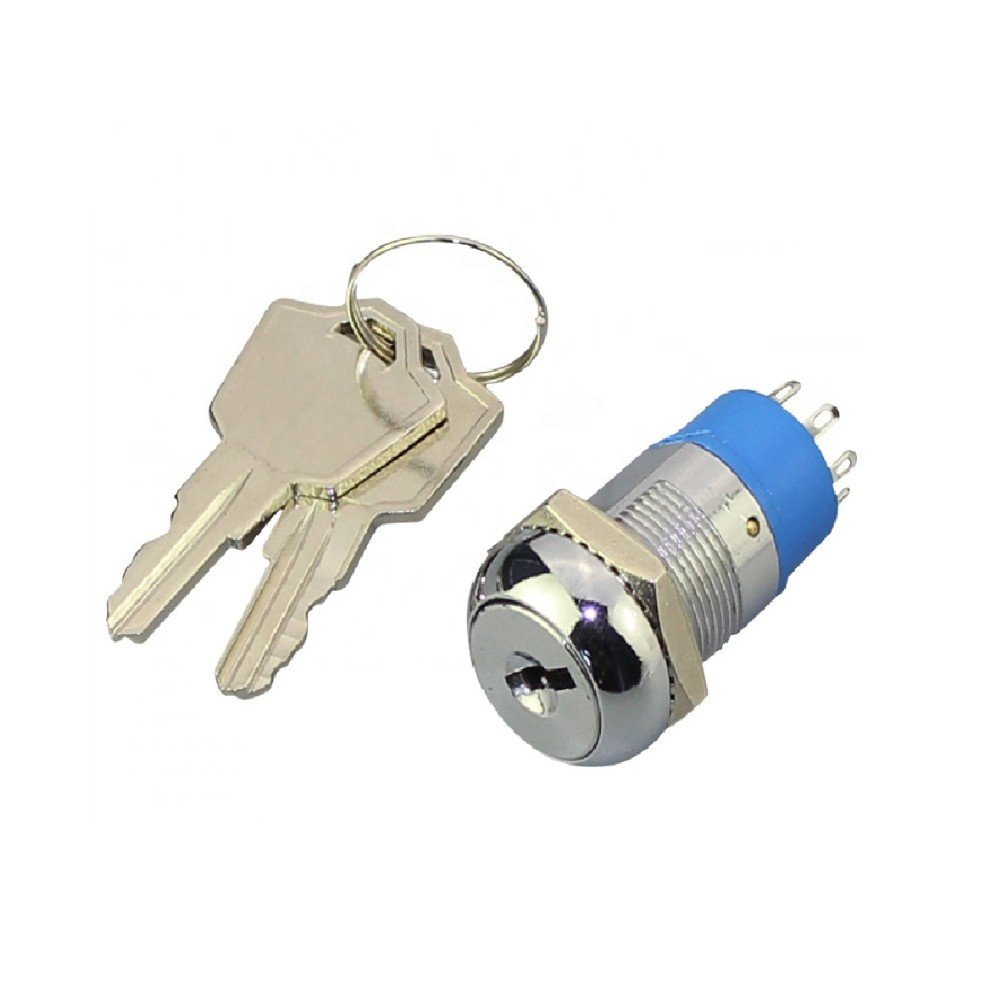

Keyswitch 19MM 3 Position (ON) ON (ON) Key Electrical Switch Key Lock
|
|
Rating
|
2A 250VAC; 4A 28VDC
|
|
Contact Resistance
|
20mΩ Max
|
|
Insulation Resistance
|
100mΩ Min
|
|
Dielectric Strength
|
1000VAC
|
|
Operating Temperature
|
-25°C ~+85°C
|
|
Mechanical Life
|
10000 Cycles
|
