Quick Details
-
Number of Axes:
-
1
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
jinan
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
3300*1950*1950MM
-
Weight (KG):
-
1300
-
Warranty of core components:
-
2year
-
Model:
-
LT-1325
-
Working area:
-
1300*2500*200mm
-
Spindle:
-
3.0kw water cooling spindle
-
Table:
-
Aluminum solt table with PVC
-
Motor and driver:
-
Stepper motor and driver
-
Guide rail:
-
Hiwin linear square guide rail
-
Transmission:
-
ball screw and gear rack
-
Control system:
-
Ncstudio
-
After-sales Service Provided:
-
Free spare parts
Quick Details
-
Working Table Size(mm):
-
1300*2500
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.01 mm
-
Number of Axes:
-
1
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
jinan
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
3300*1950*1950MM
-
Weight (KG):
-
1300
-
Warranty of core components:
-
2year
-
Model:
-
LT-1325
-
Working area:
-
1300*2500*200mm
-
Spindle:
-
3.0kw water cooling spindle
-
Table:
-
Aluminum solt table with PVC
-
Motor and driver:
-
Stepper motor and driver
-
Guide rail:
-
Hiwin linear square guide rail
-
Transmission:
-
ball screw and gear rack
-
Control system:
-
Ncstudio
-
After-sales Service Provided:
-
Free spare parts
Technical parameters
| Model | LT-1325 CNC Router |
| Effective working area | 1300*2500*200mm |
| Table style | Aluminum T-slot table with PVC |
| Guide rail | Hiwin linear square guide rail |
| Driving mode | Taiwan original TBI ball screw for Z axis, gear rack for XY axis |
| Spindle | 3.0KW water cooling spindle |
| Invert | Fuling invert |
| Collect size | ER20 |
| Spindle speed | 0-24000rmp |
| Motors and Drivers | 86BYG-450B stepper motors and MA860H Leadshine drivers |
| Control sytem | Ncstudio |
| Working voltage | AC220V,single phase,50-60hz |
| Standard software | Artcam2010 |
| Compatible software | TYPE3/Artcam |
| Device | Rotary axis |
| Optional parts |
1.Stainless water tank
2. H2-758 Hybrid servo motor and driver |

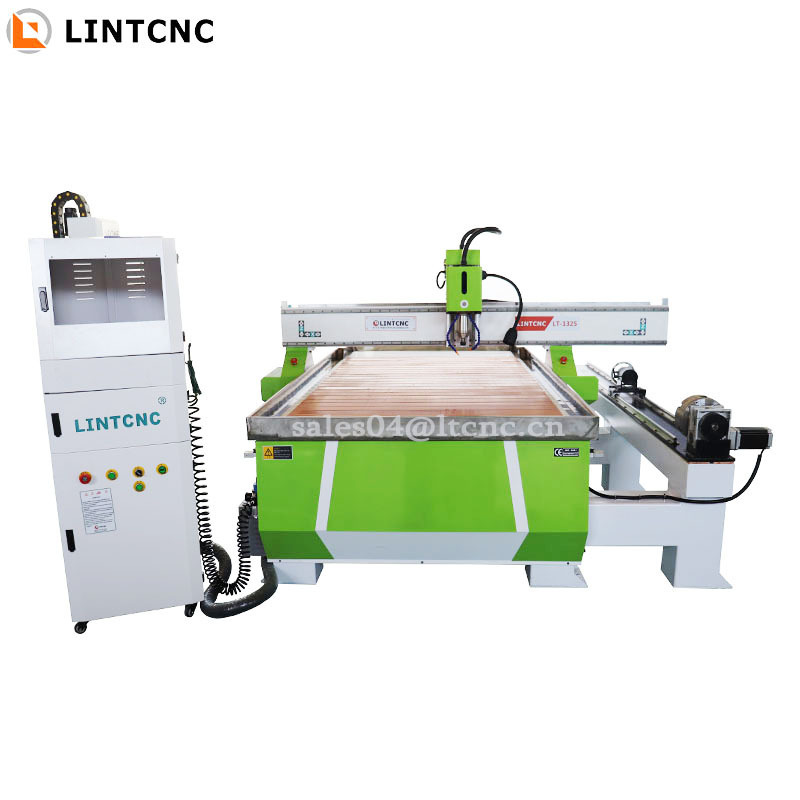

Machine show
Application:
1. Advertising Materials: such as acrylic, plastic, PVC, etc. The cnc router is used for cutting large characters, shape of groove for LED and neon and making sign.
2. Metal: copper, aluminum, stainless steel etc.
3. Wood: all kinds of wood, MDF, plywood. etc.
Package & shipping
Service
After-sale service
1.Two years quality guaranty for the machine and online service everyday day, free technical support.
2.Free training to guarantee you can operate machine correctly.
3.We will provide the consumable parts at an agency price when you need replacement.
4.Our staff can be sent to your company to install or adjust if necessary.
5.The processing demo video and E-catalogue will be mailed as your request.
Technical service
1. Professional technical suggestion before you order a machine.
2. Professional instruction for the operation of machine
3. Compleed machine manual and CD will be provided together with machine.
4. Machine has been adjusted before delivery.
5. 24-hour technical support by email or calling.
6. Machine can e shipped to port within 7 working days after receiving payment
Company information
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There is English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or Skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
for processing and the thickness for materials processing engraving or cutting.
Then perfect suitable cnc router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have
any problem.
we will give you 24hours service from phone and Whatsapp
