Quick Details
-
Brand Name:
-
haylite or OEM
-
Model Number:
-
HLT-pig farrowing crate
-
Product name:
-
2.4X2.1m pig farrowing crate with plastic floor pen
-
Accessories:
-
Water Tank
-
Capacity:
-
one mother hog
-
Usage:
-
pig farrow
-
Feature:
-
Save Space
-
Surface treatment:
-
Hot Dipped Galvanzied
-
Application:
-
Mother Pigs
-
Size:
-
2.4*2.1m
-
weight:
-
240kg
-
delivery time:
-
45 days
Quick Details
-
Type:
-
for farrowing
-
Material:
-
Steel
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
haylite or OEM
-
Model Number:
-
HLT-pig farrowing crate
-
Product name:
-
2.4X2.1m pig farrowing crate with plastic floor pen
-
Accessories:
-
Water Tank
-
Capacity:
-
one mother hog
-
Usage:
-
pig farrow
-
Feature:
-
Save Space
-
Surface treatment:
-
Hot Dipped Galvanzied
-
Application:
-
Mother Pigs
-
Size:
-
2.4*2.1m
-
weight:
-
240kg
-
delivery time:
-
45 days

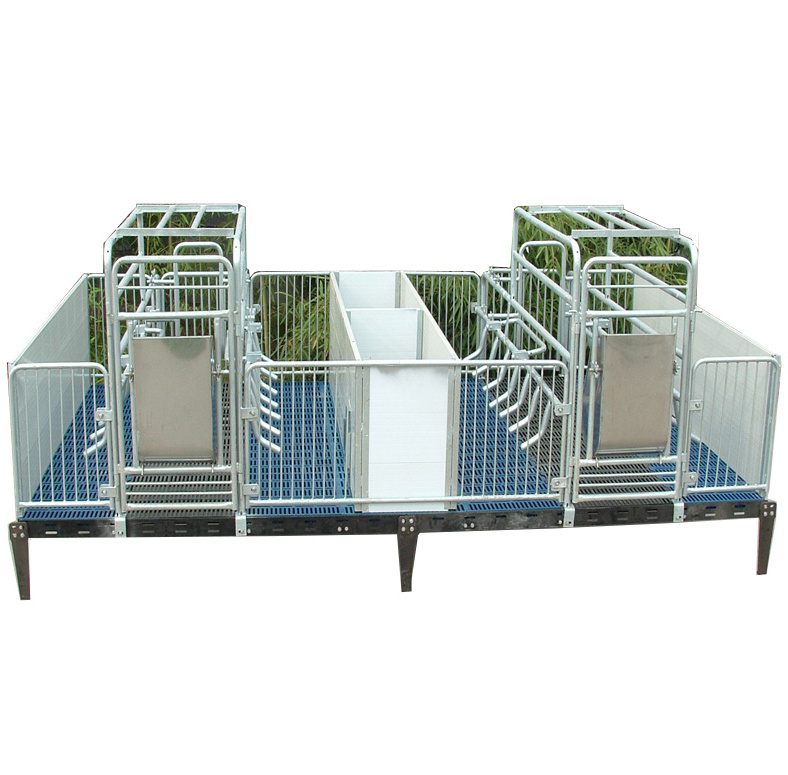

2.4X2.1m pig farrowing crate with plastic pen floor
1.
good quality and competitive price
easy to install
hot dip galvanized
comfortable for animal
steel dining indoxidable
2.
The farrowing crates is hot dipped galvanized after fabricated;
Smooth welds and strong fabrication;
Stainless Steel 304 Feeder offer clean food for your animals;
PVC plank on the rear door prevent piglets coming out;
Palletized.
3.
Advantage of our pig crate
- Increases sow comfort and piglet safety
- Rigid and durable, built to last
- Crates are adjustable and can easily be modified to accommodate your specific sow requirements
- Front and back doors can be mounted left or right with ease
- Card holder and clip, for easy record keeping
- All stainless steel wet/dry feeder, tip out for easy removal and cleaning
- Raised feeder, provides more room for sow, improves air circulation
- Anti-crushing bars, keeps sow in centre of crate and eases her gently to the floor to decrease crushing rates
- Sow and piglet drinkers
| fitting | quantity | weight |
| left wall | 1 | 22.3KG |
| right wall | 1 | 21.8KG |
| front door | 1 | 7.5KG |
| rear door | 1 | 7.9KG |
| side panel | 2 | 17.1KG |
| front and rear side panel | 2 | 2.47KG |
| foot | 6 | 2.8KG |
| front angle steel | 1 | 15KG |
| rear angle steel | 1 | 15KG |
| latch | 12 | 0.42KG |
| plastic slat460*545 | 4 | 1.85KG |
| plastic slat600*545 | 8 | 2.25KG |
| cast iron slat600*545 | 4 | 1.25KG |
| FRP beam 2.18m*120mm | 6 | 2.66KG |
| bracket for beam | 12 | 0.06KG |
| heating box connector | 2 | 7.4KG |
| heating box rod | 2 | 4.24KG |
| bolt | 40 | 0.06KG |
| anchor bolt | 12 | 0.23KG |
| feeder for sow | 1 | 22.5KG |
| FRP heating box 1050*600mm | 2 | 6.7KG |
| heating panel 1050*600mm | 2 | 7KG |
| 1/2"drinking pipe1290mm | 1 | 1.5KG |
| piglet feeder(SS)2kg | 1 | 1.8KG |
| rear lamp rod | 1 | 2.3KG |
| front lamp rod | 1 | 2KG |
Material: steel round bar steel
Length:2190mm
Tall Height :1035mm
Short height:750mm
Width :638mm
Diameter of bar steel:22mm
Diameter of bar steel :12mm
Diameter of pipe of feederf:60mm, thickness of tube of feeder:3mm
And we also have many other types of pig crage, you are highly welcomed to inquiry.
One 20‘container can load 40 sets.
Company Information:
Qingdao Haylite is manufacturing and exporting company since 1993,
It is located in Qingdao Jimo City,shandong province,China ,cover 56000 sqm.
There are excellent managing & technical talents and advanced managing system & technology.
The products are well accepted in U.S.A Canada, Australia, and Europe ets.
Haylite warmly welcomes all friends to cooperate wth us on basis of mutual and equitable benefit.
Our factory owns professional team and equipment below:
CNC punching machine CNC plate bending machine
CNC plasma cutting machine CNC Laser cutting machine
Plate Bending Machine Plate Clipping Machine
Pipe Bending Machines Pipe Swaging Machines
Punching Machines Welding Robot
