Quick Details
-
Max. Spindle Speed (r.p.m):
-
1-4500(factoryr.p.mr.p.mr.p.mr.p.mr.p.mr.p.mr.p.m
-
Width of bed (mm):
-
200 mm
-
Spindle Motor Power(kW):
-
7.5
-
Travel (X Axis)(mm):
-
1020 mm
-
Travel (Z Axis)(mm):
-
250 mm
-
Place of Origin:
-
Guangdong, China
-
Dimension(L*W*H):
-
2400x1500x2000 mm
-
Brand Name:
-
DAS
-
Model Number:
-
DS-6Y (4x4)
-
Voltage:
-
220V/380V,50HZ
-
Weight (KG):
-
3200
-
Applicable Industries:
-
Aluminum spare part
-
CNC or Not:
-
CNC
-
Automatic Grade:
-
Automatic
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
OEM:
-
Accept
-
Max. processing length:
-
250mm
-
Chuck size:
-
6 inch
-
Spindle speed:
-
0-4500r/min
-
Spindle bore diameter:
-
56mm
-
Max.swing diamter:
-
500mm
-
X axis travel:
-
1020mm
Quick Details
-
Type:
-
Y Axis
-
Max. Length of Workpiece (mm):
-
250
-
Year:
-
laest date
-
Max. Spindle Speed (r.p.m):
-
1-4500(factoryr.p.mr.p.mr.p.mr.p.mr.p.mr.p.mr.p.m
-
Width of bed (mm):
-
200 mm
-
Spindle Motor Power(kW):
-
7.5
-
Travel (X Axis)(mm):
-
1020 mm
-
Travel (Z Axis)(mm):
-
250 mm
-
Place of Origin:
-
Guangdong, China
-
Dimension(L*W*H):
-
2400x1500x2000 mm
-
Brand Name:
-
DAS
-
Model Number:
-
DS-6Y (4x4)
-
Voltage:
-
220V/380V,50HZ
-
Weight (KG):
-
3200
-
Applicable Industries:
-
Aluminum spare part
-
CNC or Not:
-
CNC
-
Automatic Grade:
-
Automatic
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
OEM:
-
Accept
-
Max. processing length:
-
250mm
-
Chuck size:
-
6 inch
-
Spindle speed:
-
0-4500r/min
-
Spindle bore diameter:
-
56mm
-
Max.swing diamter:
-
500mm
-
X axis travel:
-
1020mm

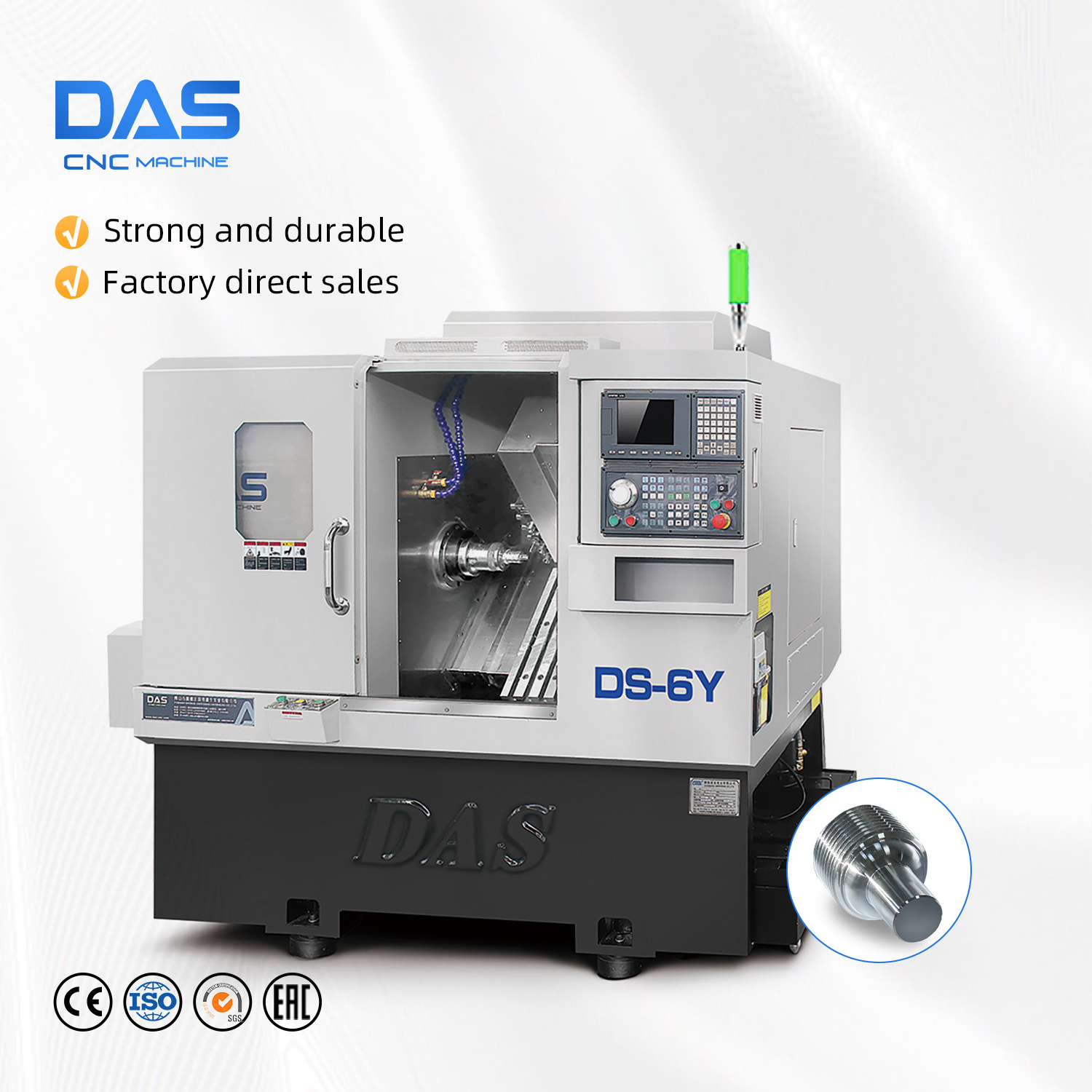

Auto Y Axis Type Turning Center Slanting Bed Cnc Lathe Machine
- X axis to 1020 mm;
- The base is cast by using the resin-bonded sand, with the inclination of 45°, easy to operate and remove chips;
- Taiwan HIWIN/PMI P3 levels ball screw.
- Taiwan brand High-precision main spindle .
- Servo motor for spindle motor.
- Japan and Taiwan Accessories.
- You can with 4x4 integrated power head, axis Y and C functions.
More product click this link(turret/tailstock/salnt bed gang type/vertical machine centre/swiss)
| Name | DS-5Y | DS-6Y |
| The style of installation tool | Gang type+power head | Gang type+power head |
| Adjacent tool change time (s) | 0.3 | 0.3 |
| Tool change style | Random | Random |
| Square knife knife holder (mm) | 20X20 | 20X20 |
| Round hole knife holder (mm) | φ20 | φ20 |
| With chuck size | 5 Inch | 6 Inch |
| Spindle speed (r/min) | 0-4500 | 0-4500 |
| Spindle bore (mm) | φ46 | φ56 |
| Center height (mm) | 96 | 96 |
| The maximum diameter of rotation (mm) | 500 | 500 |
| Spindle motor power (KW) | 5.5 | 7.5 |
| Minimum system Resolution | 0.001 | 0.001 |
| X/Z/Y Axis stroke (mm) | 1020/250/210 | 1020/250/210 |
| X/Z/Y axis fast moving speed (m/min) | 26/26/18(Factory setting) | 26/26/18 (Factory setting) |
| X/Z/Y axis Repetitive positioning accuracy (mm) | ±0.005 | ±0.005 |
| Taper (mm) | ≤0.003/100 | ≤0.003/100 |
| Card position size (mm) | ≤0.003 | ≤0.003 |
| X servo-motor (KW) | 2.4 | 2.4 |
| Z servo-motor (KW) | 2.4 | 2.4 |
|
Y axis shaft
up and down move motor power (KW) |
1.1 | 1.1 |
| (Hydraulic station (KW) | 0.75 | 0.75 |
| Water tank motor power (KW) | 180W | 180W |
| Cooling water tank capacity (L) | 60 | 60 |
| structure of power head | 4*4 gear | 4*4 gear |
| Live tool servo-motor (KW) | 3.1 | 3.1 |
| Live tool speed (rpm) | 1-4500 | 1-4500 |
| power head motor torque (mm) | 5.5 | 5.5 |
| Bar feeder center height (mm) | 1140 | 1140 |
| Weight (KG) | 3100 | 3200 |
| Size (L*W*H mm) | 2400x1500x2000 | 2400 x1500x2000 |
| Power (KW) | 18.5 | 20.5 |
18
cnc turning lathe more detail
| 1.Dear: How do I pay for my purchase order? |
| DAS CNC Answer: T/T,Western Union,Escrow,Paypal,Alipay |
| 2.Dear:How can I visit your factory? |
| DAS CNC Answer:You can take underground to Guangzhou South Station,then we will pick you up to our factory,Just one hour from Baiyun airport to our factory.Warmly welcome you to visit our factory. |
| 3. Dear:What's the MOQ? |
| DAS CNC Answer: 1 SET. |
| 4. Dear: Can I have my own order customized products? |
| DAS CNC Answer: YES,we accept customized. |
| 5. Dear: Do you have quality control? |
| DAS CNC Answer:Yes,we attach great importance to quality problem accurs.We have professional engineer to test the cnc lathe machine quality before delivery. |
| 6. Dear:How about the warranty? |
| DAS CNC Answer: 1year. More information about guarantee pls send enquire/feedback to us. |
