Quick Details
-
Brand Name:
-
FEDA
-
Voltage:
-
380V 3P 50Hz
-
Power:
-
0.75 KW
-
Dimension(L*W*H):
-
650*600*750 mm
-
Weight:
-
300
-
Product name:
-

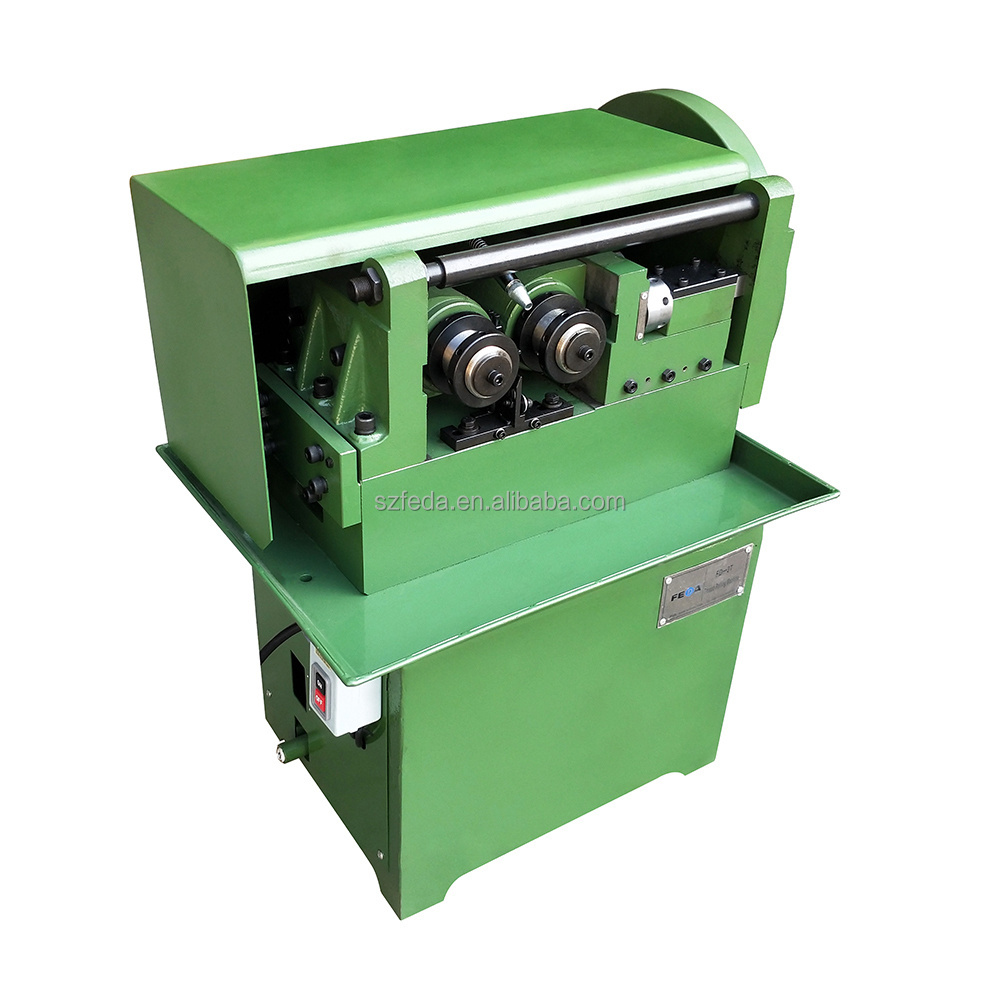

Circular thread rolling machine
-
Distance between the roller shaft:
-
90-130mm
-
Working diameter:
-
2-10mm
-
Thread length:
-
28mm
-
Outside diameter of rolling die:
-
100mm
-
Thickness of rolling die:
-
30mm
-
Thread pitch:
-
0.4-1.5mm
-
Spindle speed:
-
27rpm
-
Inside diameter of rolling die:
-
50.5mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Application:
-
Stud bolts, screws
-
Production Capacity:
-
27 pcs/min
-
Brand Name:
-
FEDA
-
Voltage:
-
380V 3P 50Hz
-
Power:
-
0.75 KW
-
Dimension(L*W*H):
-
650*600*750 mm
-
Weight:
-
300
-
Product name:
-
Circular thread rolling machine
-
Distance between the roller shaft:
-
90-130mm
-
Working diameter:
-
2-10mm
-
Thread length:
-
28mm
-
Outside diameter of rolling die:
-
100mm
-
Thickness of rolling die:
-
30mm
-
Thread pitch:
-
0.4-1.5mm
-
Spindle speed:
-
27rpm
-
Inside diameter of rolling die:
-
50.5mm
1. Cam type feeding
2. Specially for making M2-10 bolts
3. Easy to opearte and maintain the machine
4. Only need 5 minutes to change different rolling dies
5. Automatic feeding devices can be designed according to exact product
| Specification | ||
| Working diameter | 2-10mm | |
| Thread pitch | 0.4-1.5mm | |
| Thread length | 28mm | |
| Spindle speed | 27rpm | |
| Outside diameter of rolling die | 100mm | |
| Inside diameter of rolling die | 50.5mm | |
| Thickness of rolling die | 30mm | |
| Distance between the roller shaft | 90-130mm | |
| Main power motor | 1HP(0.75KW) | |
| Distance from bed surface to roller center | 85mm | |
| Supply voltage | 380V 3P 50Hz | |
| Weight(reference) | 300(KG) | |
| Package Dimension(L*W*H) | 780*680*870 mm | |
| Dimension(L*W*H) | 650*600*750 mm | |
Q1. Are you factory or trading company ?
A1. We are factory of manufacturing thread rolling machine and dies by ourselves.
Welcome to visit our factory, if possible.
Q2. What is the delivery time ?
A2. Usually 15-25 working days for machine, and 10-15 working days for dies.
Q3. What is the warranty time for machine?
A3. Usually 12 months from B/L date.
Q4. What is the payment term?
A4. T/T, Western Union, Money Gram, Alipay, PayPal.
50% as deposit, and 50% before shipping.
Q5. Is it possible to design and produce automatic loading & unloading devices?
A5. Yes, Engineer can design special auto feeding device according to your products.
But please provide the drawing of your products before that.
Q6. How will you solve problems that we face during using your machine?
A6. A. Please provide necessary videos and pictures that can show the problems, our engineers will check and give corresponding solutions.
B. Will arrange engineers to solve problems at the scene, if possible.
