Quick Details
-
Brand Name:
-
beiyi
-
Weight:
-
2500 kg, 2.3t-3.5t
-
Dimension(L*W*H):
-
2235*1245*880
-
Type:
-
Hydraulic vibratory
-
Color:
-
as customer need
-
Suitable for excavator weight:
-
40-45t
-
After service:
-
Yes
-
Material:
-
45# Steel
-
Rotating Speed:
-
2400 rpm
-
Composition:
-
assistant hand,main body, clip mouth
Quick Details
-
Efficiency:
-
high
-
Piling Speed(m/min):
-
6m/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
beiyi
-
Weight:
-
2500 kg, 2.3t-3.5t
-
Dimension(L*W*H):
-
2235*1245*880
-
Type:
-
Hydraulic vibratory
-
Color:
-
as customer need
-
Suitable for excavator weight:
-
40-45t
-
After service:
-
Yes
-
Material:
-
45# Steel
-
Rotating Speed:
-
2400 rpm
-
Composition:
-
assistant hand,main body, clip mouth
Products Description

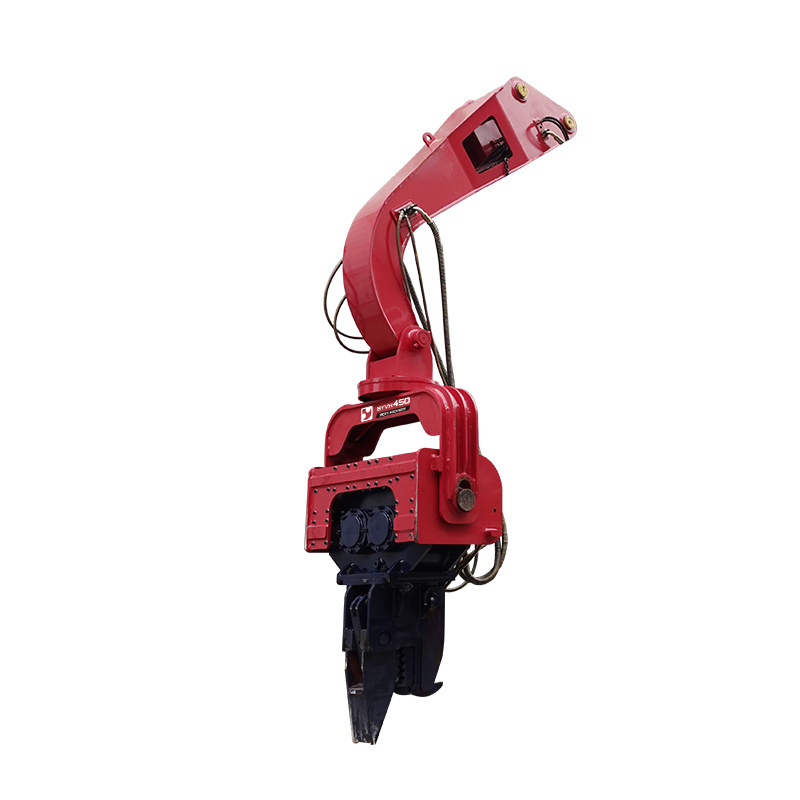

VIBRATORY
PILE
DRIVER
Hydraulic pile driver is a construction machine that uses a hydraulic device to press reinforced concrete piles into the ground. High-frequency vibration is used to transmit the vertical vibration generated by the machine to the pile body through the clamp, causing the soil structure around the pile to change, reducing the strength, liquefying the soil around the pile body, reducing the frictional resistance between the pile side and the soil body, and then digging the The pile is sunk into the soil by the machine's downward pressure, vibration sinking hammer and pile body's own weight. When pulling out piles, the vibrating pile driver uses the lifting force of the excavator to pull up the piles.
Product parameters
|
Model
|
Unit
|
BY-VH150
|
BY-VH250
|
BY-VH330
|
BY-VH350
|
BY-VH450
|
|
Eccentric moment
|
Nm
|
22
|
40
|
50
|
65
|
85
|
|
Frequency
|
Rpm
|
2500
|
2800
|
2800
|
2800
|
2800
|
|
Excitation Force
|
Ton
|
24
|
36
|
45
|
58
|
75
|
|
Weight of main body
|
Kg
|
1500
|
2800
|
3000
|
3300
|
3300
|
|
Operating Pressure of oil system
|
Bar
|
220-320
|
280-330
|
280-330
|
280-330
|
280-330
|
|
Flow Demand for Hydraulic oil system
|
Lpm
|
110-160
|
150-240
|
168-250
|
210-260
|
255-280
|
|
Excavator
|
Top
|
12-18
|
18-23
|
24-30
|
31-35
|
36-50
|
|
Piling height of standard arm
|
M
|
5
|
6
|
6-7
|
7-8
|
8-9
|
|
Max pile length
|
M
|
-----
|
9
|
13
|
16
|
18
|
