Quick Details
-
Warranty(Year):
-
2-Year
-
Color Temperature(CCT):
-
3000K (Warm white) /4000K (White)
-
Color Rendering Index(Ra):
-
97
-
Product Weight（kg）:
-
1.1
-
Lamp Luminous Flux(lm):
-
65 lm/W
-
Model Number:
-
GK75-S01QT2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XrzLux
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
65
-
Lamp Body Material:
-
Aluminum Alloy
-
Install Style:
-
Embedded
-
Warranty(Year):
-
2-Year
-
Color Temperature(CCT):
-
3000K (Warm white) /4000K (White)
-
Color Rendering Index(Ra):
-
97
-
Product Weight（kg）:
-
1.1
-
Lamp Luminous Flux(lm):
-
65 lm/W
-
Model Number:
-
GK75-S01QT2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XrzLux
Product Introduction

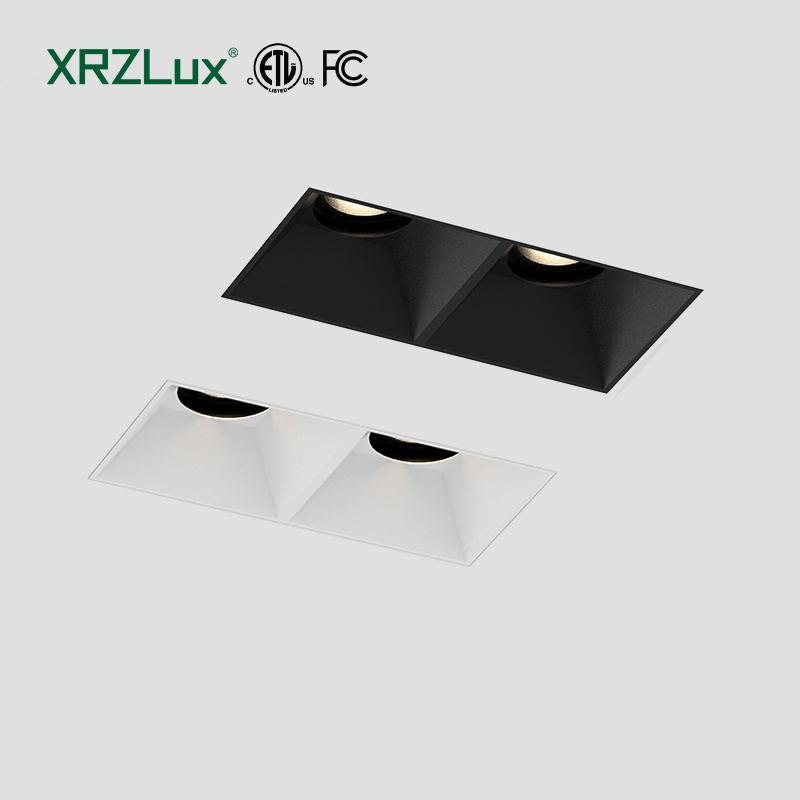

GEEK Family LED Downlight,fully metal-made
① Power: 8W/10W/15W, Input: 100-277V AC/36V DC
② On-off/Traic/0-10V/Dali dimming available
③ COB LED Chip, Ra≥97
④ Beam angle 15D/25D/35D/50D
⑤ 2700K/3000K/3500K/4000K/4500K/6000K available
⑥ Module design, Round, Square Single, and Square Double available; Trim and Trimless; Metal-made reflector colors optional;
Lens Optic design, various beam angles; IP20/IP44, stretchable, and snout models; Meeting massive lighting applications requirements.
Product Parameters
|
Product Parameters
|
|
Optical Parameters
|
|
||
|
Model
|
GK75-S01QT2
|
Light Source
|
LED COB
|
||
|
Install Type
|
Recessed
|
Lumens
|
65 lm/W
|
||
|
Embedded Parts
|
Trimless
|
CCT
|
3000K/3500K/4000K
|
||
|
Lamp Shape
|
Square
|
Tunable White
|
2700-6000K
|
||
|
Product Type
|
Double Heads
|
CRI
|
≥Ra97
|
||
|
Finishing Color
|
White
|
Beam Angle
|
25°/50°
|
||
|
Reflector Color
|
White/Black/Golden
|
Shielding Angle
|
50°
|
||
|
Material
|
Aluminum
|
Light Source Depth
|
55mm
|
||
|
Cutout Size
|
L148*W75mm
|
|
|
||
|
Height
|
85mm
|
Electrical Parameters
|
|
||
|
IP Rating
|
IP20
|
Wattage
|
Max. 2*15W
|
||
|
Fixed/Adjustable
|
25°/360°
|
Input Voltage
|
DC36V
|
||
