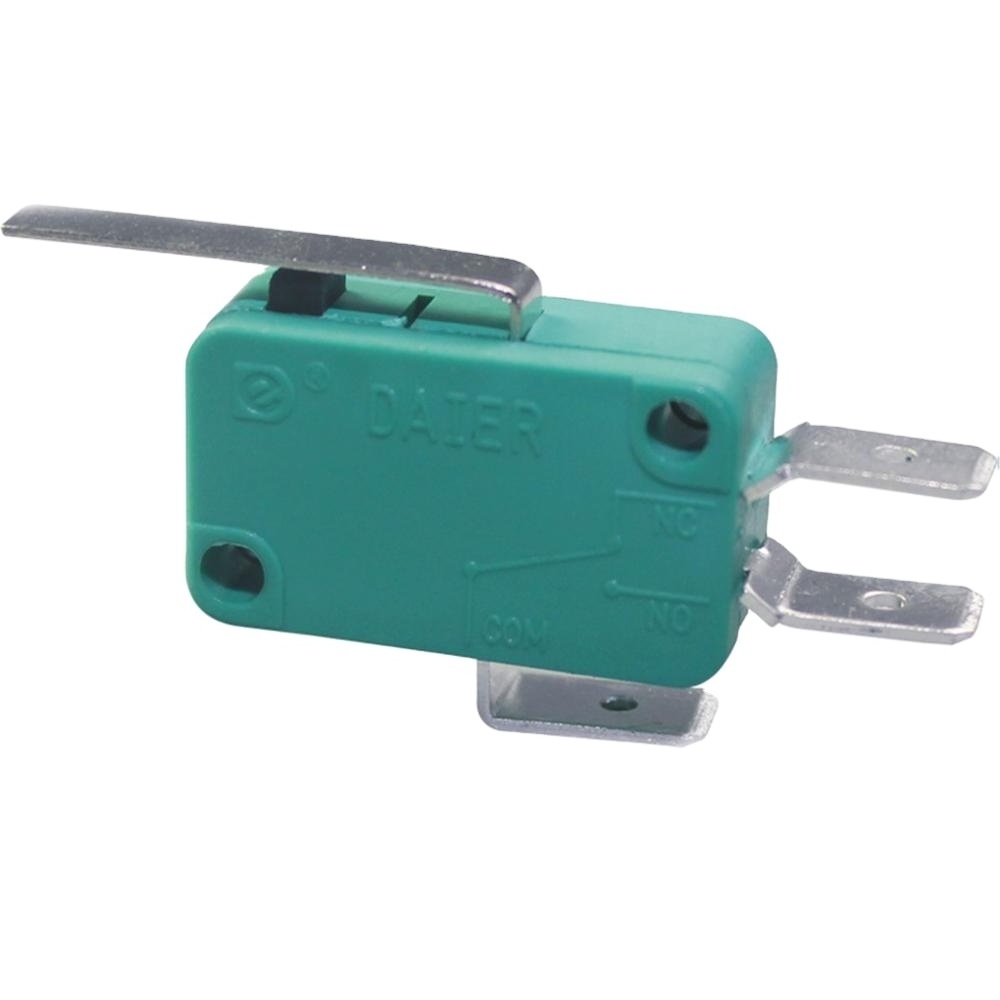

16A 250VAC SPDT Replace Toneluck Micro Switch With Long Arm

16A 250VAC SPDT Replace Toneluck Micro Switch With Long Arm

FOB Reference Price: Get Latest Price

≥100 Pieces

US $0.28

≥1000 Pieces

US $0.23

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: KW1-103-Z3A

Max. Current:: 16A

Operating Temperature:: -25℃~+85℃, -25℃~+85℃

Protection Level:: IP40

Item:: 16A 250VAC SPDT Replace Toneluck Micro Switch With Long Arm

Rating:: 16A 250VAC

Housing Color:: Green, Black

Switch Function:: SPDT

Terminal Options:: Quick-connect Terminal

Operating Force:: 1~3N

Lever:: Long Lever

Certification:: TUV

Electrical Life:: ≥10000 Cycles

Quick Details

Max. Voltage:: 250VAC

Place of Origin:: Zhejiang, China

Brand Name:: Daier

Model Number:: KW1-103-Z3A

Max. Current:: 16A

Operating Temperature:: -25℃~+85℃, -25℃~+85℃

Protection Level:: IP40

Item:: 16A 250VAC SPDT Replace Toneluck Micro Switch With Long Arm

Rating:: 16A 250VAC

Housing Color:: Green, Black

Switch Function:: SPDT

Terminal Options:: Quick-connect Terminal

Operating Force:: 1~3N

Lever:: Long Lever

Certification:: TUV

Electrical Life:: ≥10000 Cycles

Products Description

Item	16A 250VAC SPDT Replace Toneluck Micro Switch With Long Arm
Rating	16A 250VAC / 20A 125VAC
Housing Color	Green or Black
Circuit	SPDT toneluck micro switch
Operating Force	1~3N
Contact Resistance	≦30mΩ
Insulation Resistance	≧100mΩ(500VDC)
Dielectric Strength	1500VAC / 1Minute
Operating Temperature	-25°C~+85°C
Electrical life	>10000 Cycles

This is a high quanlity micro switch which have a variety of actuator, like no lever, short lever, middle lever, long lever,
roller lever and arc lever.

Electrical ratings from low levels up to 16 Amps, and a broad range of operating forces from 50GF to 400GF.

The terminal styles include PCB through hole, quick connect, screw and solder.

The degree protection provided by enclosure can be reached IP40.

They are widely used in Home appliance, like test Euqipment, Automotive, Arcade games, Medical Devices and so on.

Good micro switch

Micro switch by RoHS compliant!

The MOQ of all kinds of micro switch is flexible!

High quality, competitive price, great service!

The best micro switch at the best price!
