Quick Details
-
Applicable Industries:
-
MINING, CEMENT, CHEMICAL, POWER PLANT, PORT, RECYCLING PLANT
-
Place of Origin:
-
Hebei china
-
Voltage:
-
110V/220V/380V
-
Dimension(L*W*H):
-
customized
-
Marketing Type:
-
Other
-
Weight (KG):
-
1000 kg
-
Product Name:
-
belt conveyor
-
conveyor size:
-
customized
-
Application:
-
MINING,CEMENT,CHEMICAL,POWER PLANT,PORT,RECYCLING PLANT
-
Belt Speed:
-
0.8-2.2m/s
-
Belt width:
-
Many chooses
-
Belt length:
-
customized
-
Function:
-
Conveyor Goods
-
Usage:
-
Material Transimission
Quick Details
-
Power:
-
2.2-315kw
-
Warranty:
-
1 Year
-
Width or Diameter:
-
300mm or size customized
-
Applicable Industries:
-
MINING, CEMENT, CHEMICAL, POWER PLANT, PORT, RECYCLING PLANT
-
Place of Origin:
-
Hebei china
-
Voltage:
-
110V/220V/380V
-
Dimension(L*W*H):
-
customized
-
Marketing Type:
-
Other
-
Weight (KG):
-
1000 kg
-
Product Name:
-
belt conveyor
-
conveyor size:
-
customized
-
Application:
-
MINING,CEMENT,CHEMICAL,POWER PLANT,PORT,RECYCLING PLANT
-
Belt Speed:
-
0.8-2.2m/s
-
Belt width:
-
Many chooses
-
Belt length:
-
customized
-
Function:
-
Conveyor Goods
-
Usage:
-
Material Transimission

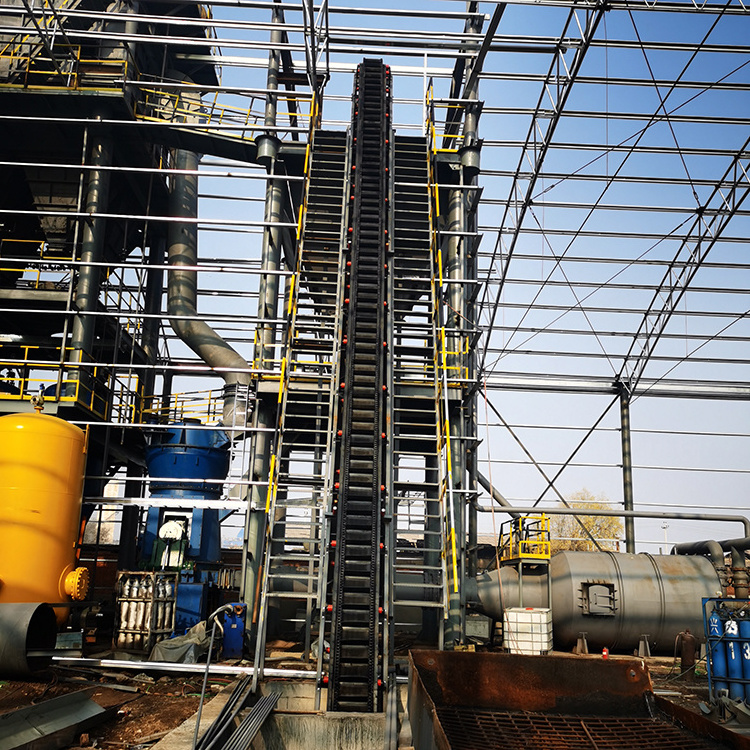

L arge angle inclining side wall pvc belt conveyor conveyor for stone
Product parameters
|
Product Name
|
belt conveyor
|
|
Frame Material
|
PVC PE
|
|
Conveyor size
|
Customized
|
|
Application
|
Harbors, metallurgic industry, mining, electric power plants, coal industry, foundries, architecture, grain industry, cement
industry, fertilizer industry, etc.. |
Engineering design, contact our customer service！
|
Belt Width
(mm) |
Height of Sidewall
(mm) |
Belt Speed
(m/s) |
Angle of
Inclination (°) |
Capacity
(m³/h) |
|
500
|
80
|
0.8-2.0
|
30-90
|
84
|
|
|
100
|
|
|
112
|
|
|
120
|
|
|
98
|
|
650
|
100
|
0.8-2.0
|
|
156
|
|
|
120
|
|
|
140
|
|
|
160
|
|
|
186
|
|
800
|
120
|
0.8-2.5
|
|
186
|
|
|
160
|
|
|
318
|
|
|
200
|
|
|
360
|
|
1000
|
160
|
1.0-2.5
|
|
428
|
|
|
200
|
|
|
483
|
|
|
240
|
|
|
683
|
|
1200
|
160
|
1.0-3.15
|
|
535
|
|
|
200
|
|
|
765
|
|
|
240
|
|
|
1077
|
|
|
300
|
|
|
1358
|
|
1400
|
200
|
1.0-3.15
|
|
920
|
|
|
240
|
|
|
1298
|
|
|
300
|
|
|
1657
|
|
|
400
|
|
|
2381
|
|
1600
|
200
|
1.25-3.15
|
|
1074
|
|
|
240
|
|
|
1515
|
|
|
300
|
|
|
1953
|
|
|
400
|
|
|
2807
|
|
1800
|
240
|
1.25-4.0
|
|
2200
|
|
|
300
|
|
|
2724
|
|
|
400
|
|
|
4106
|
|
|
500
|
|
|
5036
|
FEATURES
1. It can transport bulk materials at a large inclination angle, which can save a lot of equipment floor space and completely solve the conveying angle that ordinary and patterned belt conveyors cannot reach
2. Mechanized belt conveyor transports materials, the overall investment cost is low, about 20% to 30% of the investment cost is saved, and the effect of the coal industry is better
3. Compared with ordinary belt conveyor, bucket elevator and scraper conveyor, this model has superior comprehensive technical performance.
4. The conveying capacity is large, up to 2500m/h, and the vertical lifting height can reach 20m.
5. When conveying materials vertically, the maximum particle size of materials can reach 400mm
6. Smooth transition from horizontal to inclined (or vertical).
7. Low energy consumption, simple structure and convenient maintenance
8. The tape has high strength and long service life
1. It can transport bulk materials at a large inclination angle, which can save a lot of equipment floor space and completely solve the conveying angle that ordinary and patterned belt conveyors cannot reach
2. Mechanized belt conveyor transports materials, the overall investment cost is low, about 20% to 30% of the investment cost is saved, and the effect of the coal industry is better
3. Compared with ordinary belt conveyor, bucket elevator and scraper conveyor, this model has superior comprehensive technical performance.
4. The conveying capacity is large, up to 2500m/h, and the vertical lifting height can reach 20m.
5. When conveying materials vertically, the maximum particle size of materials can reach 400mm
6. Smooth transition from horizontal to inclined (or vertical).
7. Low energy consumption, simple structure and convenient maintenance
8. The tape has high strength and long service life
Products Description
Horizontal curved belt conveyor
Tubular belt conveyor
Long-distance crossing conveyor
Corrugated steep angle belt conveyor
air cushion belt conveyor
TD75 belt conveyor
DTII Belt Conveyor
DTIA belt conveyor
application
Construction Cases
Component composition
Factory
Hebei Xinao Technology Co., Ltd is a part of Guangxing Group which is located in Xinji, Hebei province, near Beijing. With 36 years m
echanical processing experience, Guangxing
is famous in Conveying Equipment, RDF Equipment, Cold Forming Equipment, Dust Collection Equipment. More than 50 engineers focusing on technology developing, supporting on pre-marketing and after-marketing service. M
ore than 100 units advanced manufacturing equipment, including 20 large and main units and three automatic production lines.
Quality and Safety is the
soul
of the equipment. Technological and experienced engineer team with advanced and precision equipment to keep the good soul of the equipment. Welcome worldwide friends visit our factory!!
Advanced machinery and equipment
Our team
package
FAQ
Q: Where is the factory located?
A: We are located in Xinji, Hebei Province, near Beijing airport. You could fly to Beijing Airport, we could pick you there.
Q: Do you accept on-site inspection to check your machine and your factory?
A: Before shipment, every equipment will be trail tested in our factory, we invite all the client to do on-site inspection during trail testing.
Q: What payment terms do you prefer?
A: T/T, L/C, West Union, Cash and so on.
