Quick Details
-
Warranty(Year):
-
1-Year
-
Input Voltage(V):
-
AC100-240V 50/60Hz
-
Working Temperature(℃):
-
-20 - 60
-
Working Lifetime(Hour):
-
5000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Big Dipper
-
Emitting Color:
-
8 Clour
-
Light source:
-
High power 100W White LED
-
Rated Power:
-
120w
-
Channel:
-
12CH
-
Mode:
-
Auto/Sound/ DMX/Master-Slave
-
Rotation:
-
540 degrees Tilt rotation : 180 degrees
-
Color wheel:
-
7 color + white color
-
Gobo wheel:
-
Fixed 9 gobos + white
-
Prism:
-
8 facet Prism,Forward and reverse rotation
-
Packing:
-
4Pcs
-
Luminous flux:
-
440.5lm
Quick Details
-
Color Temperature(CCT):
-
/
-
Type:
-
Moving Head Lights
-
Application:
-
STAGE SHOW
-
Warranty(Year):
-
1-Year
-
Input Voltage(V):
-
AC100-240V 50/60Hz
-
Working Temperature(℃):
-
-20 - 60
-
Working Lifetime(Hour):
-
5000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Big Dipper
-
Emitting Color:
-
8 Clour
-
Light source:
-
High power 100W White LED
-
Rated Power:
-
120w
-
Channel:
-
12CH
-
Mode:
-
Auto/Sound/ DMX/Master-Slave
-
Rotation:
-
540 degrees Tilt rotation : 180 degrees
-
Color wheel:
-
7 color + white color
-
Gobo wheel:
-
Fixed 9 gobos + white
-
Prism:
-
8 facet Prism,Forward and reverse rotation
-
Packing:
-
4Pcs
-
Luminous flux:
-
440.5lm
Products Description
Model:LB100
100W LED Beam (Small steel gun)
Widely used in KTV, bars, clubs, discos, stage and other places
atmosphere lamp shaking beam spotlight color rotating lights LED pattern lights.
|
Product parameters
|
|
|
|
Model : LB100
|
Luminance Flux : 438.2 lm
|
|
|
Size : 200*200*320mm
|
Color : 7 color + blank color
|
|
|
Packing : 1pcs/4pcs
|
Gobo : 8 Fixed gobo
|
|
|
N.W / G.W: About 15.4kg / 17.9kg
|
Channel : 12CH
|
|
|
Power Supply : AC100-240V 50/60Hz
|
3m illumination :28040lux
|
|
|
Rated Power :120W
|
Color rendering index: 67Ra
|
|
|

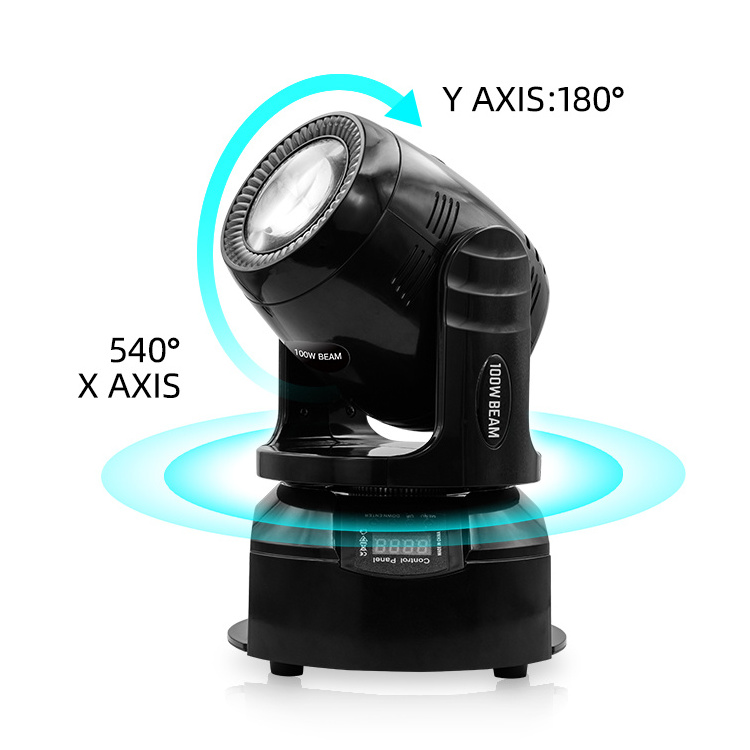

Movement Angle : pan:540° Tilt : 180°
|
Color Temperature : 9920K
|
|
|
Beam Angle : 3.6°
|
Lifespan : 100000 Hours
|
|
|
Control Model : Sound / Auto / DMX512 / Master-slave
|
Application: Stage wedding party bar Disco place
|
|
|
Power supply parameters
|
|
|
|
|||
|
Input voltage
|
Input current
|
Input power
|
Power factor
|
|||
|
100V / 60Hz
|
1.546A
|
103.8W
|
0.676PF
|
|||
|
110V / 60Hz
|
1.354A
|
100.5W
|
0.678PF
|
|||
|
120V / 60Hz
|
1.236A
|
98.6W
|
0.674PF
|
|||
|
220V / 50Hz
|
0.722A
|
96.4W
|
0.614PF
|
|||
|
230V / 50Hz
|
0.692A
|
95.5W
|
0.601PF
|
|||
|
240V / 50Hz
|
0.67A
|
95.2W
|
0.602PF
|
|||
|
Lamp high&low temperature testing
|
|
|
||
|
/
|
Ambient temperature
|
|
||
|
|
-25℃
|
+40℃
|
||
|
Whole machine power
|
83.75 W
|
83.75 W
|
||
|
Light flux
|
438.2 lm
|
438.2 lm
|
||
|
Color temperature
|
9920 K
|
9920 K
|
||
|
Color rendering index
|
67 Ra
|
67 Ra
|
||
|
Waves length
|
478.7 nm
|
478.7 nm
|
||
PACKAGING
Inner packaging
Size: 340*280*260mm
packing:1pcs
Outer packaging
Size:
580*360*540mm
packing:
4pcs
About Us
FAQ
1.Are you factory?
A1. Yes, we are factory, welcome to visit us in Shenzhen City, Guangdong province.
2. Do the lights have Minimum Order Quantity asked?
A3. In our standard package, we don't have MOQ asked, any quantities are acceptable.
3. Do you provide the Warranty ? How about the after sales service ?
A3. Big Dipper always specialize in stage lighting products & Solutions with best price, and we believe in our products, 12 months guarantee and provide friendly, easy-to-reach support.
A1. Yes, we are factory, welcome to visit us in Shenzhen City, Guangdong province.
2. Do the lights have Minimum Order Quantity asked?
A3. In our standard package, we don't have MOQ asked, any quantities are acceptable.
3. Do you provide the Warranty ? How about the after sales service ?
A3. Big Dipper always specialize in stage lighting products & Solutions with best price, and we believe in our products, 12 months guarantee and provide friendly, easy-to-reach support.
4.
What's the payment terms?
A4. T/T,Western union, or Paypal and ect.(30% deposit,balance before shipping)
5.
How long would the order be shipped?
A5.
Our products have in stock, small batch orders usually ship to you within 3-5 days, large batch orders usually take 15-20 days to produce.
