Quick Details
-
Brand Name:
-
WonRay
-
Warranty:
-
2 years, 2 years
-
Rim Size:
-
20inches
-
Reference Codes:
-
14-17.5
-
Tire Size:
-
14-17.5
-
Product name:
-
14-17.5 on Rim and 33*6*11 without rim OTR Industrial tyres 14x17.5
-
Rim size:
-
8.50 or 11.00
-
Model:
-
14-17.5
-
Rim Diameter:
-
20 inches
-
Free service:
-
Pressing rim on tire
-
Certification:
-
ISO9001:2015; REACH
-
Tread Style:
-
Off The Road (OTR)
-
Compatible Equipment Type:
-
Aerial working platforms
-
HS CODE:
-
401290
Quick Details
-
Width:
-
>255mm
-
Diameter:
-
>28 Inch
-
Place of Origin:
-
China
-
Brand Name:
-
WonRay
-
Warranty:
-
2 years, 2 years
-
Rim Size:
-
20inches
-
Reference Codes:
-
14-17.5
-
Tire Size:
-
14-17.5
-
Product name:
-
14-17.5 on Rim and 33*6*11 without rim OTR Industrial tyres 14x17.5
-
Rim size:
-
8.50 or 11.00
-
Model:
-
14-17.5
-
Rim Diameter:
-
20 inches
-
Free service:
-
Pressing rim on tire
-
Certification:
-
ISO9001:2015; REACH
-
Tread Style:
-
Off The Road (OTR)
-
Compatible Equipment Type:
-
Aerial working platforms
-
HS CODE:
-
401290
Products Description

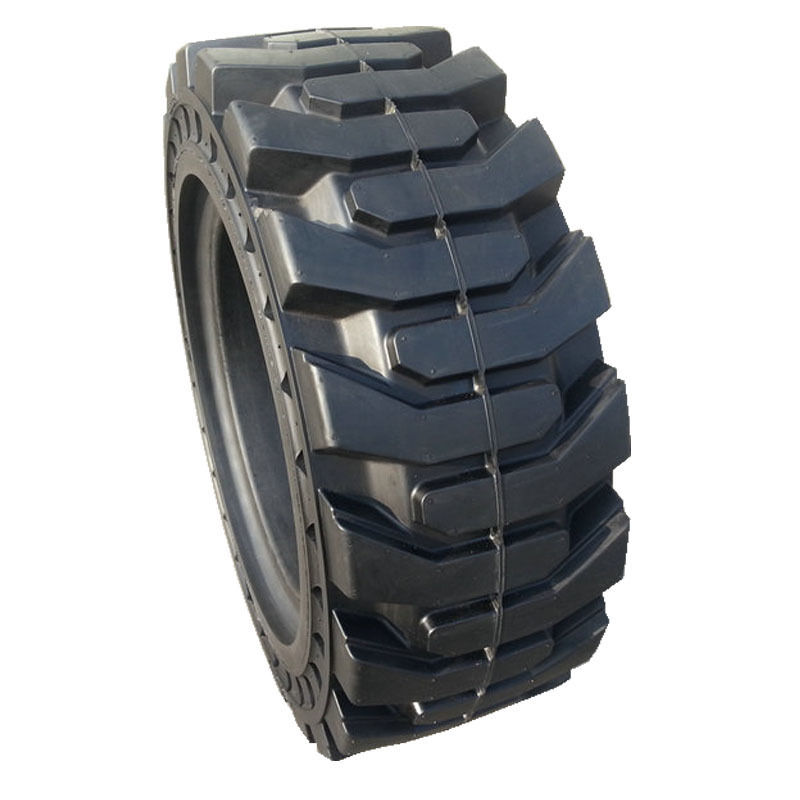

solid tyre 14-17.5 on Rim and 33*6*11 without rim OTR Industrial tyres 14x17.5
More generic specifications
30x9-16, 31x9x21, 30x8-16, 30x10-18, 31x10x16.5, 31x10x18.5, 31x9x20.7,31.5x8x16, 265/70D 16.5, 30*10-16, 31x10-16, 31*10-20, 31*10.5-20, 31*5*9, 31*6*10.
Our skid steer solid tires advantages:
* Lower cost-per-hour than regular pneumatic or foam filled tires;
* Solid, flat-proof tires with sidewalls designed to prevent cuts and cracks in aggressive terrain;
* Partially pneumatic design provides air-cushioned ride, reducing machine shock for driver comfort;
* Deep lug treads provide improved traction and great shock absorption for machine longevity and driver comfort;
* Designed for dirt terrain such as loose dirt, ground, sand, mud and snow;
* Solid tire with rim included;
* Solid, flat-proof tires with sidewalls designed to prevent cuts and cracks in aggressive terrain;
* Partially pneumatic design provides air-cushioned ride, reducing machine shock for driver comfort;
* Deep lug treads provide improved traction and great shock absorption for machine longevity and driver comfort;
* Designed for dirt terrain such as loose dirt, ground, sand, mud and snow;
* Solid tire with rim included;
|
Detail
|
inches/mm
|
|
Pneumatic Equivalent
|
14-17.5
|
|
Outside Diameter x Tire Width
|
940mm x 330mm
|
|
Bolt Hole Distance Across
|
8"
|
|
Rim Offset
|
1.26"
|
|
Base
|
Left/Right
|
|
Rim Diameter
|
20"
|
|
Number of Bolt Holes
|
9
|
|
Tread Depth
|
40mm
|
|
Rated Load
|
5930kg
|
|
Tire Weight
|
163kg
|
CUSTOMIZED COLOR
ONE ROW OF BIG HOLES, BETTER RIDE
HIGHER RUBBER DENSITY, LONGER LIFE
Data Sheet
|
TIRE SIZE
|
PATTERN
|
OUTSIDE DIAMETER (mm)
|
SECTION WIDTH (mm)
|
WEIGHT (kg)
|
|
10-16.5
|
R708/R711
|
788
|
250
|
116
|
|
12-16.5
|
R708/R711
|
840
|
275
|
136
|
|
16/70-20
|
R708
|
1060
|
400
|
312
|
|
small 16/70-20 14-17.5
|
R708
|
940
|
330
|
216
|
|
38.5x14-20 14-17.5 385/65d-19.5
|
R708
|
966
|
350
|
242
|
|
385/65-24 385/65-22.5
|
R708
|
1062
|
356
|
290
|
|
445/65-24 445/65-22.5
|
R708
|
1152
|
428
|
394
|
|
14.00-24
|
R701
|
1340
|
328
|
445
|
|
17.5-25
|
R709
|
1368
|
458
|
631
|
|
18.00-25
|
R711
|
1620
|
500
|
960
|
|
20.5-25
|
R709
|
1455
|
500
|
765/950
|
|
23.5-25
|
R709
|
1620
|
580
|
1040
|
|
26.5-25
|
R709
|
1736
|
650
|
1395
|
|
29.5-25
|
R709
|
1840
|
730
|
1780
|
Packaging & Shipping
Cases
Our Company
About Us
Yantai WonRay Rubber Tire Co., Ltd. is a comprehensive enterprise that manufactures and sells solid tires, as well as conducts research and development of the latest technology of solid tires. To ensure that our products have the leading advantages, we implement the most rigorous quality control systems, and enforce full monitoring in our manufacturing process.
Why Choose Us
We have full tire and rim information for skid steer solid tires.
With years' experience we have almost comprehensive rim data for different models of skid loaders. We can ensure you the installations.
