Quick Details
-
Fork Length:
-
1070
-
Fork Width:
-
100
-
Overall Dimensions:
-
3050*1020*2017
-
Weight (KG):
-
1570 kg
-
Rated capacity:
-
1000KG
-
Load center distance:
-
500MM
-
Power mode:
-
lead-acid battery
-
Wheel base:
-
1335MM
-
Maximum lift height:
-
3000MM
-
Mast extended height:
-
3957MM
-
Turning radius:
-
2050MM
-
Battery voltage /nominal capacity:
-
60V/120Ah
-
Drive motor power:
-
5KW
-
Lift motor power:
-
4.5KW
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LINGMEI
-
Fork Length:
-
1070
-
Fork Width:
-
100
-
Overall Dimensions:
-
3050*1020*2017
-
Weight (KG):
-
1570 kg
-
Rated capacity:
-
1000KG
-
Load center distance:
-
500MM
-
Power mode:
-
lead-acid battery
-
Wheel base:
-
1335MM
-
Maximum lift height:
-
3000MM
-
Mast extended height:
-
3957MM
-
Turning radius:
-
2050MM
-
Battery voltage /nominal capacity:
-
60V/120Ah
-
Drive motor power:
-
5KW
-
Lift motor power:
-
4.5KW

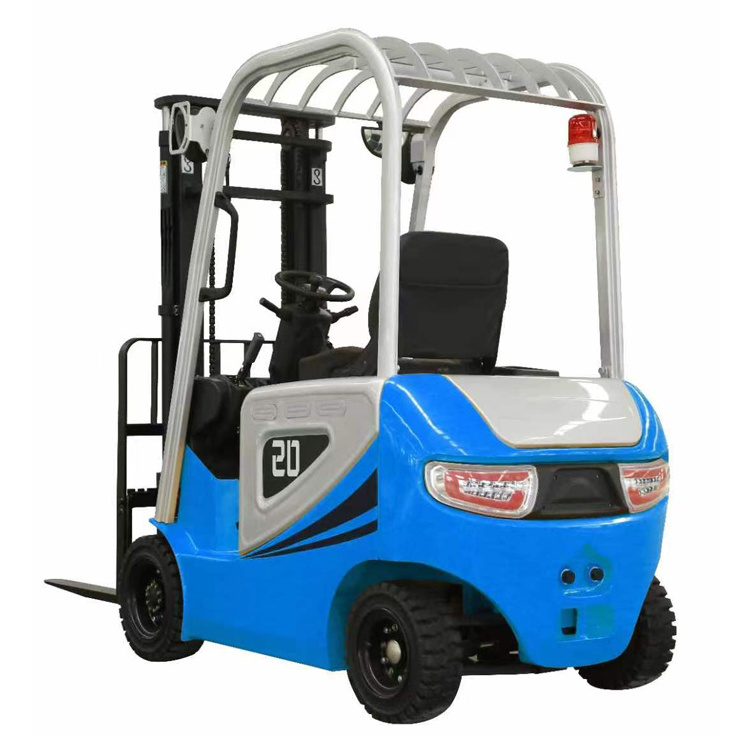

1ton 1.5ton 2ton 2.5 tons 3.5 ton mini electric forklifts trucks price battery forklift electric montacargas for sale
·Door frame and hydraulic cylinder Intelligent buffer design,allowing smoother movement ofcargo and reducing safety accidents
·Multi-function digital instrument panel display, easy and quick to observe the situation of the vehicle
·Bridge box integrated structure design,sturdy roof protector adds more safety to the driver
·LED headlights, reversing lights, giving operators greater visibility
·Steel floor is installed with quick screws, easy to assemble and disassemble
·Gas spring auxiliary support compartment cover, easy to flip ·Double seals are used in the hydraulic cylinderto increase the service life of the hydraulic cylinder
·Intelligent stepless speed changer, stable start and stop,Improve transportation safety
Specifications
| Load (kg) | 1000 |
| Lifting height (mm) | 3000 |
| Frame static height (mm) | 3690 |
| After lifting the total height (mm) | 2500 |
| Total length (mm) | 1980 |
| Fork size (forged) mm | 100*1070*30 |
| Tire | Solid rubber tires |
| Battery (V/AH) | 60/120 |
| Total Weight(KG) | 1570 |
