C Type WRe 5/26 Tungsten Rhenium thermocouple wire

C Type WRe 5/26 Tungsten Rhenium thermocouple wire

FOB Reference Price: Get Latest Price

≥10 Meters

US $30

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Insulation Material:: none

Place of Origin:: Jiangsu, China

Brand Name:: DLX

Model Number:: Type C

Product name:: C Type WRe 5/26 Tungsten Rhenium thermocouple wire

Materila:: Tungsten Rhenium

Surface:: Bright

Size:: 0.01-3.26mm

Certification:: ISO9001

MOQ:: 50m

Delivery Time:: 15 to 20 Day s

Quick Details

Application:: temperature testing

Conductor Material:: Tungsten Rhenium

Conductor Type:: Tungsten Rhenium

Insulation Material:: none

Place of Origin:: Jiangsu, China

Brand Name:: DLX

Model Number:: Type C

Product name:: C Type WRe 5/26 Tungsten Rhenium thermocouple wire

Materila:: Tungsten Rhenium

Surface:: Bright

Size:: 0.01-3.26mm

Certification:: ISO9001

MOQ:: 50m

Delivery Time:: 15 to 20 Day s

You are here: Home >> Thermocouple bare wire >>Tungsten Rhenium Thermocouple Wire, Thermocouple wire C

Product Description

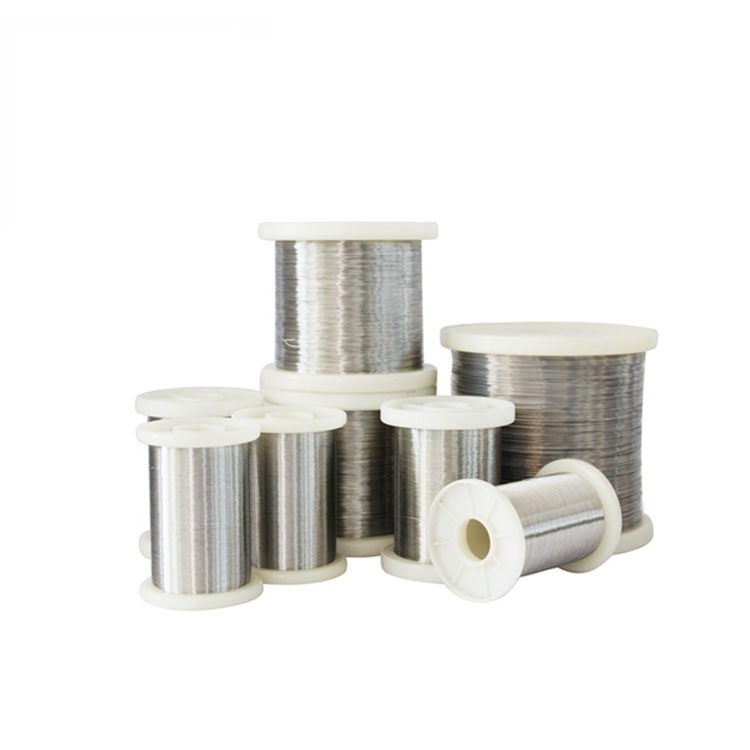

C Type WRe 5/26 Tungsten Rhenium thermocouple wire

Tungsten rhenium thermocouple wire, also known as tungsten-rhenium wire, solid, round and smooth, can be free of weld joints, slivers, kinks, pits or nicks exceeding 5 % of diameter. It has a uniformly clean surface and is free of discoloration.

The thermal elements, which are all heat treated, are available for reaching the specified ductility. Made of tungsten alloyed with 3%, 5%, 25% or 26% rhenium, W-Re alloys become more ductile and machineable. And due to the good electrical properties, they are widely used as high temperature thermocouple materials.

As the most common material, tungsten rhenium wire is used for the production of heaters for dispenser cathodes. Its performance may depend on a range of factors, including cold work and rhenium content variation.

Alloy Combination		Tolerance Class	Temp Range (°C)	Diameter (mm)	Environment Bare wire
+Lead	-lead	Grade
Tungsten-5%Rhenium (W-5%Re)	Tungsten-26%Rhenium (W-26%Re)	I	0-2300	0.08-0.5	Vacuum, Inert, Hydrogen
		II	0-2300
Tungsten-3%Rhenium (W-3%Re)	Tungsten-25%Rhenium (W-25%Re)	I	0-2300	0.08-0.5	Vacuum, Inert, Hydrogen
		II	0-2300
