Quick Details
-
Length:
-
370*290*980mm
-
Complete function time:
-
less than 3 seconds
-
Working environment:
-
indoor and outdoor with shed
-
Communication interface:
-
RS485 electrical standard or TCP/IP
-
Power supply voltage:
-
AC220 ± 10%V, 50HZ
-
Opening Pattern:
-
automatic
-
Color:
-
Red yellow blue
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TDZ
-
Product Name:
-
automatic parking gate barrier
-
Length:
-
370*290*980mm
-
Complete function time:
-
less than 3 seconds
-
Working environment:
-
indoor and outdoor with shed
-
Communication interface:
-
RS485 electrical standard or TCP/IP
-
Power supply voltage:
-
AC220 ± 10%V, 50HZ
-
Opening Pattern:
-
automatic
-
Color:
-
Red yellow blue

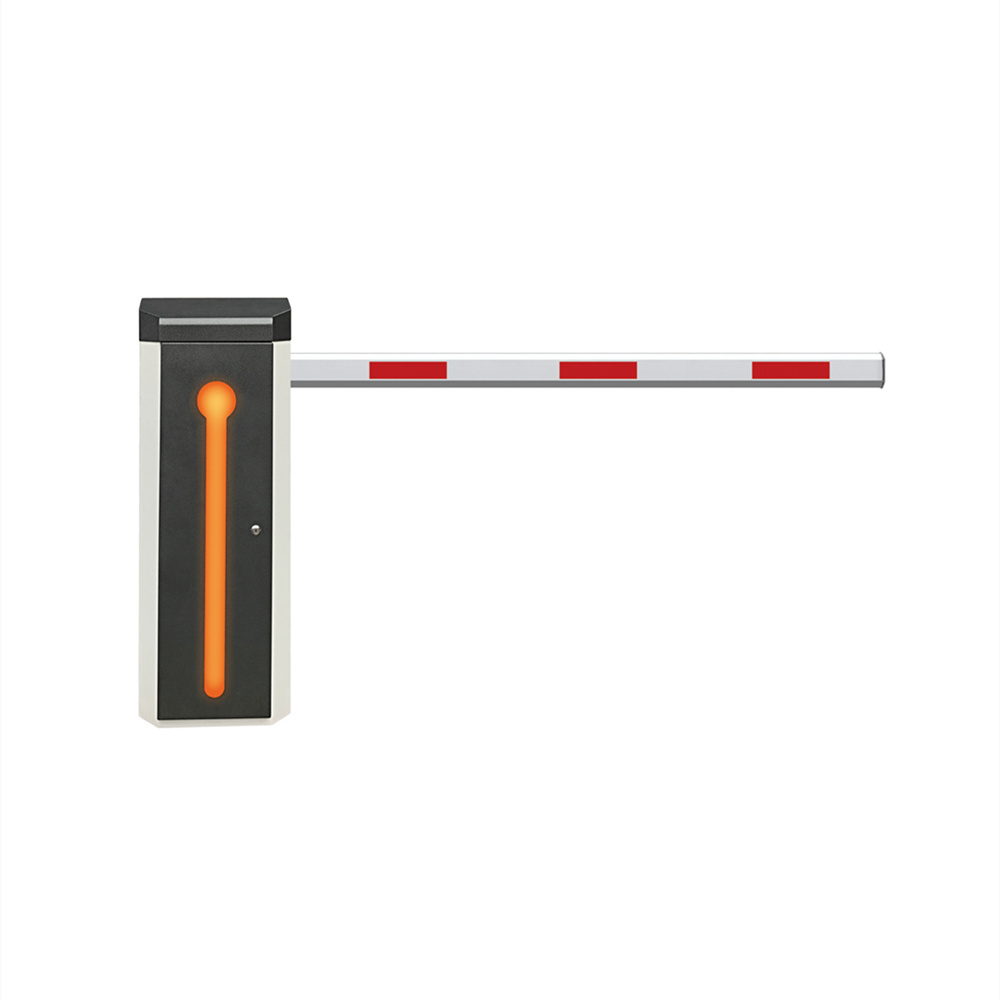

High Quality Automatic Barrier Boom High Speed Security Gate With Straight Arm 1-6m
Product Description:
Basic functions of automatic boom barrier gate
Boom Barrier Gate Kit
1 * motor
1 * boom (from 1m to 6m can customised)
1 * control panel
2 * remote controllers
Function of Straight Boom Barrier Gate
| 1, Special driving structure, no gears, non-belt driving,maintenance free, high stability, longer life. |
|
2, Special balancing structure design makes the barrier arm has the feature of slow-starting, fast-running, slow-stopping.
|
| 3,It is running without arm-shaking. |
|
4, The brarrier arm is 90 degrees running which excluding the failure caused 360 degrees running.
|
| 5, Special low-speed aluminum housing motor integrated gearbox design, low noise, fast heat-dissipation. |
|
6, The driving mechanism has the desiging of intelligent overheating protection system, in frequent use, it can control the warming of the motor, makes the motor not burned easily.
|
|
7, The main engine adopts mechanical limit switch and photoelectric limit switch dual protection, to avoid the problems caused by using traditional magnetic switch which is easily interfered by the external environment.
|
|
8, Barrier gae tcan be chosen from 1m to 3.5m.
|
Features of Barrier Gate Control Panel
| 1 | Adopt the micro-processor to control the system, it’s easy to operate. |
| 2 |
Closing time can be adjusted automatically from 1 second to 3 mins.Working
time for motor can be adjusted from 1 second to 17seconds to confirm safety even invalid of limit switch. |
| 3 | Support loop detector and also can Infrared protection. |
| 4 | Remote control uses intelligent encoding and decoding technology, high anti-theft performance and wide compatibility. |
Technical:
1.box length 470*390*1140mm
2.colors: red, yellow, orange, blue are available
3.reading distance :3-10CM
4.working power: DC12V-15V, working current 100ma
5.Operating Temperature: -20 degrees Celsius to zero at 60 degrees Celsius
