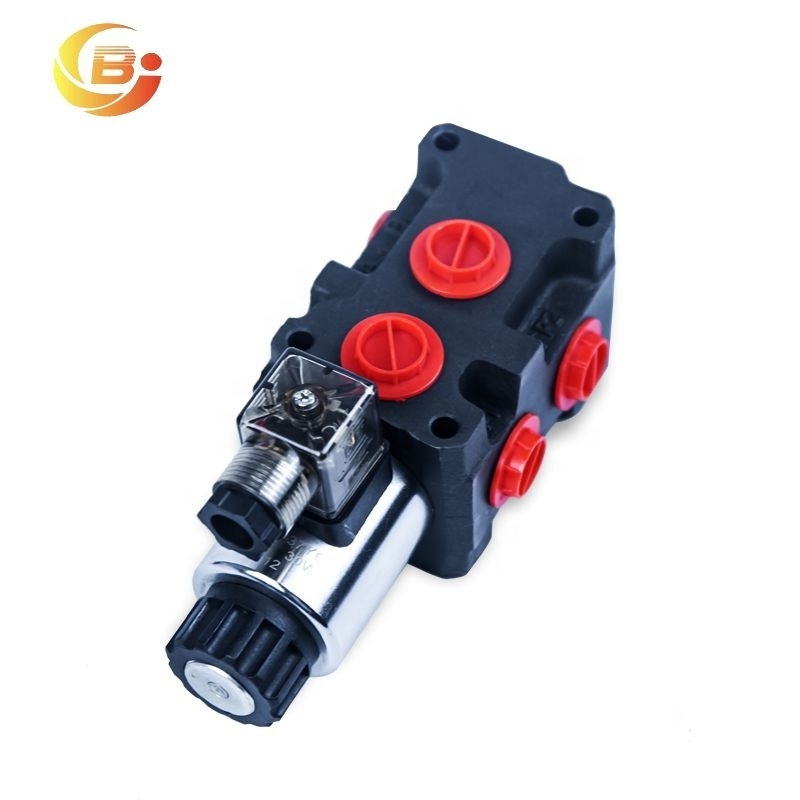

24 GPM 12v DC Hydraulic Solenoid Selector Diverter Valve

24 GPM 12v DC Hydraulic Solenoid Selector Diverter Valve

FOB Reference Price: Get Latest Price

≥5 Pieces

US $30

≥50 Pieces

US $24

≥200 Pieces

US $20

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: China

Max Operating Pressure:: 3625 PSI

Flow Rating:: 24 GPM

Working pressure:: 250Bar

Max Flow Rate:: 50 L/Min

Material:: casting iron

Port Size:: 8 SAE (3/4"-16)

Standard:: Double or Single Acting Cylinders

Function:: O,P,Y,A

Spring Side Control Options:: T(Spring return)and W(detent control)

Service:: OEM ODM

Quick Details

Warranty:: 1 Year

Valve type:: Flow control Valve

Brand Name:: Junbao

Place of Origin:: China

Max Operating Pressure:: 3625 PSI

Flow Rating:: 24 GPM

Working pressure:: 250Bar

Max Flow Rate:: 50 L/Min

Material:: casting iron

Port Size:: 8 SAE (3/4"-16)

Standard:: Double or Single Acting Cylinders

Function:: O,P,Y,A

Spring Side Control Options:: T(Spring return)and W(detent control)

Service:: OEM ODM

Product Description

Diverters are used to add an extra facility to the directional control valve when it is needed for a sequence of operations or to control a selected hydraulic cylinder on front loaders etc.

Name:	SVV09 Solenoid Diverter Valve
Port:	8 SAE (3/4”-16) Thread
Flow Rating:	24 GPM
Working Pressure:	250 Bar
Max Flow Rate:	50 L/Min
Benefits::	This solenoid operated valve allows you to easily add another hydraulic circuit to your equipment.

Description

◆ 6-way with alternating spool; it's sectional type to obtain 8-way or 10-way circuit.

◆ It's possible to flange mounting a block
with cross return anti-shock valves.

◆ Coils with several feeding voltage are available.

◆ They are used as link between two
consumers and the basic directional valve,when we want tocontrol both consumers alternately by means of one basic directional
control valve.

◆ Diverters are used to add an extra facility to the directional control valve when it is needed for asequence of operations such as a safety operation or to control a selected hydraulic cylinder.

◆ The stackable circuit selector valves allow
one single drive for 6 users with 5 diverters connected inseries.

◆ Please note the drain line must be connected back to tank at all times.

Question: Is this available for a 24v DC electrical system?

Answer: Yes, our part number is SVV90 24V

Question: Does the oil Bypass when not in use？

Answer: When the solenoid is not energized, oil flows from Ports A1/A2 to B1/B2.
Flow will be blocked at C1/C2 When the solenoid is energized, oil flows from Ports A1/A2 to C1/C2. Flow will be blocked at B1/B2
