Quick Details
-
Dimension(L*W*H):
-
11200*1910*2100mm
-
Weight:
-
11500 KG
-
Core Components:
-
HYG550 Hydraulic Rock Drill
-
Drilling Diameter:
-
32-45mm
-
Drilling Depth:
-
-
-
Tramming Dimensions:
-
11200*1910*2100mm
-
Boom:
-
1
-
Motor Model:
-
ABB YX3 250M-4(B5)
-
Roof Height:
-
2900mm
-
Boom extension:
-
1250mm
-
Power rating:
-
55KW
-
Ground clearance:
-
260mm
-
Feed extension:
-
1250mm
-
Power rating air pump:
-
ABB 5.5KW
-
Tyres:
-
8.25*R15
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
HONGYUAN
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
11200*1910*2100mm
-
Weight:
-
11500 KG
-
Core Components:
-
HYG550 Hydraulic Rock Drill
-
Drilling Diameter:
-
32-45mm
-
Drilling Depth:
-
-
-
Tramming Dimensions:
-
11200*1910*2100mm
-
Boom:
-
1
-
Motor Model:
-
ABB YX3 250M-4(B5)
-
Roof Height:
-
2900mm
-
Boom extension:
-
1250mm
-
Power rating:
-
55KW
-
Ground clearance:
-
260mm
-
Feed extension:
-
1250mm
-
Power rating air pump:
-
ABB 5.5KW
-
Tyres:
-
8.25*R15
Please tell us your needs and we will recommend the most suitable product for you.
Customized according to customer needs, the price is different, the specific quotation, please contact customer service.
Product Introduction

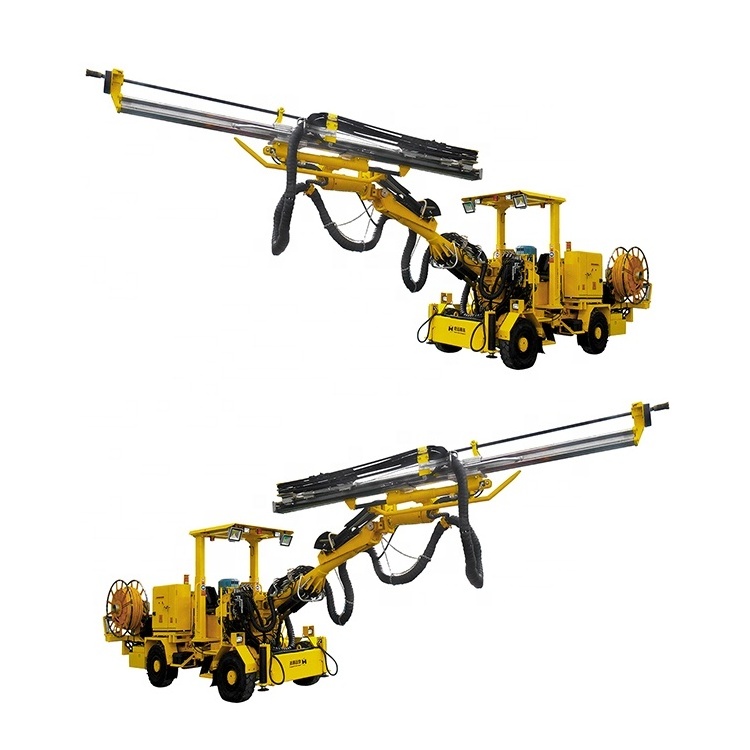

Robust design and common-sense control system guarantee best reliability. CYTJ76A single-boom hydraulic face drilling rig is optimized for small to medium size tunnels and drifts up to 6 meters high X 6 meters wide. CYTJ76A is equipped with a heavy-duty boom with unique features for efficient and trouble-free operation with coverage area of 48 square meters. It is intended for use in mining and tunneling and designed for operation with medium-size drifts and underground openings.
Standard features:
1.Safety and control: A FOPS-approved ergonomically designed telescopic protective roof ensures safety plus excellent visibility and surveillance for the operator in control. The industrial PLC control system guarantees the safety and flexible drilling process. The rig is cleverly designed to provide straightforward access to all service points for easy maintenance.
2.
Outstanding drill steel economy: The rock drill available for the rig feature dual damping for productivity, high-speed drilling and greater drill steel longevity.
3.
A double tripod on the heavy-duty boom allows for fast, precise positioning with hydraulic parallel holding in all directions.
4.
Option: A telescopic feed for blot hole drilling, face drilling, and cross cutting. in a limited space where both long and short rods have to be used. The telescopic feed consists of upper and lower feed. When the feed is at minimum length, short holes can be drilled. When the feed is at maximum length, long holes can be drilled.
|
item
|
value
|
|
Applicable Industries
|
Construction works , Energy & Mining, mining machinery
|
|
Showroom Location
|
None
|
|
Condition
|
New
|
|
Power Type
|
Diesel
|
|
Place of Origin
|
China
|
|
|
Hebei
|
|
Brand Name
|
HONGYUAN
|
|
Usage
|
Mining and tunneling
|
|
Dimension(L*W*H)
|
11200*1910*2100mm
|
|
Weight
|
11500KG
|
|
Warranty
|
1 year
|
|
Marketing Type
|
Hot Product 2022
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
3 months
|
|
Core Components
|
HYG550 Hydraulic Rock Drill
|
|
Key Selling Points
|
Competitive Price
|
|
Hole diameter
|
32-45mm
|
|
Coverage cross section
|
36㎡
|
|
Tramming Dimensions
|
11200*1910*2100mm
|
|
Boom
|
1
|
|
Motor Model
|
ABB YX3 250M-4
|
|
Roof Height
|
2900mm
|
|
Boom extension
|
1250mm
|
|
Power rating
|
55kw
|
|
Ground clearance
|
260mm
|
|
Feed extension
|
1250mm
|
|
Power rating air pump
|
ABB 5.5KW
|
|
Tyres
|
8.25*r15
|
1.Why choose us？
As a manufacturer, HONGYUAN is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7*24 after-sale services.
2. Any Warranty?
The vehicle warranty period is one year.The rock drill warranty is three months.During use, If you have any questions, We can make a video call at any time.
3.price description
The unit price above is FOB price to Tianjing sea ports in China.Please contact customer service for accurate quotation. The above price is for reference only.
4.What payment terms can we accept?
The advance payment shall not be less than 30% of the total amount.Progress payment shall not less than 30% of the total amount.Pay more than 90% of the total contract amount before delivery of the products.The balance of the contract amount shall be paid within 10 working days after the vehicle arrives at the site of use.
5. How about our delivery time?
Customized products will take more time, depending on the requirements of your order.Please contact customer service to confirm the delivery period before placing the order.
As a manufacturer, HONGYUAN is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7*24 after-sale services.
2. Any Warranty?
The vehicle warranty period is one year.The rock drill warranty is three months.During use, If you have any questions, We can make a video call at any time.
3.price description
The unit price above is FOB price to Tianjing sea ports in China.Please contact customer service for accurate quotation. The above price is for reference only.
4.What payment terms can we accept?
The advance payment shall not be less than 30% of the total amount.Progress payment shall not less than 30% of the total amount.Pay more than 90% of the total contract amount before delivery of the products.The balance of the contract amount shall be paid within 10 working days after the vehicle arrives at the site of use.
5. How about our delivery time?
Customized products will take more time, depending on the requirements of your order.Please contact customer service to confirm the delivery period before placing the order.
