- Product Details
- {{item.text}}
Quick Details
-
The biggest cutting width:
-
200mm
-
The maximum cutting depth:
-
3mm
-
Pressure plane thickness range:
-
5-13mm
-
Minimum pressure plane length:
-
200mm(depth)
-
The biggest saw material thickness:
-
80mm
-
Cutting depth of the mouth:
-
10mm
-
Feeding speed:
-
6.5m/min
-
Weight:
-
105 kg, 105 kg
-
The largest workpiece size:
-
1000*910*480 mm(Dimension)
-
Certification:
-
CE
-
Power:
-
1.1kw, 1.5kw, 2.2kw
Quick Details
-
Place of Origin:
-
China
-
After-sales Service Provided:
-
Online support
-
Product Name:
-
Planer Machine Woodworking
-
The biggest cutting width:
-
200mm
-
The maximum cutting depth:
-
3mm
-
Pressure plane thickness range:
-
5-13mm
-
Minimum pressure plane length:
-
200mm(depth)
-
The biggest saw material thickness:
-
80mm
-
Cutting depth of the mouth:
-
10mm
-
Feeding speed:
-
6.5m/min
-
Weight:
-
105 kg, 105 kg
-
The largest workpiece size:
-
1000*910*480 mm(Dimension)
-
Certification:
-
CE
-
Power:
-
1.1kw, 1.5kw, 2.2kw
Product Description

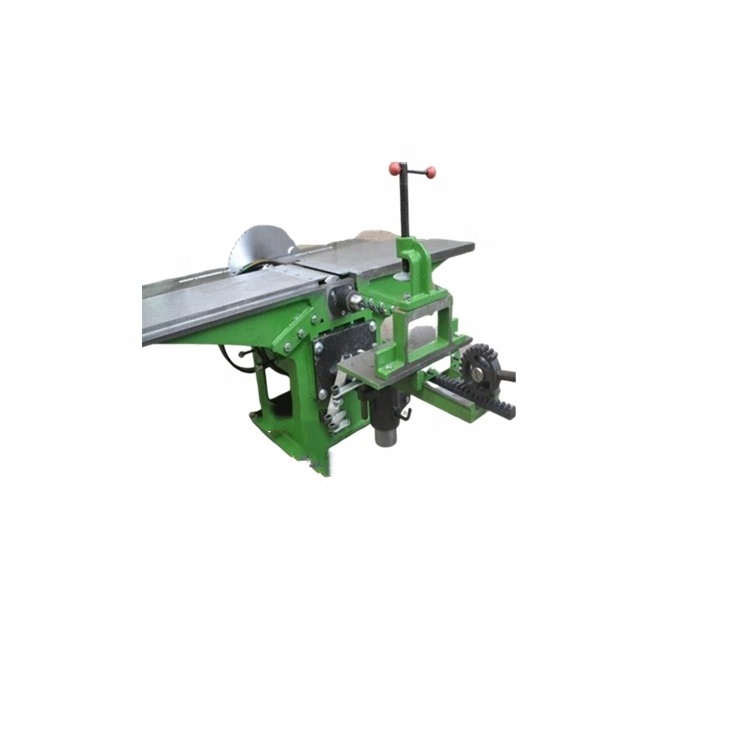

Planer machine wood planing machine
woodworking thicknesser planer is used to create boards that is parallel and an even thickness throughout their length making it flat on the upper surface. A machine consists of three elements, a cutter head which contains the cutting knives, a set of in feed and out feed rollers which draw the board through the machine and a table which is adjustable to control the depth of thickness of the board. We provide more models of woodworking thicknesser planers, you can choose the thicknessing width with 200, 300, 500mm, the workbench can be lifted by manual or electric.
|
Bed dimension
|
210×25 mm
|
|
The biggest cutting width
|
200mm
|
|
The maximum cutting depth
|
3mm
|
|
Pressure plane thickness range
|
5-13mm
|
|
Minimum pressure plane length
|
200mm(depth)
|
|
The biggest saw material thickness
|
80mm
|
|
Cutting depth of the mouth
|
10mm
|
|
The largest workpiece size
|
1000×910×480 mm(Dimension)
|
|
Feeding speed
|
6.5m/min
|
|
Saw blade diameter
|
250mm
|
|
Speed of mainshaft
|
3580r/min
|
|
Power
|
1.1kw, 1.5kw, 2.2kw, 220V
|
Packing&Shipping
Wooden case or as customer's request.
Why Do You Choose Us?
We have a super first-class service level, and the industry reputation is excellent among the world, our products at home andabroad deeply perfered by our consumers and dealers. We have exquisite technology, and meticulous spirit of enterprise. We arestriving to achieve the ultimate perfection of mechanical products, no best, only better !
After Sales Service
Certifications
Company Introduction
Shandong Deou Heavy Industry Machinery Co., Ltd established in July 29, 2016, registered capital of 5 million. This is our newbranch. Our factory has 6 years history. We have CNC machining center, CNC lathe, boring machine, and milling machine. We havepassed the ISO9001:2000 certification. Our products have been exported to Europe, Russia, south America, Africa & the Middle East,more than 20 countries.
Our Services & Strength
1.We are a reliable Alibaba gold supplier and support trade guarantee.
2.We are a leading manufacturer of diamond tools and have more than five years of experience
2.We are a leading manufacturer of diamond tools and have more than five years of experience
3.Accept any customization requirements High quality, reasonable price, prompt delivery
4.The entire sales order, small orders and trial orders are accepted and welcomed
4.The entire sales order, small orders and trial orders are accepted and welcomed
5. We have advanced equipment to ensure production efficiency.
6.We have Formed a complete and mature process to ensure each production link 100% quality inspection before shipment.
7.Reply within 24 hours.
6.We have Formed a complete and mature process to ensure each production link 100% quality inspection before shipment.
7.Reply within 24 hours.
FAQ
Q: Are you manufacture?
A: Yes.
We are one of leading manufacturers.
Q: Do you have Stock productions to sell?
A: Yes, of course. But we also offer OEM service. Please send us some drawing.
Q:What information do you want to know if i want to get a quotation?
A: a). The model/size of your products.
b). The application for your products.
c). Special package methods if you needs.
d). Raw material.
A: Yes, of course. But we also offer OEM service. Please send us some drawing.
Q:What information do you want to know if i want to get a quotation?
A: a). The model/size of your products.
b). The application for your products.
c). Special package methods if you needs.
d). Raw material.
