Powerful Lifting Machinery 40 ton hydraulic Rough Terrain Truck Crane SRC400C

Powerful Lifting Machinery 40 ton hydraulic Rough Terrain Truck Crane SRC400C

FOB Reference Price: Get Latest Price

≥1 Sets

US $220000

≥5 Sets

US $190000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: construction

Place of Origin:: Hunan, China

Brand Name:: Top brand

Marketing Type:: New Product 2023

Weight (KG):: 30900 kg

Product name:: Rough Terrain Crane

Model:: SRC400C

After-sales Service Provided:: Engineers available to service machinery overseas

Color:: Optional

Max Lifting Height:: 47.4m

Max Boom Length:: 31.5m

Max Lifting Moment:: 1175kn/m

Max Traveling Speed:: 37km/h

Max Gradeability:: 105%

Quick Details

Rated Loading Capacity:: 40ton

Max. Lifting Height:: 47.4M

Engine Brand:: top brand

Application:: construction

Place of Origin:: Hunan, China

Brand Name:: Top brand

Marketing Type:: New Product 2023

Weight (KG):: 30900 kg

Product name:: Rough Terrain Crane

Model:: SRC400C

After-sales Service Provided:: Engineers available to service machinery overseas

Color:: Optional

Max Lifting Height:: 47.4m

Max Boom Length:: 31.5m

Max Lifting Moment:: 1175kn/m

Max Traveling Speed:: 37km/h

Max Gradeability:: 105%

Products Description

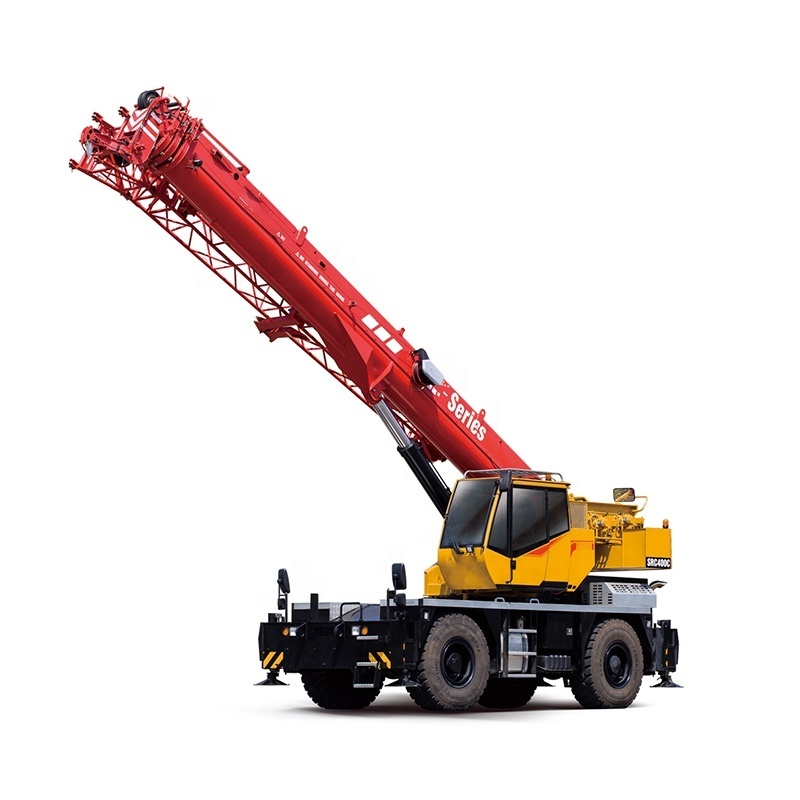

40ton Rough-terrain Crane SRC400C

ENERGY EFFICIENCY

New dual working mode of superstructure and carrier. Dual working mode of engine. Reducing of noise, oil and heat consumption. Top class working speed.

PRECISE CONTROL

Electrical proportional joystick: quick reaction in 5ms, providing smooth operation of start and stop Joystick stroke can be adjusted from 0%-100% such that the loading can be as precise as mm level. Smart flow distribution system, which is initial of flow shunt and confluence method and improved inching motions.

Specification

Model	SRC300C	SRC300CR	SRC400C
Operation
Full Counterweight	2.8T	4.0T	4.0T
Max Lifting Capacity	30T	30T	40T
Max Boom Length	31.5m	31.5m	31.5m
Max Jib Length	13.7m	12.5m	13.7m
Max Lifting Height	46.5m	46m	47.4m
Max Lifting Moment	976kN/m	968kN/m	1175kN/m
Traveling
Available Districts	LHD countries	RHD countries	Outside USA
Engine Model (Emission Standard)	ISDe 270 30 (Stage Ⅲ)	ISDe 270 (Stage Ⅲ)	QSB6.7 (Stage Ⅲ)
Max Gradeability	65%	65%	105% (at stall)%
Max Traveling Speed	46km/h	46km/h	37km/h
Wheel Formula	4 × 4	4 × 4	4 × 4
