Quick Details
-
Application:
-
Mall
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ORIA
-
Model Number:
-
ORIA-F008 outdoor escalator
-
Angle of Inclination:
-
30 - 35 Degree
-
Step width:
-
600/800/1000
-
Rated speed:
-
0.5m/s
-
Balustrade:
-
Tempered Safety Glass 10mm
-
Step Material:
-
Stainless steel/Aluminum alloy
-
Traction Drive:
-
Synchronous Motor
-
Horizontal Step:
-
2 Horizontal Step
-
Cladding:
-
optional
-
motor protection grade:
-
IP21/IP55
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Mall
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ORIA
-
Model Number:
-
ORIA-F008 outdoor escalator
-
Angle of Inclination:
-
30 - 35 Degree
-
Step width:
-
600/800/1000
-
Rated speed:
-
0.5m/s
-
Balustrade:
-
Tempered Safety Glass 10mm
-
Step Material:
-
Stainless steel/Aluminum alloy
-
Traction Drive:
-
Synchronous Motor
-
Horizontal Step:
-
2 Horizontal Step
-
Cladding:
-
optional
-
motor protection grade:
-
IP21/IP55

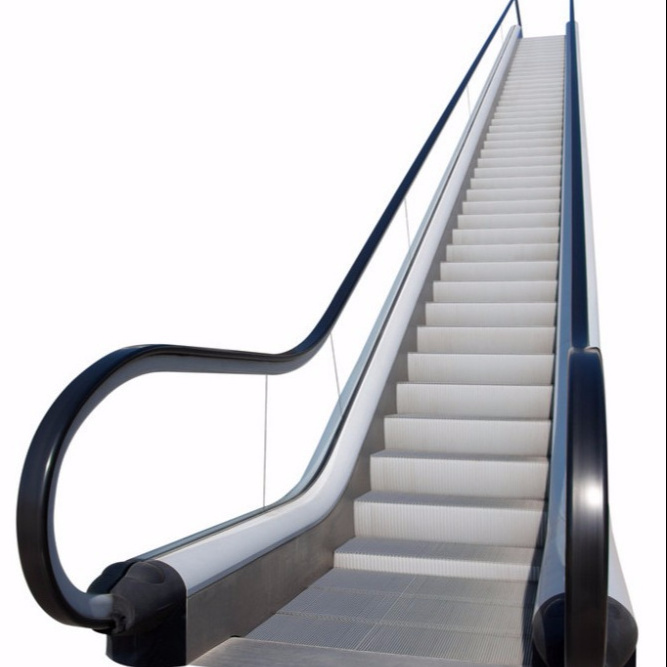

ORIA series escalator products, in accordance with current European standards and Chinese standards, the application of new materials and advanced technology to design, manufacture, combined with a German romantic style, to ensure high-quality products and elegant comfort. There are two angles to choose from, 35 degrees for you to save floor space elevator, escalator 30 degrees to provide you with a better running comfort.
|
Application
|
indoor/outdoor
|
|
Inclination (°)
|
30(35)
|
|
Step width (mm)
|
600/800/1000
|
|
Speed(m/s)
|
0.5
|
|
Main power
|
380V/50Hz/3P/customized
|
|
Balustrade
|
Tempered glass(10mm)
|
|
Handrail bracket
|
Stainless steel
|
|
Handrail
|
Black/customized
|
|
Balustrade height (mm)
|
900
|
|
Inner & outer decking
|
Hairline Stainless steel
|
|
Skirting
|
Wear resistant coating steel sheet
|
|
Step
|
Stainless steel/Aluminium alloy
|
|
Landing plate
|
Stainless steel (anti-sliding)
|
|
illumination
|
lighting under upper & lower landing steps
|
|
Indicator
|
Failure code indicator on control cabinet
|
|
Operation
|
Emergency stop button / Key switch / Inspection operation
|
|
Capacity
|
9000 person/hour
|
ORIA elevator is located in the Yangtze River Delta Economic Zone, a great business town – Zhili, which is near the scenic Tai Lake. The enterprise is near Shanghai, Zhejiang and Anhui G50 highway, G318 and the Grand Canal with convenient transportation. The floor space is more than 25 thousand square meters, and the total output is 5,000 units/ year. With a standardized manufacturing center, a research centers, a remote service center, and a test tower platform, the company develops well.
ORIA comes from our company's value: Original, Rapid, International, and Asian.
CE Certificate
EAC ( CU-TR ) Certificate
ISO9001
Packaging Details: Sea worthing packing,Standard export packing wooden case
Packing in 40HQ container
1. Installation & Maintaining & Technical Support.
The complete documents including Installation manual will be delivered along with the elevator in the container.
Remote technical support is available via email, whatsapp, skype and etc.
If necessary , a techincian will be sent to assist you on the worksite upon your request.
2. Payment Term
3. The Spare Parts & Guaranty
If any parts get damaged due to quality issue within 18 months after B/L date. We will send new replacement once confirmed.
