Quick Details
-
Brand Name:
-
TANYANO
-
Model Number:
-
TYN300W
-
Output Frequency:
-
50/60Hz
-
Size:
-
185*102*58 mm
-
Weight:
-
700g
-
Certificate:
-
CE FCC ROHS
-
Feature:
-
Dual USB
-
Output:
-
AC220-240V
-
Color:
-
Black
-
Output waveform:
-
Modified Sine Wave
-
Efficiency:
-
90.5%
-
Application:
-
Household,car,fan,solar system,communication etc...
-
Operating temperature::
-
-15--50°C
-
Low voltage rage:
-
<9.6v
-
Warranty:
-
1 Year
-
OEM:
-
Accept Customization
Quick Details
-
Output Current:
-
1.4A
-
Customized support:
-
packaging, logo, Shell Color
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TANYANO
-
Model Number:
-
TYN300W
-
Output Frequency:
-
50/60Hz
-
Size:
-
185*102*58 mm
-
Weight:
-
700g
-
Certificate:
-
CE FCC ROHS
-
Feature:
-
Dual USB
-
Output:
-
AC220-240V
-
Color:
-
Black
-
Output waveform:
-
Modified Sine Wave
-
Efficiency:
-
90.5%
-
Application:
-
Household,car,fan,solar system,communication etc...
-
Operating temperature::
-
-15--50°C
-
Low voltage rage:
-
<9.6v
-
Warranty:
-
1 Year
-
OEM:
-
Accept Customization
Technology data
|
Model
|
150W
|
200W
|
300W
|
||
|
Input voltage
|
DC 10-14.8V (DC20-30V)
|
|
|
||
|
Output voltage
|
AC220-240V / AC 100V-120V
|
|
|
||
|
Spike output power(peak)
|
300W
|
400W
|
600W
|
||
|
Output frequency
|
50 + 8Hz / 60+ 3Hz
|
|
|
||
|
Output waveform
|
Modified sine wave
|
|
|
||
|
Efficiency up to
|
90.5%
|
|
|
||
|
Operating temperatures
|
-15°C--50°C
|
|
|
||
|
12V input,No load current
|
<0.35A
|
|
|
||
|
Low voltage range
|
<9.6V (<19.5)
|
|
|
||
|
Over voltage range
|
>15V (>30V)
|
|
|
||
Products Description

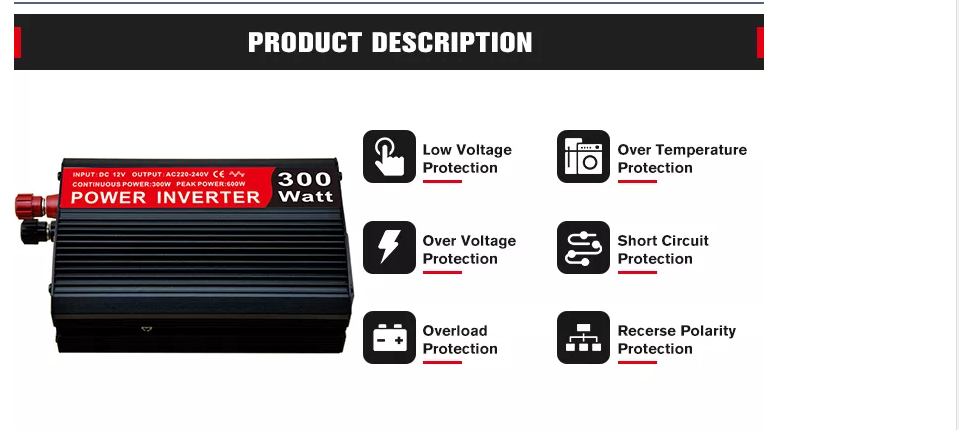

Feature:
1, Apply in car,marine, solar electric power/, motive office, emergency work, outwork.
2, Efficiency up to 90.5%, super surge capacity to start difficult load.
3, Strong adaptable and stable load.
4, Over-current and short circuit by fuse protect
5,Cabinet use and restart safely
6, Low voltage protect.
7, Over-load protect.
8, Smart size, light and compatible, no noisy and no pollution, no maintenance.
300W Solar Energy System Car Power Micro inverter dc/ac Inverter
Operation instruction:

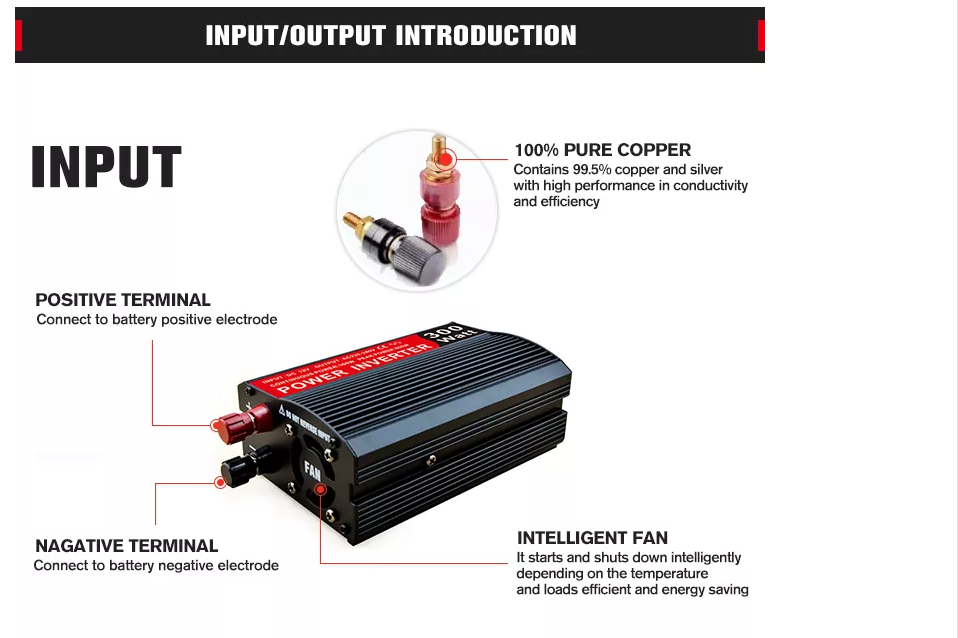

1, Connect this device to car battery, connect the round terminal of red wire/clip to the positive pole of battery, the round
terminal/clip of back wire connect to the negative pole; When get the power from the car battery, plug inverter into the cigar plug of car, connect the round terminal of inverter, the round terminal of black wire to the negative pole.
terminal/clip of back wire connect to the negative pole; When get the power from the car battery, plug inverter into the cigar plug of car, connect the round terminal of inverter, the round terminal of black wire to the negative pole.
2, Screw in the terminal post, but not too tightly.
3, Connect the black clip to the negative pole of battery, connect the red clip to the positive pole. If it is too loosen, will result in no current, wire heat, and damage the power inverter or cause the fire.
4, Turn on the Power inverter, Connect this device with applicant to be used.
5, If you not use, please separate the wire and battery.

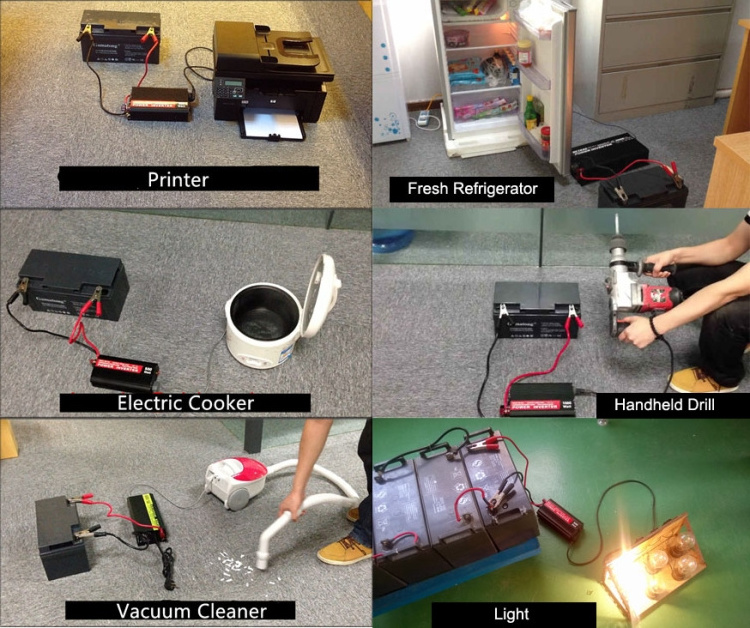

Product Scene Map
Warning:
1, Before use, please confirm the input voltage of inverter is matched to the output of car cigar plug, and confirm the rated
power of applicant within the range. Of power of inverter.
power of applicant within the range. Of power of inverter.
2, When you get the power from car cigar plug, please confirm the load
power is less than 250W, otherwise, the car external wire will burn out because the over-heat.
power is less than 250W, otherwise, the car external wire will burn out because the over-heat.
3, Do not use this device when
engine is off, otherwise, it may damage the battery of the car.
engine is off, otherwise, it may damage the battery of the car.
4, Do not strike the device.
5, Please do not use this device to the place with rain, sun light, herting device, wet and dusy. Otherwise will lead to accident.
6, Please do not dismantle and modify the device.
7, To avoid the electric shock, please do not handle plug of this device or electric device using wet hand.
8, Please do not leave device in the reach of children avoid wound and electric shock.
9, If some abnormal situation happens,please stop using this device immediately to avoid any accident.
9, If some abnormal situation happens,please stop using this device immediately to avoid any accident.
