RFID Reader Module IC Card Reader Module ISO 14443 for Kiosks

RFID Reader Module IC Card Reader Module ISO 14443 for Kiosks

FOB Reference Price: Get Latest Price

≥1 Pieces

US $50

≥100 Pieces

US $47

≥500 Pieces

US $45

≥1000 Pieces

US $43

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Syncotek

NFC:: ISO18092

RFID:: ISO14443A/B

SAM:: ISO7816

Interface:: RS232 or USB

PCSC:: Yes

SAM Slot:: 2 slots

Power supply:: DC 5V±5%

Indicator:: Buzzer and LED

Weight:: 30g

Reading Range:: 50mm

Quick Details

Frequency:: 13.56Mhz

Protocol:: ISO 14443A, ISO18092

Place of Origin:: Guangdong, China

Brand Name:: Syncotek

NFC:: ISO18092

RFID:: ISO14443A/B

SAM:: ISO7816

Interface:: RS232 or USB

PCSC:: Yes

SAM Slot:: 2 slots

Power supply:: DC 5V±5%

Indicator:: Buzzer and LED

Weight:: 30g

Reading Range:: 50mm

RFID Reader Module IC Card Reader Module ISO 14443 for Kiosks

Product Description

What is the overview of RFID Reader Module IC Card Reader Module ISO 14443 for Kiosks?

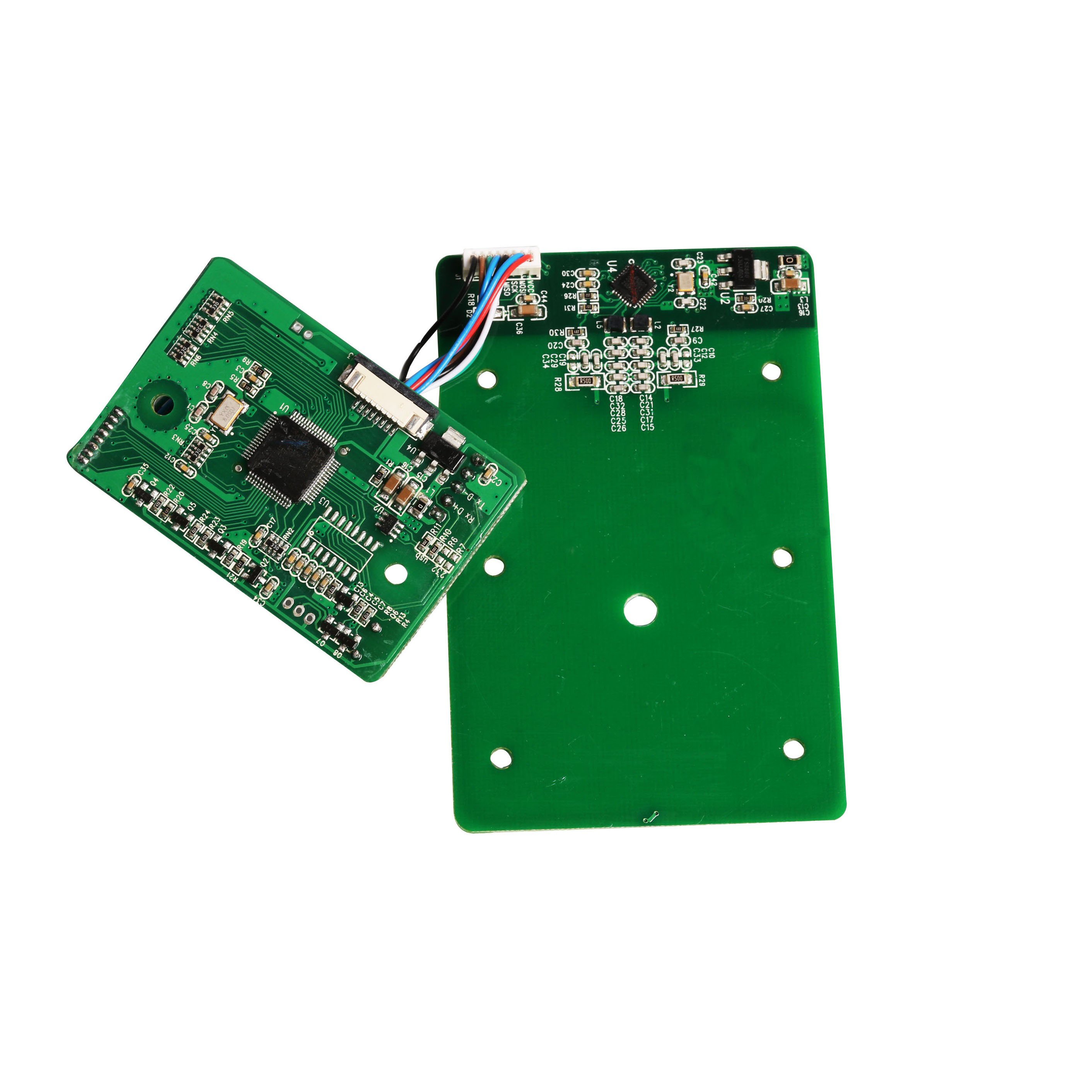

SK-AR2 is a smart RFID contactless card reader module that work for contact SAM card with ISO7816 protocol and contactless card with ISO14443 and ISO18092 protocol. It also supports PC/SC protocol with high data transmit speed. The two SAM card slots make it more secure for contactless usage. With USB online firmware upgrade and high-performance RF IC, it is a cost-effective and powerful all-in-one device that facilitates many smart card applications.

What is the key features of RFID Reader Module IC Card Reader Module ISO 14443 for Kiosks?

1. PC/SC compliant , support contact SAM card, contactless card;

2. CCID compliant;

3. Support ISO14443A and ISO14443B contactless card

4. Support NFC card with ISO18092 protocol;

5. EMV compliant

6. High-efficiency RF chip, long reading distance up to 7cm(CPU card);

7. Support Mifare 1K/4K T=CL simulation function, reading range up to 8cm;

8. 2 SAM slots with additional 2 slots expand, support ISO7816

9. Online firmware upgrade

10. Monophonic buzzer and single-color LED indicator controllable, with 2 LED driver interface.

The Sample Applications of RFID Reader Module IC Card Reader Module ISO 14443 for Kiosks ?

* E-government

* Electronic Banking Electronic Payment

* Electronic healthcare

* Transportation

* Cyber security

What is the specification of RFID Reader Module IC Card Reader Module ISO 14443 for Kiosks?

RFID Reader Module IC Card Reader Module ISO 14443 for Kiosks SK-AR2
Interface	RS232, USB
Working Voltage	DC5V±5%
Quiescent Current	50mA
Max. Working Current	200mA
SAM Life	100 000 times
Working Temp./ Humidity	0°C-50°C/0-90%(no condensation)
Store Temp./ Humidity	-10°C-60°C/0-90%(no condensation)
Net Weight	30g
Cable Length	USB: 1.5m; RS232: 2.5m(with USB power supply)
Card Protocol	ISO7816: Grade A/B/C(5V). ISO14443: Class A/B, support Mifare S50/S70 ISO18092: Support NFC
Reading Range	50mm
Standards/Certifications	PC/SC, CCID, CE, FCC, RoHS, USB full speed
OS Supported	Win 2000, XP, Vista, 7, 8
