- Product Details
- {{item.text}}
Quick Details
-
Light Source:
-
LED
-
Color Rendering Index(Ra):
-
Red, White or Blue
-
Support Dimmer:
-
Yes
-
Lifespan (hours):
-
10000
-
Working Time (hours):
-
>10000
-
Input Voltage(V):
-
9, 12 volt dc
-
Lamp Luminous Flux(lm):
-
32.5cd
-
Lamp Luminous Efficiency(lm/w):
-
2
-
CRI (Ra):
-
2
-
Beam Angle(°):
-
360
-
Place of Origin:
-
Istanbul, Turkey
-
Brand Name:
-
Wetra
-
Voltage:
-
12 volt
-
Intensity:
-
32.5 or 10 cd
-
Color:
-
Red, White or Blue
-
Certification:
-
CE,ICAO
-
Autonomy:
-
4-5 days based on location.
-
Weight:
-
18 kg with panel and battery
-
Standards:
-
ICAO Annex 14
-
Horizontal beam radiation:
-
360
-
Cd emission:
-
+10° and +32.5°
Quick Details
-
Warranty(Year):
-
2-Year
-
Color Temperature(CCT):
-
PURE WHITE
-
Lamp Body Material:
-
Aluminum Alloy
-
Light Source:
-
LED
-
Color Rendering Index(Ra):
-
Red, White or Blue
-
Support Dimmer:
-
Yes
-
Lifespan (hours):
-
10000
-
Working Time (hours):
-
>10000
-
Input Voltage(V):
-
9, 12 volt dc
-
Lamp Luminous Flux(lm):
-
32.5cd
-
Lamp Luminous Efficiency(lm/w):
-
2
-
CRI (Ra):
-
2
-
Beam Angle(°):
-
360
-
Place of Origin:
-
Istanbul, Turkey
-
Brand Name:
-
Wetra
-
Voltage:
-
12 volt
-
Intensity:
-
32.5 or 10 cd
-
Color:
-
Red, White or Blue
-
Certification:
-
CE,ICAO
-
Autonomy:
-
4-5 days based on location.
-
Weight:
-
18 kg with panel and battery
-
Standards:
-
ICAO Annex 14
-
Horizontal beam radiation:
-
360
-
Cd emission:
-
+10° and +32.5°
Products Description

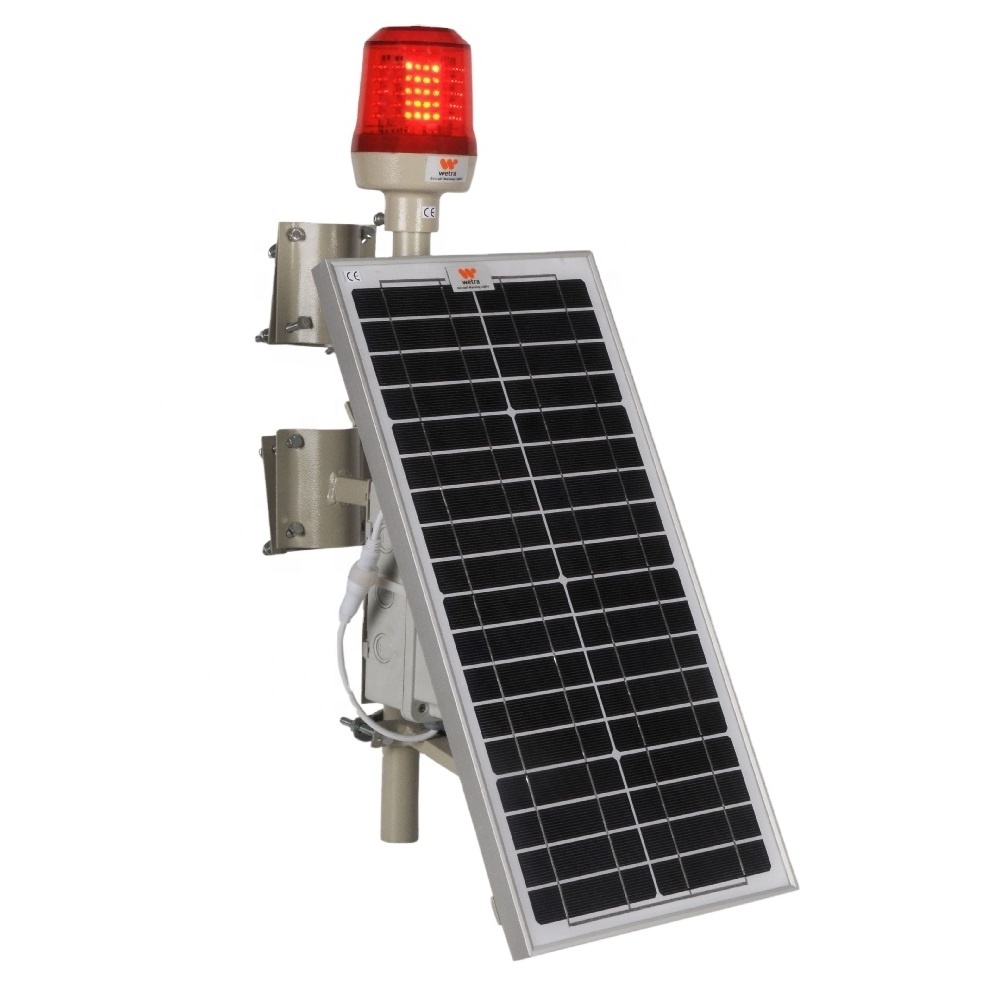

WETRA LED single solar powered aviation obstruction light. Compliance with ICAO
(International Civil Aviation Organization) Annex 14 Type A-Type B, FAA (Federal Aviation Administration) L-810 and SHGM (Turkish Civil Aviation Authority). Multi-LED type single solar powered aircraft warning light, has photocell option, steady or flash burning warning light with colour option.
(International Civil Aviation Organization) Annex 14 Type A-Type B, FAA (Federal Aviation Administration) L-810 and SHGM (Turkish Civil Aviation Authority). Multi-LED type single solar powered aircraft warning light, has photocell option, steady or flash burning warning light with colour option.
Product Specifications
|
KEY FEATURES
|
|
|
|
|||
|
Light Source
|
Based on LED technology
|
|
|
|||
|
Operation Voltage
|
Solar System
|
|
|
|||
|
Body Material
|
Aluminium
|
|
|
|||
|
Light Color
|
Red, Blue, White, Yellow or Green
|
|
|
|||
|
Installation
|
With Bracket
|
|
|
|||
|
Op. Temperature
|
-55⁰C and +55⁰C
|
|
|
|||
|
Candela
|
>32 candela light intensity
|
|
|
|||
|
Life
|
Long life time >10 years
|
|
|
|||
|
ELECTRICAL FEATURES
|
MECHANICAL FEATURES
|
OPTICAL FEATURES
|
OPTIONS
|
INTERNATIONAL REGULATIONS
|
|
Solar power supply
|
Warming, icing and ignition-resistant polycarbonate UV dome
|
360⁰ horizontal beam radiation with special LED technology
|
Single/Twin light (backup light)
|
ICAO Annex 14
|
|
Energy storage capability of feding itself 5 sunless days
|
Aluminium body
|
Vertical beam spread >10⁰
|
Night and day detection with microprocessor or photocell
|
FAA
|
|
LED feeded with constant current
|
Silicon gasket
|
Optical reflector
|
Fault alarm
|
CE
|
|
|
Degree of protection IP 65-66, Nema 4X
|
Cd emission +4⁰ and +8⁰
|
Infrared available
|
TSE
|
|
|
Operation temp. -55⁰C and +55⁰C
|
|
Beacon support bracket
|
|
|
|
Light unit weight 12kg
|
|
|
|
Aplications
TALL BUILDINGS
Tall structures and building either temporary or permanent, which has the potential to endanger aviation in navigable airspace or has the potential to interfere with the operation of navigation, should be lighted.
TELECOMMUNICATION TOWERS
Telecommunications & Radio Towers are, typically, tall structures designed to support antennas for telecommunications and broadcasting, including television. They are among the tallest man-made structures.
CHIMNEYS
A chimney is a typical cylindrical and vertical structure that provides ventilation for hot flue gases or smoke from a boiler, stove, furnace or fireplace to the outside atmosphere, flare stacks lights may be displayed as low as 20 feet (6-m) below the top to avoid effect of deposits.
WIND TURBINES
A single wind turbine or wind turbine farms, which has the potential to endanger aviation in navigable airspace or has the potential to interfere with the operation of navigation, should be lighted.
TOWER CRANES
A crane is a type of tall machine, generally equipped with a hoist rope, wire ropes or chains, and sheaves that can be used both to lift and lower materials and to move them horizontally.
BRIDGES
Bridges and other major projects, which has the potential to endanger aviation in navigable airspace or has the potential to interfere with the operation of navigation, should be lighted.
